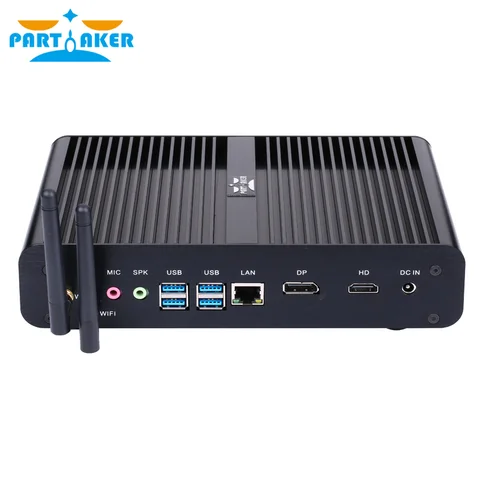

Partaker Fanless Mini Computer i7 7560U 2*DDR4 Ram Msata+M.2 SSD Micro PC Win10 Pro Barebone HTPC Nuc DP HDMI
 |
| Partaker Fanless Mini Computer i7 7560U 2*DDR4 Ram Msata+M.2 SSD Micro PC Win10 Pro Barebone HTPC Nuc DP HDMI |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -22%New User Deal |
| Product id | 33020160412 |
| Vendor | Partaker Small Computer Store |
| Category | Computer & Office - Mini PC |
Description :
4K Fanless Mini PC,Desktop Computers,Windows 10 Pro/Linux Ubuntu,Intel Core I7 7560U/7660U,(Black),[Partaker B13],[DP/HDMI/2LAN/4USB3.0/4USB2.0/Optical/SD Card Reader/WiFi]
- Compact, fully functional,all the power and functionality of a desktop computer in a compact, stylish chassis,powered by intel core i7 7560u/7660u processor, ideal for industrial and commercial applications,work with any brand monitors. suit for multiple application,touch devices, industries, car repair shops, security, education, home as htpc, business, fanancial and projects
- Barebone, Single RAM, Single SSD/HDD without any system.you have to insert RAM and SSD(SSD+HDD) on your own. Hardware could be compatible with all windows/linux distributions
- Fanless passive cooling design:silent solution that’s ultra energy-efficient.the advanced fanless passive cooling design maximizes heat dissipation, meaning all operations can be conducted in absolute silence. business friendly features: 0 noise,low consumption,very slim
- Designed with 2*LAN+ DP+ HDMI+ 4*USB 3.0+ 4*USB2.0+ 1*Optical+ 1*SD Card Reader+ Spk+ Mic,industrial aesthetic design and reasonable interface layout. Support automatically power on after power failure.
- Size at 224*181*49.2mm, 2.5kgs,19v4.74a power supply, with power cord,all use big brand memory and ssd/hdd with quality assurance. Very powerful industrial pc
Model Number: Partaker B13
Color: Black
Material: Aluminum
CPU: Intel Core i7-7560U/7660U Processor (4M Cache, up to 3.80 GHz)
Graphics: Intel Iris Plus Graphics 640
Memory: 2* SO-DIMMDDR4-2133, max. 32GB RAM
Storage: 1* Msata/M.2 SSD+1* 2.5 Inch HDD
Expansion: 1 * MSATA3.0, 6Gb/s; 1 * SATA3.0 , 6Gb/s+ 1* ngff nvme 2280 M.2 SSD, 1 * WiFi module
Audio Cards: 6-channel sound with ALC892 chip
Network Card: RTL8168/8111/8112 PCI-E 10/100/1000 Gigabit Ethernet NIC
WiFi: With dual antennas, 802.11.b/g/n, Built-in module with external antennas for boosting signal
Bluetooth: Optional (Default without this function, please do need to leave us message on the order, thank you)
I/0 Port: 2*LAN+ DP+ HDMI+ 4*USB 3.0+ 4*USB2.0+ 1*Optical+ 1*SD Card Reader+ Spk+ Mic
Power: DC100-240V AC/50-60Hz, DC 19V/4.74A
Operating Temperature: 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature: -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity: 10%~90% (non-condensing)
Mini PC Stand: Yes
Vesa Mount: Optional
Weight: 2.5kgs
Measurement: 224*181*49.2mm
Consumption: 15W
Motherboard Design: Fanless
Function: 1. Support diskless boot
2. Support power-on (Restore AC Power Loss)
3. Support RAID0
Warranty: 3 years
System Support: Windows 7/8/8.1/10,WES7/8,Linux Ubuntu,Vxworks etc;
System Default Option: Windows 10 pro as the default option;
ATTENTION: Barebone, Single RAM, Single SSD or SSD+HDD without any system.
Linux ubuntu or other OS, Do need to leave us message on the order, thank you.
| Key Features | CPU | Onboard Intel Core i7 7660U 2.5GHz Max 4.0GHz (Turbo boost Technology) Dual Core 4 thread, Black color Onboard Intel Core i5 7260U 2.2GHz Max 3.4GHz (Turbo boost Technology) Dual Core 4 thread,Silver color |
| RAM | DDR4-2133/2400/2666MHz support Maximum 32GB RAM | |
| Storage | Support mSATA SSD and 2.5 inch laptop HDD/SSD; can install maximum 1 HDD (2.5 inch) +1 SSD (mSATA 3.0) together | |
| Graphics | Intel Iris Plus Graphics 640 ,support ultra HD 4K resolution | |
| I/O | Mic; Speaker; 4* USB 3.0 port; 4* USB 2.0 port; 2* RJ45 Gigabit LAN Port; 1* DP; 1* HDMI; 1* DC12V In; 1* SD card slot; | |
| Operating System | Windows 7/8/10, Linux Compatible, suggest OpenELEC for less than 16GB SSD, Win7 or Win8 for up to 32GB storage | |
| Language | Multi Language | |
| Feature | Fanless | |
| USB port | 4* USB 3.0+4* USB 2.0 | |
| Wireless | 300MB Wifi with 2 Antennas | |
| HD Output | 1* HDMI port, support 4k output; 1* DP port, support HDMI+DP dual display | |
| LAN port | 2* Gigabit RJ45 port speed up to 1Gbps | |
| Power and Environment | Input | DC100-240V AC/50-60Hz |
| Output | DC 12V~3A/5A | |
| Operating Temperature | 0/70 Centigrade (32F~140F) | |
| Storage Temperature | -20/+85 Centigrade | |
| Relative Humidity | 0%~90% (non-condensing) | |
| Energy-saving | Support Energy-saving technology, Speedstep | |
| 64 bit computing | Support 64 bit computing | |
| Virtualization | Support Virtualization technology | |
| Hyper-threading | Support Hyper-Threading | |
| Consumption | 15W~28W | |
| Physical Properties | Material | Brushed Aluminum Alloy |
| Weight | NW:1.65Kg GW:2.7Kg | |
| Package Content | 1* Mini PC; 1* power adapter; 2* Antennas | |
| Warranty | 30 days free defective replacement and 3 years free repair |
1. According Newest Aliexpress Business Service Agreement informs all products should be showed real price to customs because buyers are responsible for paying tax involved, such as import tax, VAT, etc.
2. Due to the tax problem, buyer refuse to receive the goods, buyer need to responsible for the freight back and forth. Thank you for your cooperation. Any request, leave us message.
3. According to customs rules in Russia, we have to write real price to customs.and buyer have to offer passport information, personal VAT number and link of product to local customs for clearance. Thanks.
4. For German customers, please note that German custom decide to implement the single customs clearance costs for e-commerce goods from Mar.1 2018. Deutsche Post DHL will charge an additional fee of 6 EUR / set (including VAT) for taxable and hospitality tax on incoming mail.
5. For Swedish customer, please note that the Swedish Customs decided to impose VAT on all non-EU e-commerce items (including mail) starting March 1, 2018. The implementation of zero-value-added tax threshold, does not distinguish between the level of value, the recipient VAT. If the value of the goods is less than 150 euros, Sweden Post will charge 7.5 euros for services, more than 150 euros, for 12.5 euros service charges e-commerce items.
6. For Brazil customer, please note that the Brazil Customs decided to charge a fee of 15 reais (about 3.5 US dollars) per order for all international parcels handled by the customs from August 27, local time.You have to pay it within 30 days, otherwise the package will be returned or destroyed. For that, we wont do money refund.
7. To European union(28 counties) we have XINNUO or YUNTU shipping which will pre-paid taxes in our side which means no need pay taxes when goods received, the delivery time need 8-15 days to GB, France, Italy, Spain, Germany etc.Contact us if you need this service.
1. We prefer payment through ESCROW which is security way for you.
2. Pls make sure the shipping address, zip code and tel-number are correct before payment.
3. The buyers are responsible for all additional custom fees, brokerage fees, duties and taxes for importation into your country.
4. We also can accept the payment by Paypal if you think Paypal is convenient for you to order. But now only can ship to USA, UK, Italy, Spain, France, Germany.
5. Welcome to contact us by chat tool directly or leave a message if you order in bulk.
6. Refund will be done by Paypal.
1. All items will be double checked and well packed and they will be dispatched within 5 business days when order is paid.
2. Normally we ship package by DHL, it will take about 3~7 working days to most of countries, door to door.
3. If you address is a remote area by DHL, if you do not add remote area shipping fee, we will arrange shipment by our methods, hope you can kindly understand it, thanks.
4. e-EMS: it is for Russia and some other countries.
5.If you choose the shipping way is air post mail , it normally takes 30-90 days without tracking information , pls noticed. It's better to choose EMS or DHL , more faster and safe .
6. If you don't get the package in normal time, please contact us kindly, we will do our best to assist you.
7. If you don't accept above terms, pls do not buy it, thanks.
1. We provide 1-3 year warranty period, repair or replace for free; the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first. We will try our best to deal with the issue for you or you can exchange or return the item in one week.
3. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed.
4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product. Thanks.
5. If the product break down, please contact us.
1. We maintain high standards of excellence and strive for 100% customer satisfaction!
2. If you are satisfied with them, please lease 5 star positive feedback
3. Negative feedback or low DSR does no resolve any underlying issues. If you have a problem, please contact us via email firstly and give us the opportunity to reasonably rectify in a reasonable amount of time. We will try to respond ASAP, and we are always willing to work things out.
4. For some uncontrollable factors, the item may be damaged during shipping. If you receive a broken item, please contact us first, we will investigate and replace, if you have any other questions please email us. we will respond within 24 hours or less.
Check This Video Reviews Partaker Fanless Mini Computer i7 7560U 2*DDR4 Ram Msata+M.2 SSD Micro PC Win10 Pro Barebone HTPC...
Check This Video Reviews Partaker Fanless Mini Computer i7 7560U 2*DDR4 Ram Msata+M.2 SSD Micro PC Win10 Pro Barebone HTPC...
Best Price Comparison With Partaker Fanless Mini Computer i7 7560U 2*DDR4 Ram Msata+M.2 SSD Micro PC Win10 Pro Barebone HTPC Nuc DP HDMI
Partaker Fanless Mini Computer i7 8565U/7560U i5 8250U/7260U 2*DDR4 Msata+M.2 SSD Micro PC Win10 Pro Barebone HTPC Nuc VGA HDMI
Buy Now On Aliexpress

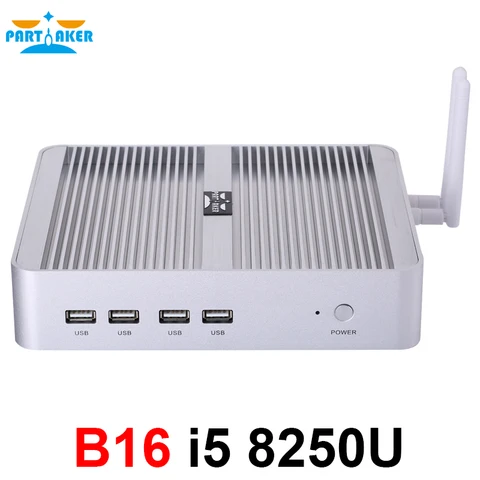

Partaker B16 DDR4 Fanless Mini PC Intel Core i5 8250U i7 8550U 32GB RAM 512GB SSD windows 10 Quad Core mini pc HDMI UHD graphics
Buy Now On Aliexpress
Partaker Pfsense Mini PC 7th Gen Kaby Lake Intel i5 7200u 2.5GHz Dual Core fanless case 6 lan mini server pc support AES-NI
Buy Now On Aliexpress
Partaker Industrial Fanless i5 i7 minipc Core i5 8250U i7 8565U 1*Lan 2*COM Mini PC Windows 10 Linux Mini Computer Desktop 7*USB
Buy Now On Aliexpress
Partaker Top Gaming Computer Intel core i9 8950HK 6 Core 12 Threads 12M Cache 14nm Nuc Mini PC Win10 Pro HDMI AC WiFi BT DDR4
Buy Now On Aliexpress
MINI_ITX Industrial embedded motherboard ITX_M61 support LGA1155 Intel Core i3/i5/i7 Pentium 22nm/32nm CPU with 9*USB/6*COM
Buy Now On Aliexpress
Intel core i7 gen 7th 7560U Mini PC Windows 10 HDMI DP 4K HTPC Desktop Computer with 4k HD Micro PC Intel Graphics
Buy Now On Aliexpress

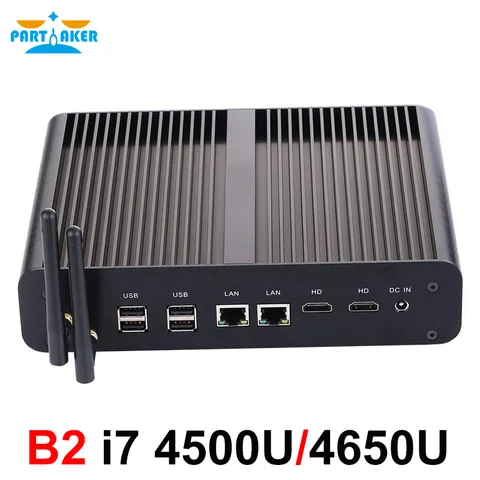

Windows Mini pc i7 4650u i7 4500u Barebone HTPC Intel Nuc Fanless Computer Haswell Graphics HD 5000 300M Wifi
