2020 Newest Industrial Computer Intel Core i5 8250U i7 6567U DDR4 Desktop Mini PC 4 RS232/422/485 COM Win10 LP LPT GPIO PS/2
 |
| 2020 Newest Industrial Computer Intel Core i5 8250U i7 6567U DDR4 Desktop Mini PC 4 RS232/422/485 COM Win10 LP LPT GPIO PS/2 |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -33% |
| Product id | 4000789938176 |
| Vendor | MiniComputer Factory Store |
| Category | Computer & Office - Mini PC |
Description :

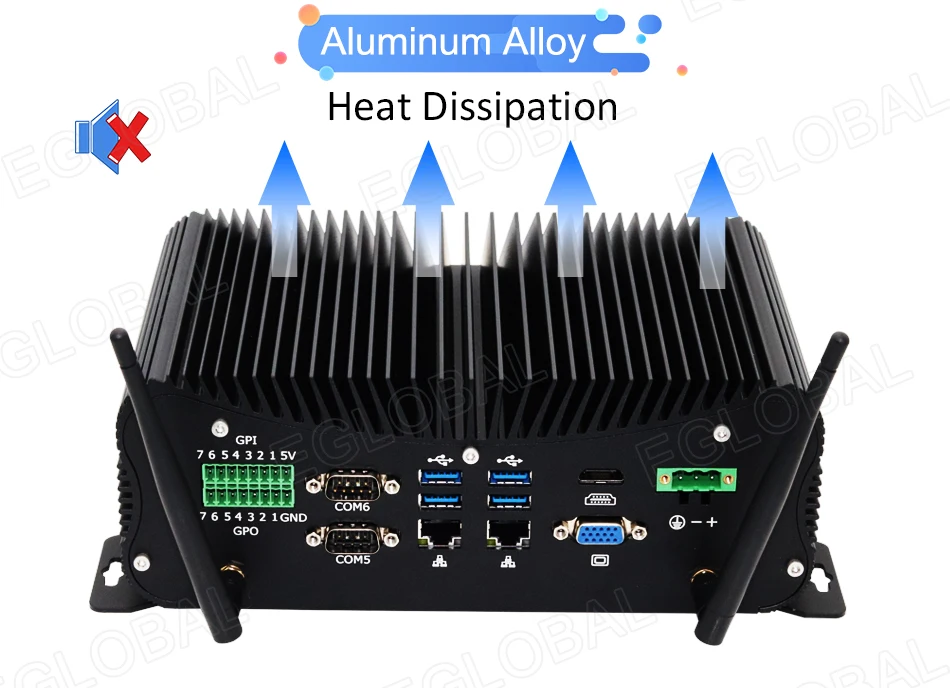

- Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipation, fit for industrial grade field, work as long as 24 hours.
- High-end Industrial PC less than 1% defective rate, super long lifetime and 3 years warranty.

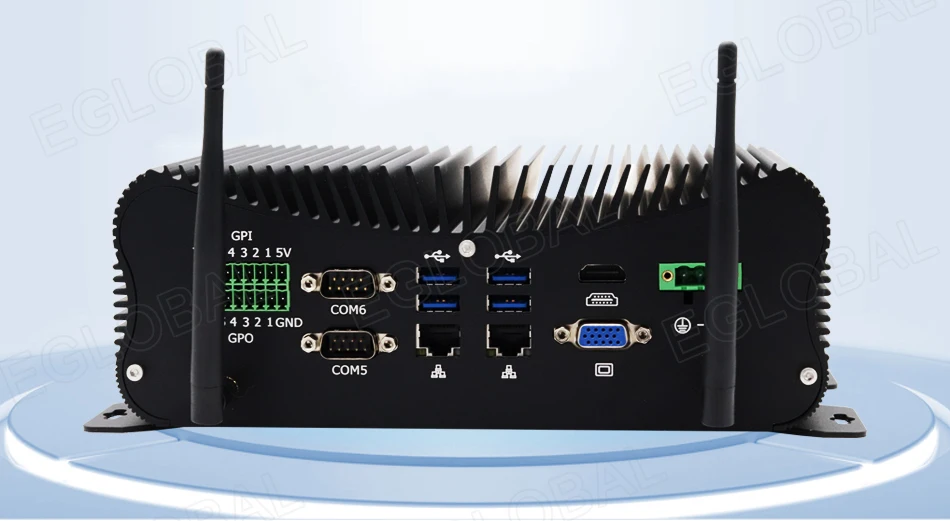

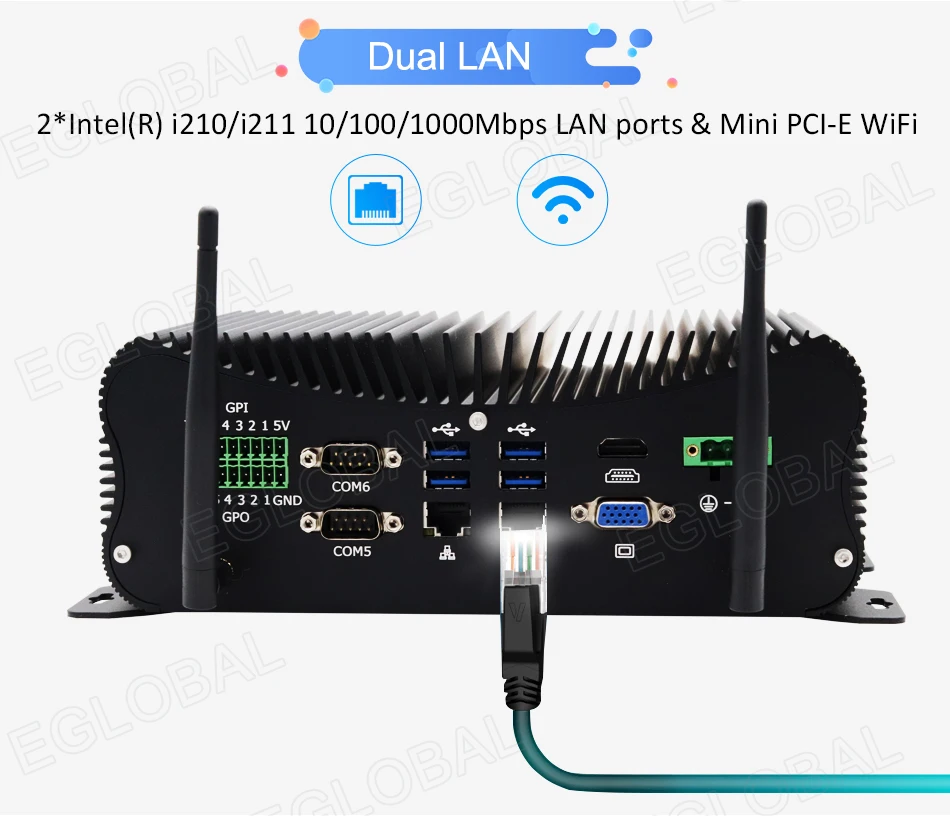

- 2 Intel i201/i211 Gigabit RJ45 LANs, 6 DB9 COM, 4 COM support RS422/RS485, PS/2, GPIO and LPT rich interfaces for different equipments.

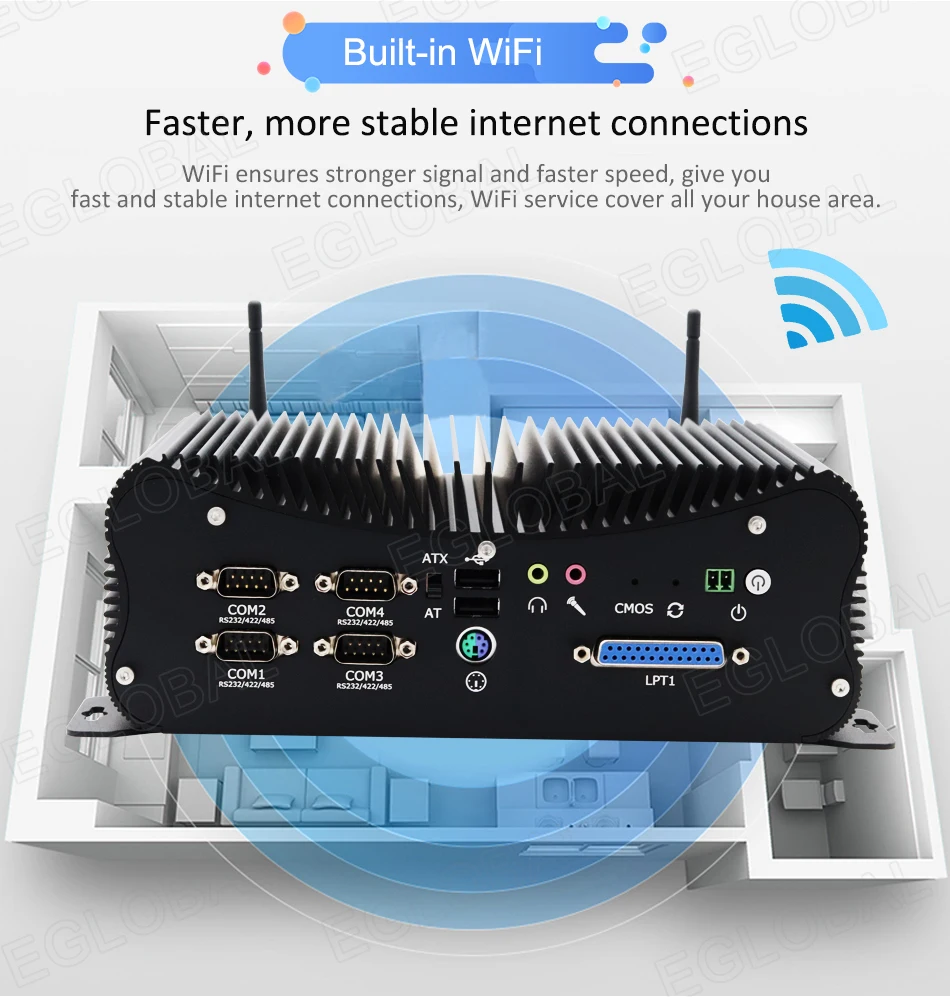

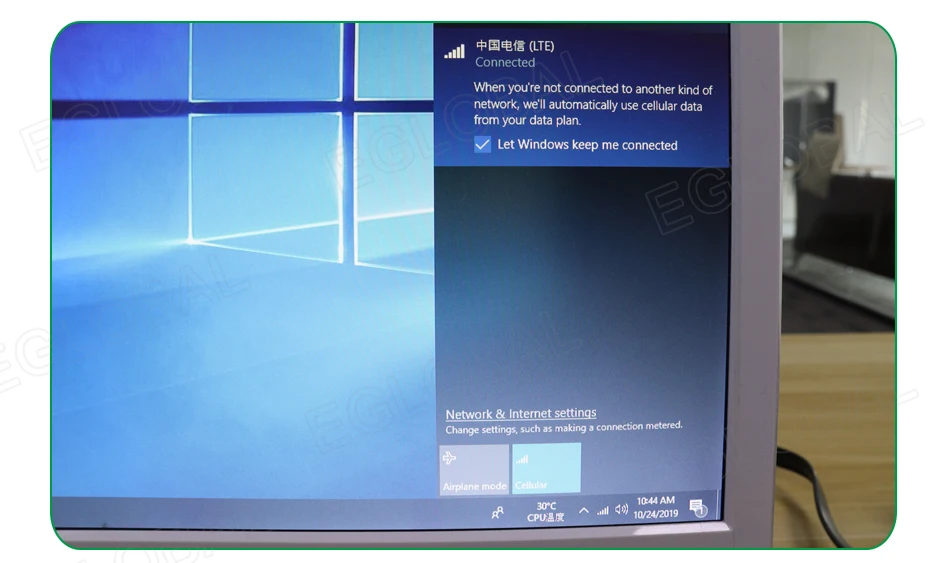

- One embedded SIM card slot onboard for 3G/4G Wi-Fi module.

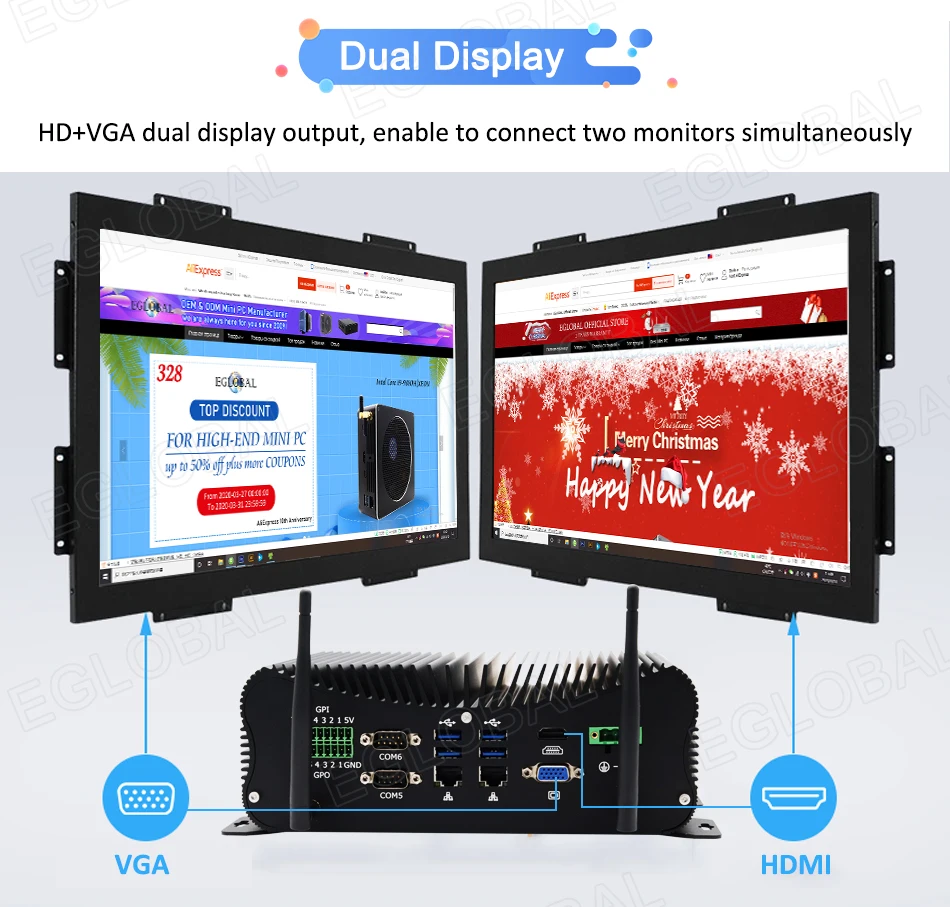

- Support VGA + HDMI dual display output synchronously.

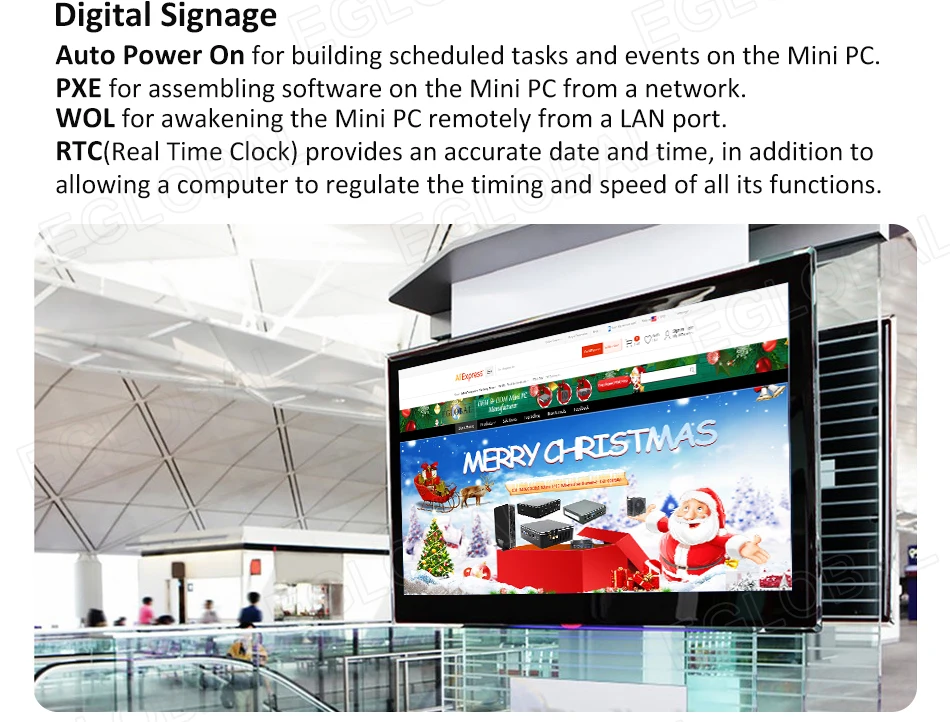

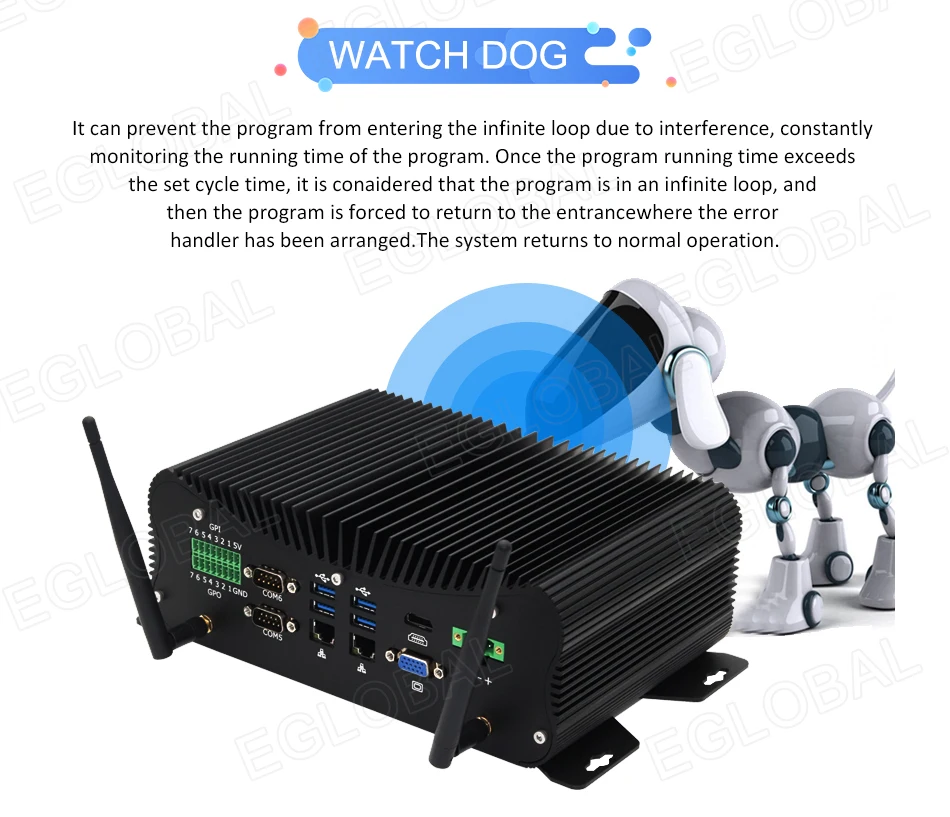

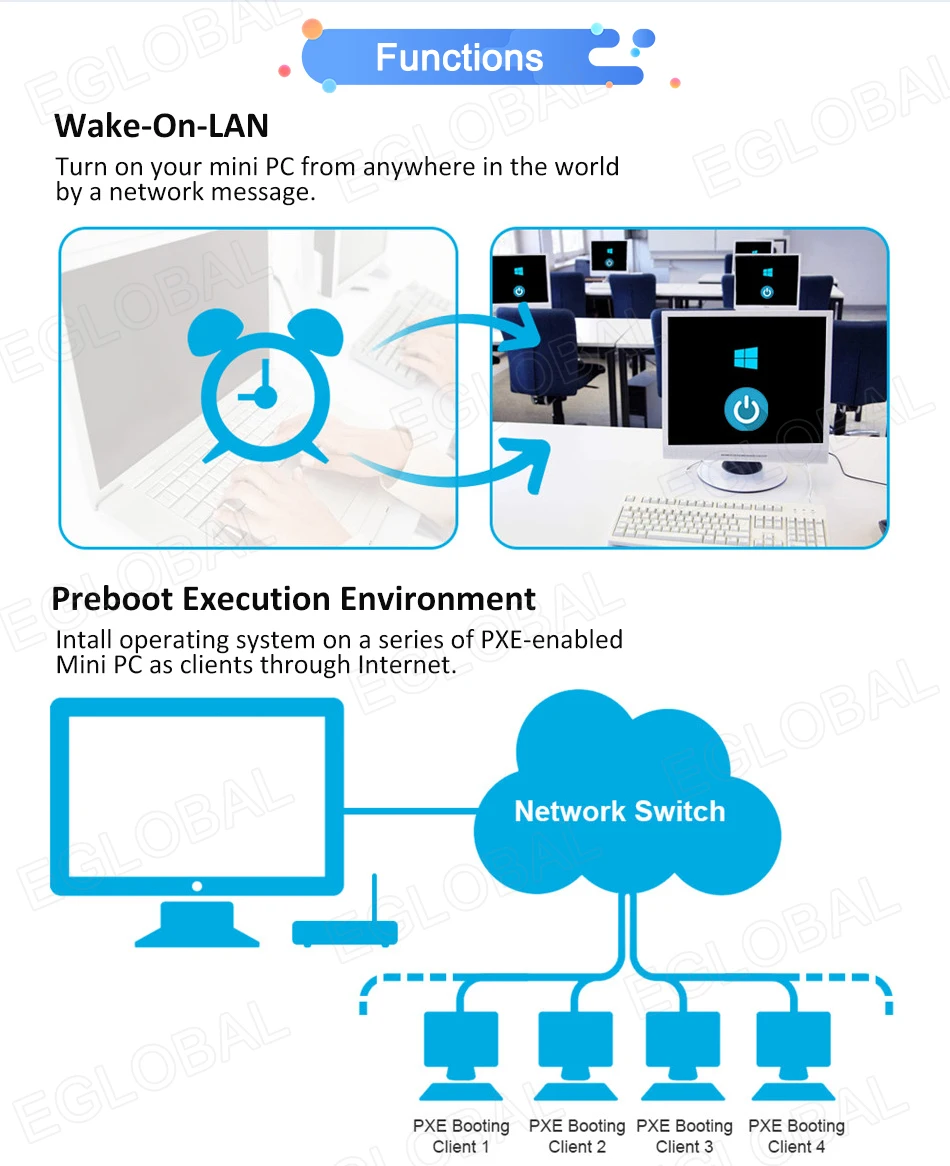

- Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.
Basic Information:
CPU
Onboard Intel 6th/7th/8th Gen Core i3/i5/i7 CPU Optional(can be customized in bulk)
1. Onboard Intel SKYLAKE 14nm CPU Intel Core i5-6360U 2.0GHz Max 3.1GHz Dual Cores Four Threads 4MB cache TDP 15W Intel® Iris® Graphics 540.
2. Onboard Intel SKYLAKE 14nm CPU Intel Core i7-6567U 3.3GHz Max 3.6GHz Dual Cores Four Threads 4MB cache TDP 28W Intel® Iris® Graphics 550.
3.Intel KABYLAKE 14nm CPU Intel Core i5-8250U 1.6GHz Max 3.4GHz Quad Core Eight Threads 6MB cache TDP 15W Intel® UHD Graphics 620.
TDP
Refer to CPU
BIOS
American Megatrends Inc.
Chipset
Refer to CPU
Memory
2 x SO-DIMM DDR4 Slot
Support 4GB/8GB/16GB/32GB

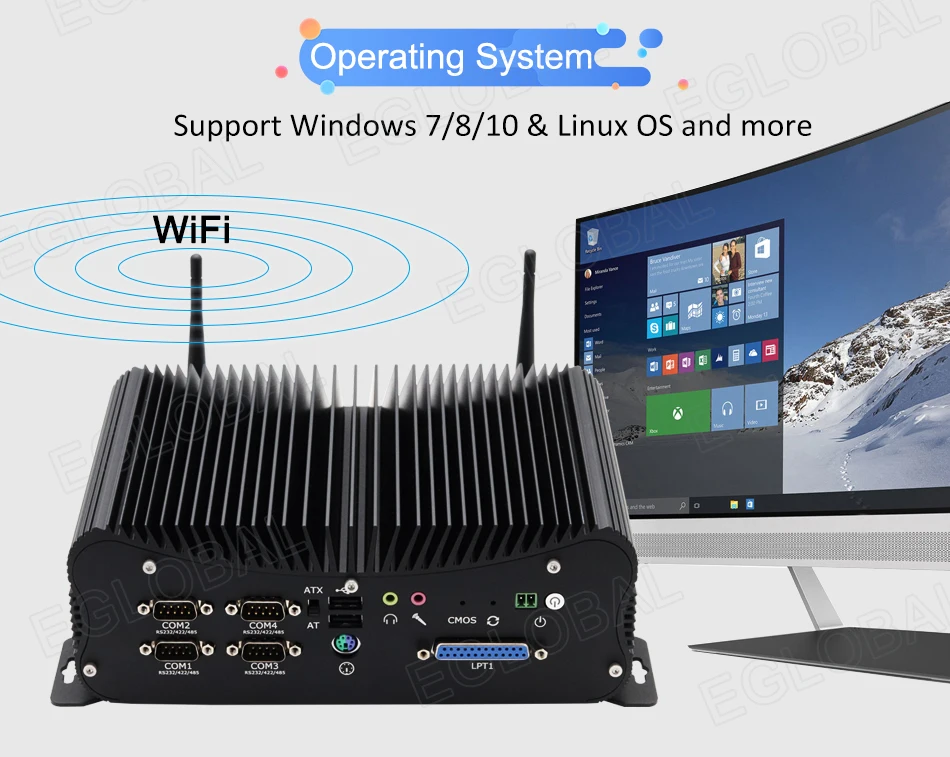

OS
Windows 7/Windows 8/Windows 10/Linux, WES7/10
PXE
YES
Audio
Intel High Definition Audio Controller
Network
Intel(R) i210/i211 Gigabit Network Connection
10/100Mbps/1000Mbps BaseT LAN
Video
Refer to CPU

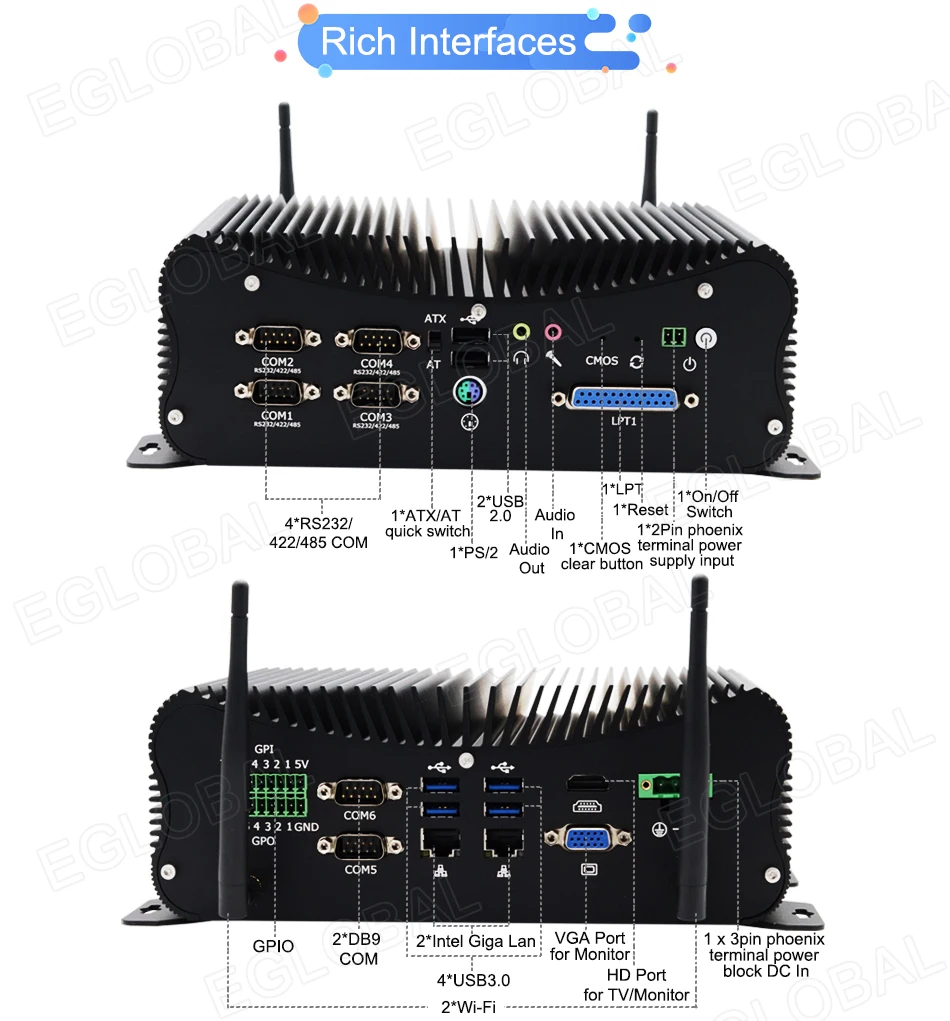

Input/output port
Switch
1 x Power On/Off Switch
Power
1 x 3pin phoenix terminal power supply input, support 9~36V
Button
1 x DIP Switch, support ATX/AT boot mode
USB
4 x USB3.0, 2 x USB2.0
PS/2
1 x PS/2(keyboard and mouse 2 in 1)
Display
1 x VGA, 1 x HDMI
LAN
2 x Intel GbE RJ45 LAN
COM

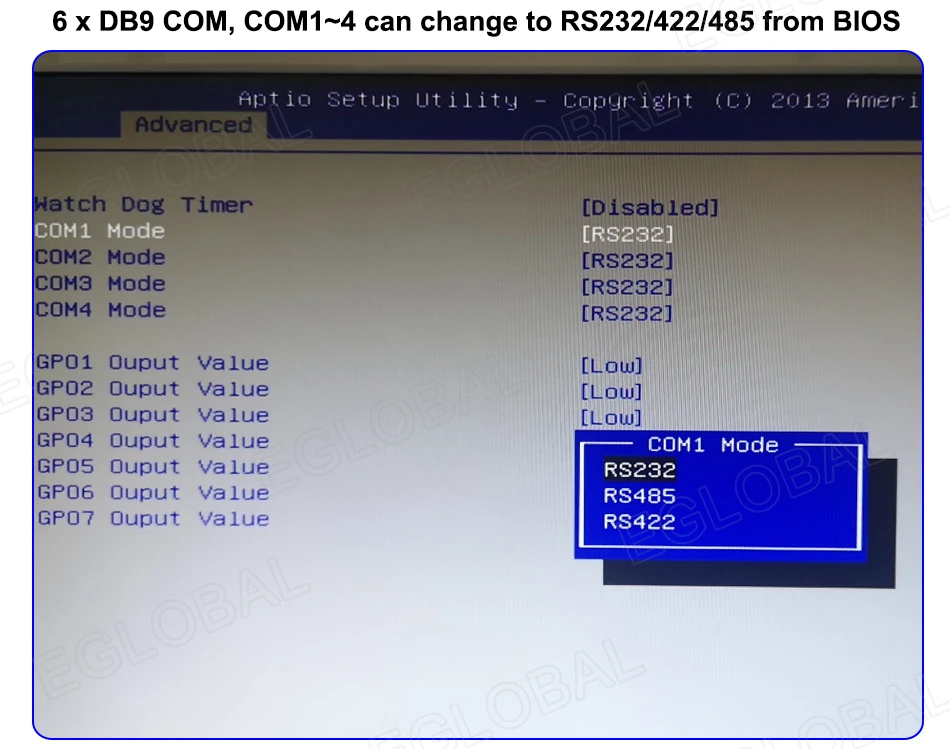

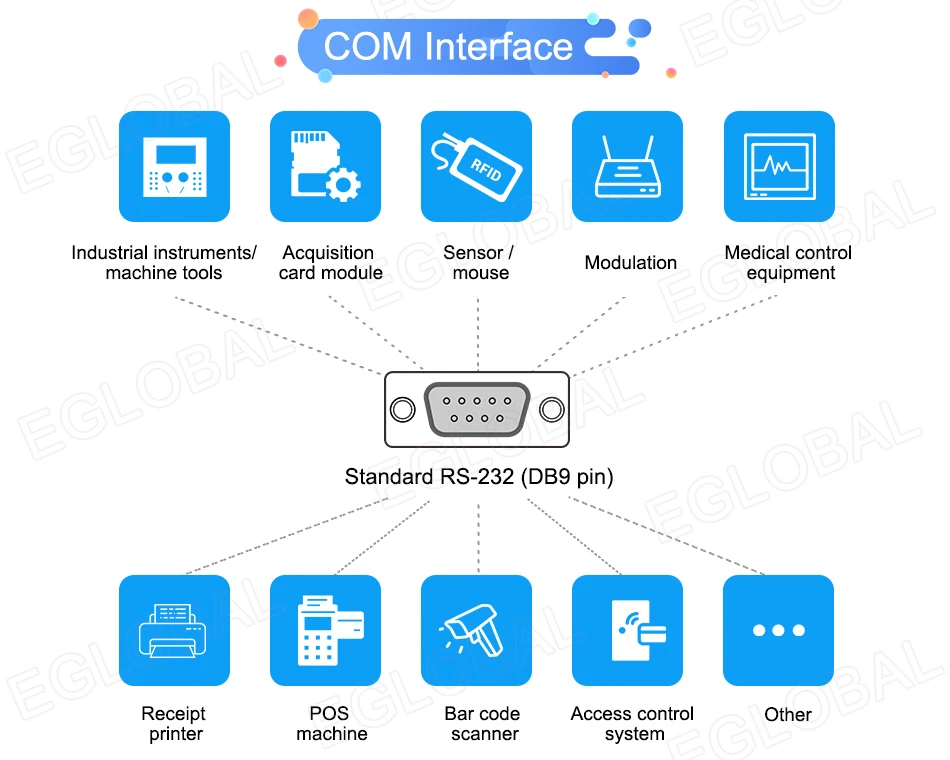

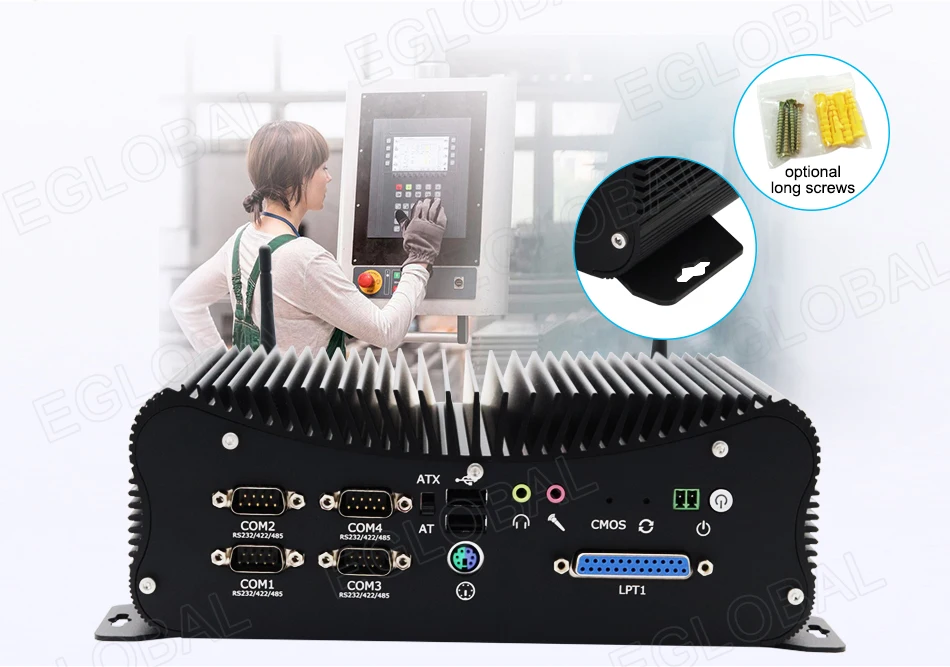

6 x DB9 COM(4xCOM support RS422/RS485)
GPIO
1 x GPIO( 7pin input, 7pin output)
LPT

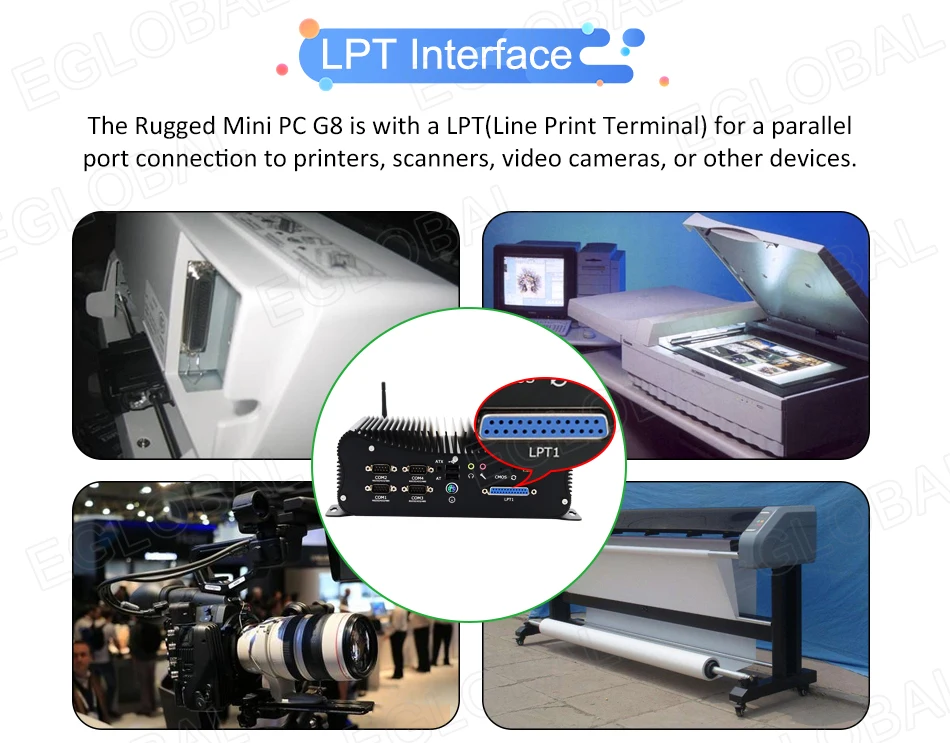

1 x LPT
Audio
1 x MIC, 1 x SPK
SIM
1 x embedded SIM card slot onboard
Others
1 x Reset, 1 x CMOS clear button, 1 x 2pin Phoenix terminal power supply input

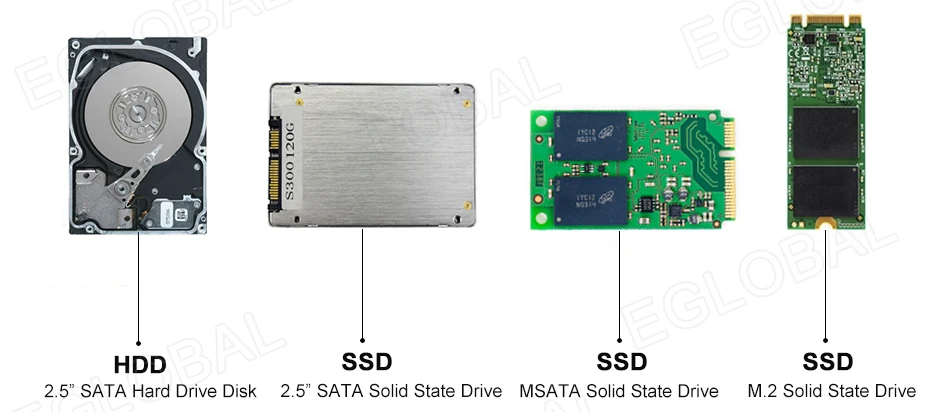

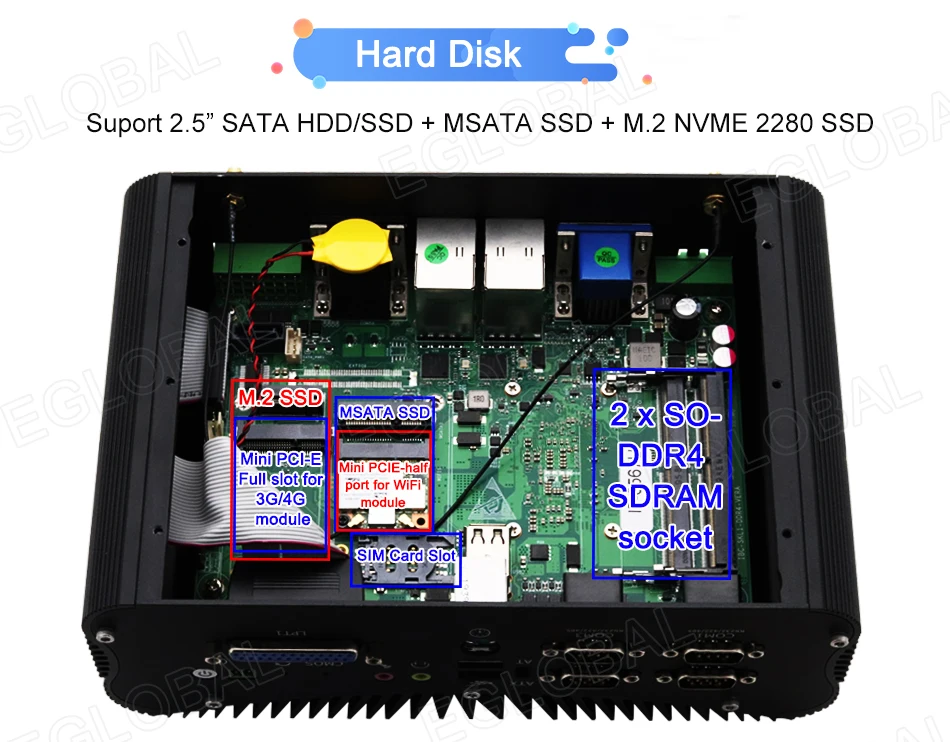

Storage
MSATA
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
1 x M.2 slot for NVME 2280 SSD, support 6Gb/s
SATA
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module
1 x mini PCIE-half port for Wi-Fi/Bluetooth module
1 x mini PCIE-full port for 3G/4G/Wi-Fi/Bluetooth module
1 x Extended IO, support LPC, USB, PCIE
Antenna
2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input
DC100-240V AC/50-60Hz
Output
DC +9V~+36V, recommend 12V/5A
Operating Temperature
-20/+60Centigrade
Storage Temperature
-30/+70 Centigrade
Storage Humidity
10%~90%@30 Centigrade (non-condensing)

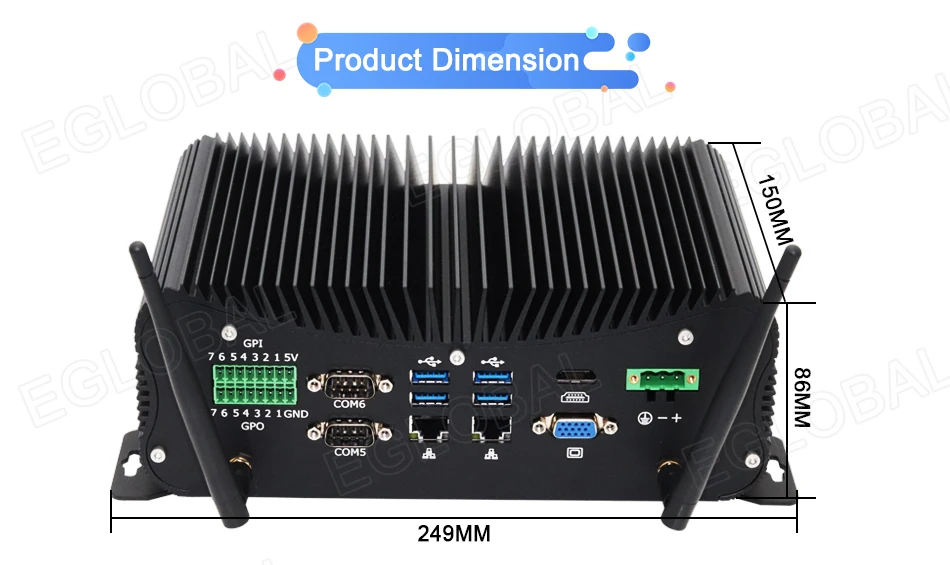

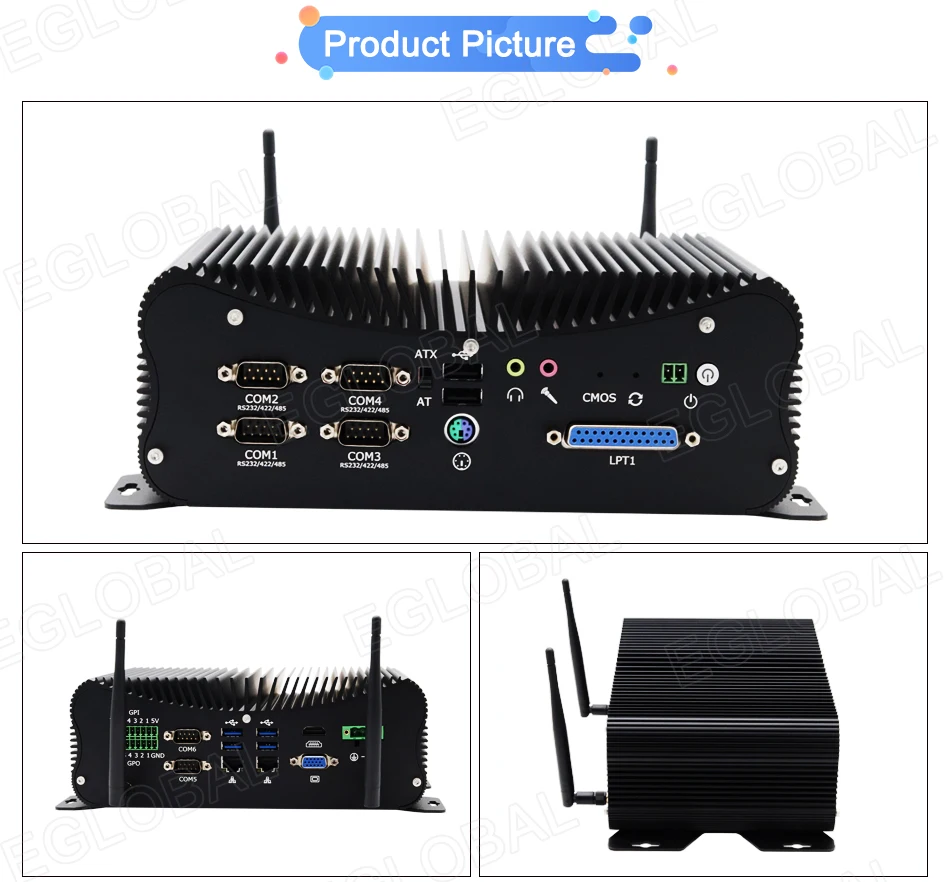

Product Dimension & Details
Size

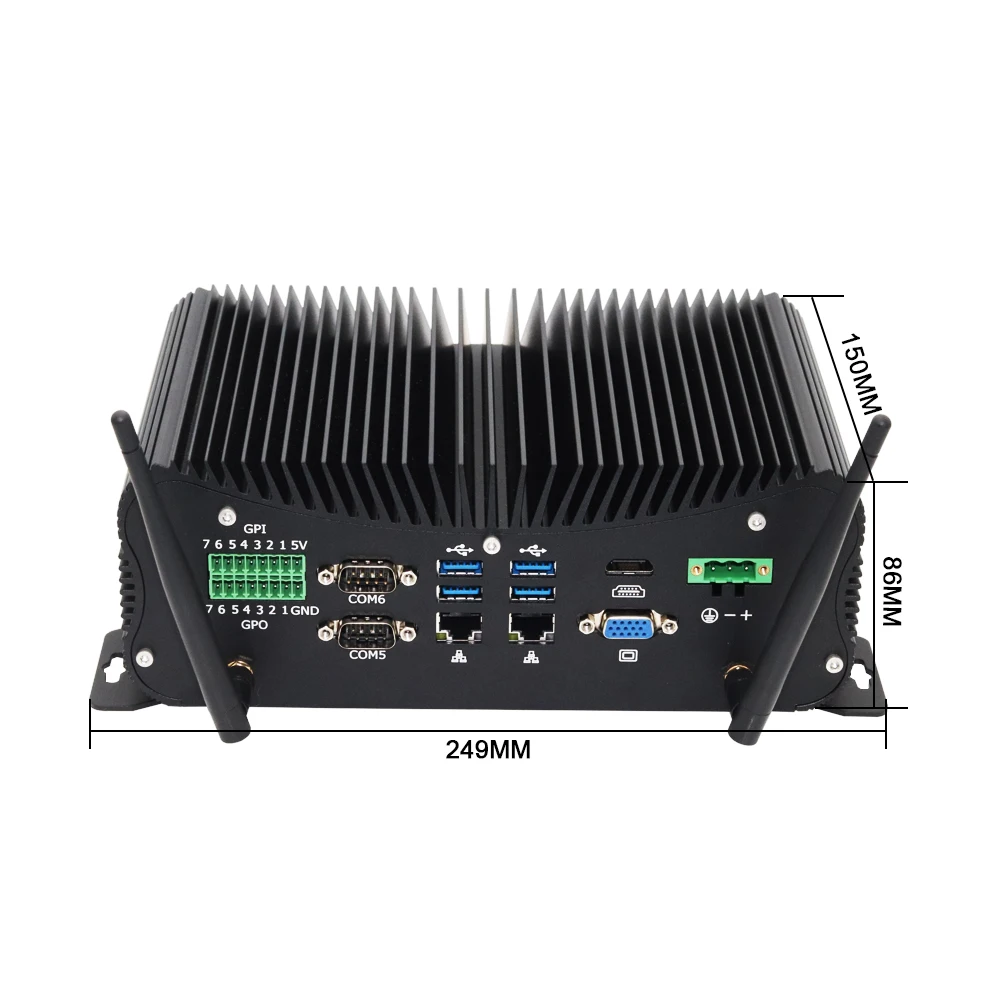

249*150*86mm
Weight
NW 2.2KG, GW 3.5KG
Shell

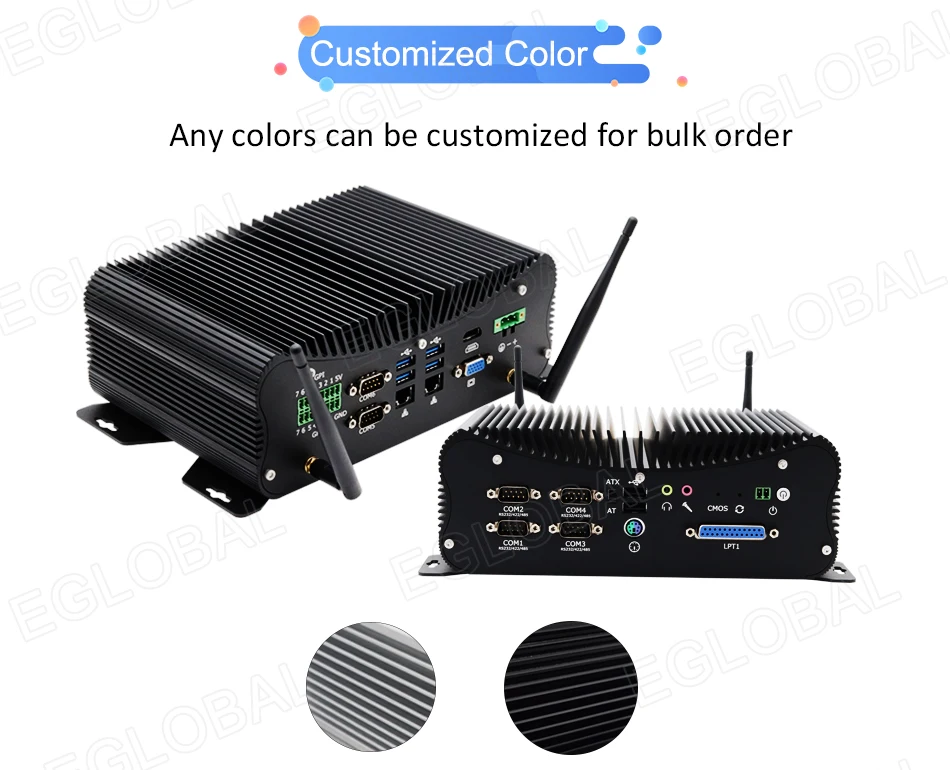

Black color aluminum alloy(any customized color for bulk order)

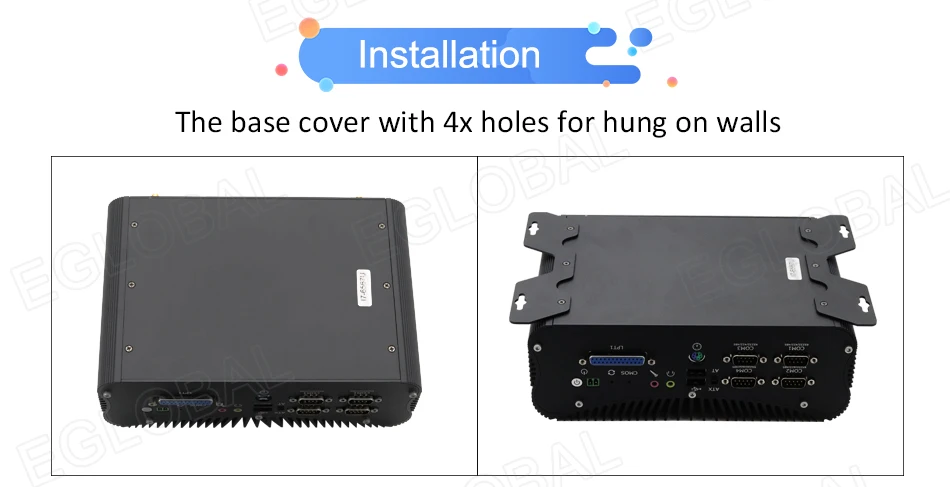

Mounting
4 mounting holes on case
Cooling Mode
Fanless
Functions
Watchdog, One key reset, AWAL, RTC, WOL(ATX mode)

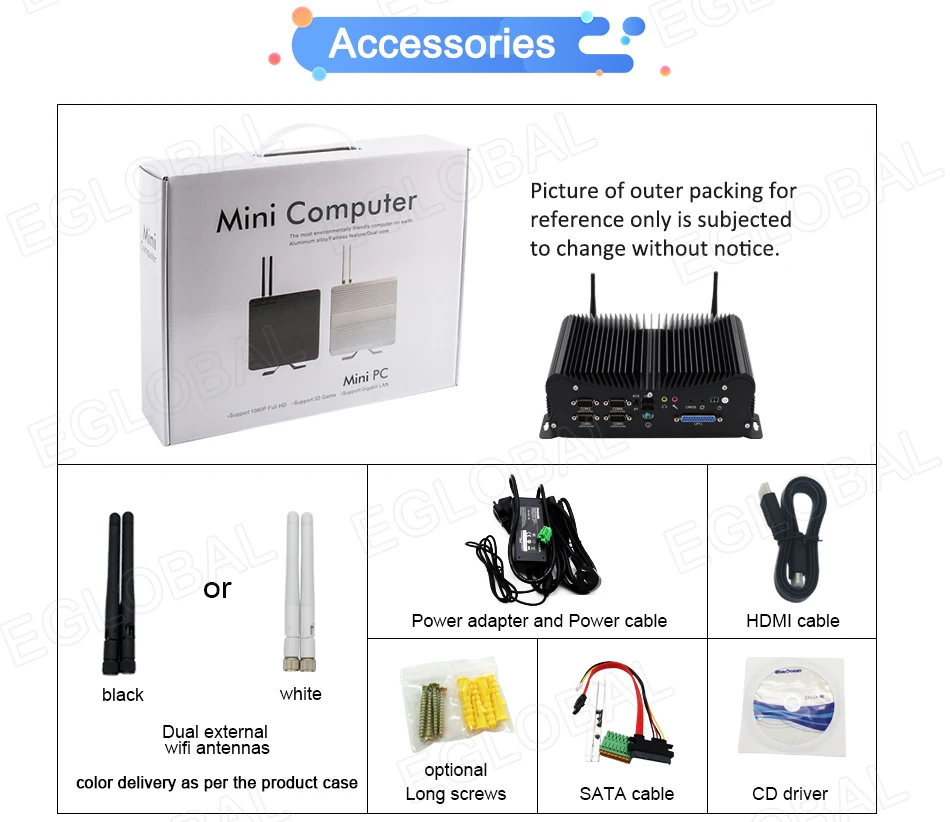

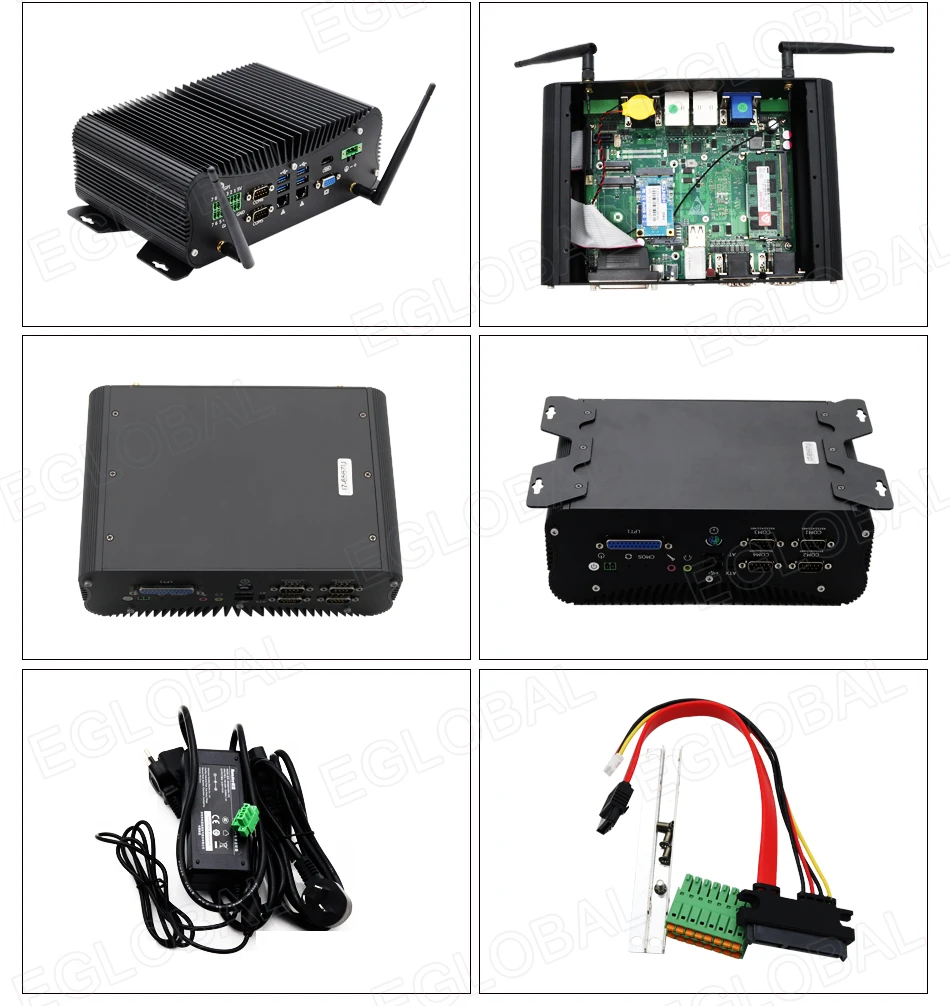

Package Content
Standard
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
Buy with confidence! 3 Years long warranty!
Tips:
DO NOT buy "no ram no storage" bundle if you are not Computer Expert, PC had best to use Samsung, SKhynix, Micron etc original brand accessories, We DO NOT compensate for buyer's own ram and hard drive.
1.Barebone mini PC (No RAM No storage) package DO NOT include WiFi, if you need, please pay extra US $7 at below link.
2.USB Infrared remote (can turn power off but not on) add extra cost US$14.
3. Bluetooth4.0 USB Dongle add extra cost US$5.
4. External USB DVD-ROM add extra cost $18, External USB Bluray DVD-ROM add extra cost $45.
5. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.
6. Genuine OEM windows license sticker add extra cost 35$.
7. 500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.
Upgrading link:https://www.aliexpress.com/item/4000102460955.html?spm=2114.12010614.8148356.1.af672e0but9LRg
https://www.aliexpress.com/item/4000102460955.html?spm=2114.12010614.8148356.1.3cc92e0bT7Ofr6
(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you upgrade for...)
Systerms: 1.We can pre-installed well the OEM Windows OS for u before shipment, if u order the Mini PC bundle with RAM and SSD, please kindly leave us message which os u want to install . English version is for free, other languages can be selected amount Russian, Spanish, Portuguese, French, German, Arabic, Italian, Japanese, Turkish, Greek etc, Please inform us which language u want to install. Other systems we can install for free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if u need, seller is not responsible and make no compensation for OEM system. If you want activate the window OS by youself ,please leave a message.
2.Accessories as Ram, SSD, HDD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison etc , What brand we use depends on our test and our stock. What brand we use depends on our test and our stock. Generally we use Msata SSD installed on Mpcie port and leave the SATA port blank for you to install 2.5'' SSD/HDD. The bundles is not including the HDD, if u need HDD, please talk with us online to discuss, we will quote u best seperately price for it.
About TAX
3.About customs, We are not responsible for buyer's customs any storage costs, brokerage, taxes or VAT etc fees. But we try our best to help buyer lower or avoid customs duties, if u need to write a real invoice value, please donot forget to leave us message, otherwise we will write about 100USD per unit.
About Shipping
Normally we will provide free shipping by DHL, but we will also send by the other carriers for free shipping in different cases, they are UPS/EMS/Fedex /china post etc.
Case 1: Your shipping area is remote location for DHL. You could find out if your area is remote area or not on DHL the website: raslist.dhl.com/jsp/first.jsp
Case 2: DHL is not allowed to use in your area. Like Russia, Brazil, Argentina.
Case 3: Good news for customers from Russia Belarus Ukraine Brazil etc countries, we choose eEMS(EMS upraded version) to ship parcel by default, safe, fast, with better ability of customs clearance. Delivery within about 5-10 working days by eEMS.
Except all of 3 cases, If your address is remote area for us , you should add extra shipping fees for DHL/ UPS/EMS/Fedex etc, otherwise we will choose post mail shipping for free.
Free Shipping Details:
1.The following countries by DHL free shipping:
Israel, America, Belgium, the Netherlands, Luxembourg, Italy, Germany, Britain, France, SAN marino, Austria, Denmark, Finland, Portugal, Sweden, Switzerland, Spain, Greece, Norway, Bulgaria, Cyprus, Estonia, Latvia, Lithuania, Malta, Slovakia, Slovenia, The Czech republic, Hungary, Poland, Romania etc.
2. Free shipping e-EMS or Fedex to Japan and South Korea.
3. Free shipping Post Service to other countries.
About Warranty
