Partaker DDR4 Pfsense Mini PC 7th Gen Kaby Lake Intel i5 7200u 2.5GHz Dual Core Fanless Mini Server PC support AES-NI
 |
| Partaker DDR4 Pfsense Mini PC 7th Gen Kaby Lake Intel i5 7200u 2.5GHz Dual Core Fanless Mini Server PC support AES-NI |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -22%New User Deal |
| Product id | 32882035871 |
| Vendor | INCTEL Technology Co.,Limited |
| Category | Computer & Office - Mini PC |
Description :
Processor has 3 options suitable for the same motherboard:
1. Kaby Lake 14nm CPU Intel Celeron 3865U 2 cores 2 threads 1.8GHz 2MB cache TDP 15W Intel HD Graphics 610.
2. Kaby Lake 14nm CPU Intel Core i3 7100U 2 cores 4 threads 2.4Ghz 3MB cache TDP 15W Intel HD Graphics 620.
3. Kaby Lake 14nm CPU Intel Core i5 7200U 2 cores 4 threads 2.5Ghz 3MB cache TDP 15W Intel HD Graphics 620.
This link for Intel Core i5 7200U, if need 3865U ,please click here, if need i3 7100u, please click here
- Intel Dual Core i5 7200U, 64 bit, up to 3.1GHz, 3MB Smart Cache, Intel AES-NI hardware support
- 6x Intel Gigabit Ethernet NIC ports
- Barebones for maximum customizability (no RAM or mSATA)
- 4x USB 3.0, 1x RJ-45 COM, 1x HDMI
- Solid State, Fanless Silent Operation, Compatible with many Open Source Software distributions
1. This computer only works with Ram at DDR4.
2. Barebone system means no ram no storage, and we won't install OS to you .
3. The Operating System is just for testing, copied but NOT activated and not licensed, please install the licensed one by yourself if you prefer.

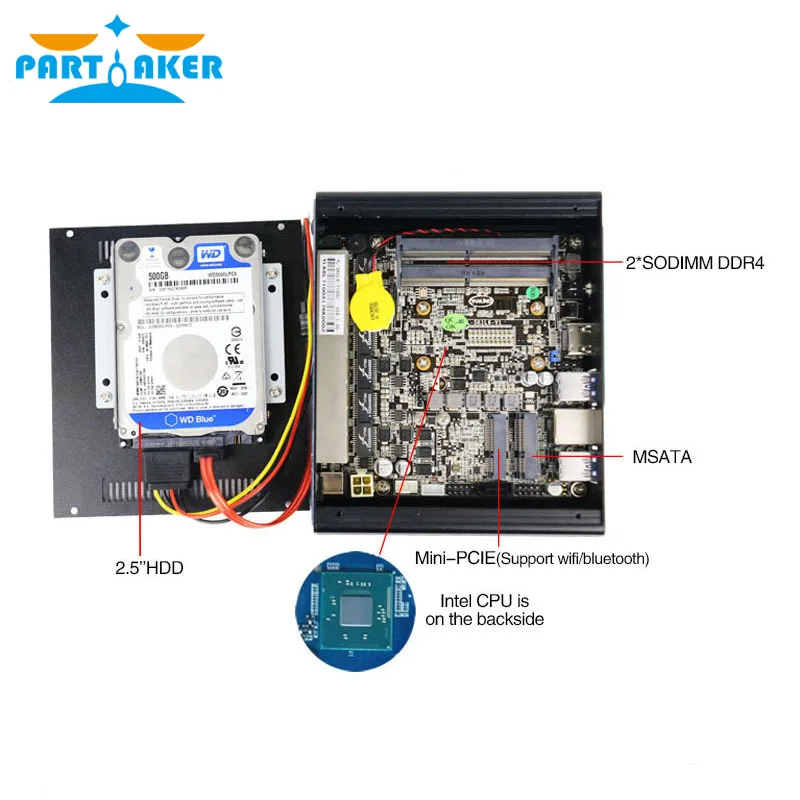

1. Intel Kaby Lake i5 7200U dual Core 2.5GHz.
2. Support 2*DDR4 1866/2133MHz, max 32G;
3. 1*HDMI+ 4*USB3.0 +6*intel LAN+1*RJ45 COM(support console)+1*Power switch;
4. 6*Intel 82583V 1000M lan card, support wake on lan;
5. 1*MSATA, 1*SATA3.0, 1*mini-PCIE( support wifi / bluetooth,add extra $10);
6. AMI 64MB Flash ROM .support RPL/PXE diskless boot, electricity boot, WDT
7. DC-IN 12V power supply and AC power adapter;
8. High-quality Fanless pure aluminum Case;
9. Applied in Firewall, Network Server, Network Security, VPN Router etc.
1. Kaby Lake 14nm CPU Intel Core i3 7100U 2 cores 4 threads 2.4GHz 3MB cache TDP 15W HD Graphics 620.
2. Kaby Lake 14nm CPU Intel Celeron 3865U 2 cores 2 threads 1.8GHz 2MB cache TDP 15W HD Graphics 610.
3. Kaby Lake 14nm CPU Intel Celeron 3855U 2 cores 2 threads 1.6GHz 2MB cache TDP 15W HD Graphics 510.
4. Kaby Lake 14nm CPU Intel Core i5 7200U 2 cores 4 threads 2.5GHz up to 3.1GHz 3MB cache TDP 15W HD Graphics 620.
The Vault is a fanless, solid state, small form factor network appliance built for use as a firewall router and is compatible with a variety of open source firewall projects. The Partaker I7 i5 7200U barebone version comes without RAM or mSATA storage so the buyer can select the option that meets the needs of the application.
Tested compatibility:
The Vault has been tested with many of the most popular open source software firewall solutions. Compatibility includes pfSense CE, VyOS, OPNsense, Security Onion, Untangle, CentOS 7, *BSD, Linux, ESXi, Windows and others.
Hardware Specifications:
Intel Dual Core CPU i5-7200U 64 bit, 3.1 GHz, 3 MB Smart Cache
Intel AES-NI hardware support 6x Intel 82583V NIC ports (Note that Intel NIC ports are known to cause fewer problems than other vendors due to strong device driver support)
Hardware support for up to 32GB DDR4 1866/2133MHz RAM (2x SODIMM, max 16GB per slot)
Hardware support for one mSATA form factor SSD
4x USB 3.0 port
1x RJ-45 COM Port
1x HDMI port
Power Button LED, Power LED and HDD activity LED VESA mount for mounting to a wall or the back of a monitor
Power supply included with US cord
Runs on approximately 20 Watts under moderate load, 35W max
Optional Wireless card kit is available from Protectli. Card is USB Channel and fits in a designated PCIe form factor slot with USB communications
Pre-drilled holes are in the chassis for WiFi antennas
Dimensions are 6.1 x 5 x 2 in (155 x 126.5 x 52.5 mm)
Weight is 3.5 lbs, (1.6 Kg)
Operating Temperature 14 to 122 degrees Fahrenheit (-10 to 50 degrees Celsius)
All metal enclosure for durability and heat dissipation
1. According Newest Aliexpress Business Service Agreement informs all products should be showed real price to customs because buyers are responsible for paying tax involved, such as import tax, VAT, etc.
2. Due to the tax problem, buyer refuse to receive the goods, buyer need to responsible for the freight back and forth. Thank you for your cooperation.
3. According to customs rules in Russia, we have to write real price to customs.and buyer have to offer passport information, personal VAT number and link of product to local customs for clearance. Thanks.
4. For German customers, please note that German custom decide to implement the single customs clearance costs for e-commerce goods from Mar.1 2018. Deutsche Post DHL will charge an additional fee of 6 EUR / set (including VAT) for taxable and hospitality tax on incoming mail.
5. For Swedish customer, please note that the Swedish Customs decided to impose VAT on all non-EU e-commerce items (including mail) starting March 1, 2018. The implementation of zero-value-added tax threshold, does not distinguish between the level of value, the recipient VAT. If the value of the goods is less than 150 euros, Sweden Post will charge 7.5 euros for services, more than 150 euros, for 12.5 euros service charges e-commerce items.
6. For Brazil customer, please note that the Brazil Customs decided to charge a fee of 15 reais (about 3.5 US dollars) per order for all international parcels handled by the customs from August 27, local time.You have to pay it within 30 days, otherwise the package will be returned or destroyed. For that, we wont do money refund.
7. To European union(28 counties) we have XINNUO or YUNTU shipping which will pre-paid taxes in our side which means no need pay taxes when goods received, the delivery time need 8-15 days to GB, France, Italy, Spain, Germany etc.Contact us if you need this service.
1. We prefer payment through ESCROW which is security way for you.
2. Pls make sure the shipping address, zip code and tel-number are correct before payment.
3. The buyers are responsible for all additional custom fees, brokerage fees, duties and taxes for importation into your country.
4. We also can accept the payment by Paypal if you think Paypal is convenient for you to order. But now only can ship to USA, UK, Italy, Spain, France, Germany.
5. Welcome to contact us by chat tool directly or leave a message if you order in bulk.
6. Refund will be done by Paypal.
1. All items will be double checked and well packed and they will be dispatched within 5 business days when order is paid.
2. Normally we ship package by DHL, it will take about 3~7 working days to most of countries, door to door.
3. If you address is a remote area by DHL, if you do not add remote area shipping fee, we will arrange shipment by our methods, hope you can kindly understand it, thanks.
4. e-EMS: it is for Russia and some other countries.
5.If you choose the shipping way is air post mail , it normally takes 30-90 days without tracking information , pls noticed. It's better to choose EMS or DHL , more faster and safe .
6. If you don't get the package in normal time, please contact us kindly, we will do our best to assist you.
7. If you don't accept above terms, pls do not buy it, thanks.
1. We provide 1-3 year warranty period, repair or replace for free; the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first. We will try our best to deal with the issue for you or you can exchange or return the item in one week.
3. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed.
4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product. Thanks.
5. If the product break down, please contact us.
1. We maintain high standards of excellence and strive for 100% customer satisfaction!
2. If you are satisfied with them, please lease 5 star positive feedback
3. Negative feedback or low DSR does no resolve any underlying issues. If you have a problem, please contact us via email firstly and give us the opportunity to reasonably rectify in a reasonable amount of time. We will try to respond ASAP, and we are always willing to work things out.
4. For some uncontrollable factors, the item may be damaged during shipping. If you receive a broken item, please contact us first, we will investigate and replace, if you have any other questions please email us. we will respond within 24 hours or less.
Check This Video Reviews Partaker DDR4 Pfsense Mini PC 7th Gen Kaby Lake Intel i5 7200u 2.5GHz Dual Core Fanless Mini Serv...
Check This Video Reviews Partaker DDR4 Pfsense Mini PC 7th Gen Kaby Lake Intel i5 7200u
Best Price Comparison With Partaker DDR4 Pfsense Mini PC 7th Gen Kaby Lake Intel i5 7200u 2.5GHz Dual Core Fanless Mini Server PC support AES-NI

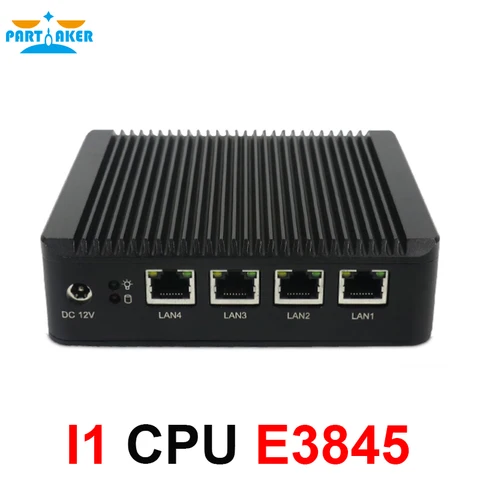

4*Lan Pfsense Mini PC Firewall Appliance Mini Server With Intel atom E3845 Quad Core Supports AES-NI
Buy Now On Aliexpress
7th Gen Intel Core i7 7560U Partaker Newest Kaby Lake Win10 Mini PC Max 3.8 GHz Fanless Nuc HTPC Intel HD Graphics 640 4K TV Box
Buy Now On Aliexpress
Partaker Fanless Mini Computer i7 8550U/7560U i5 8250U/7260U 2*DDR4 Msata+M.2 SSD Micro PC Win10 Pro Barebone HTPC Nuc VGA HDMI
Buy Now On Aliexpress
Top Quality Gaming Computer i9 8950HK i5 8300H i7 8750H 6 Core 12 Threads 64GB DDR4 Nvme M.2 Nuc Mini PC Win10 Pro AC WiFi
Buy Now On Aliexpress

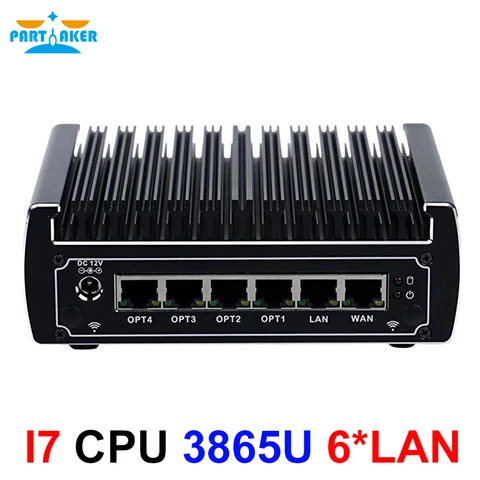

Pfsense fanless mini pc x86 Partaker I7 Intel Celeron 3865U 6*Intel Lans DDR4 linux firewall router DHCP VPN network server
