No Monitor 4Gb ram 64Gb SSD industrial computer 2 lan Industrial PC Wirh Intel Celeron N2930 Quad Core CPU fanless mini pc
 |
| No Monitor 4Gb ram 64Gb SSD industrial computer 2 lan Industrial PC Wirh Intel Celeron N2930 Quad Core CPU fanless mini pc |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | |
| Product id | 32889472641 |
| Vendor | Shenzhen Ling Jiang Computer Technology Co., Ltd. |
| Category | Computer & Office - Mini PC |
Description :
Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store
Bulk Order !
contact kevin email xierong@ling-jiang.com
More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.
No Monitor Stock Products Status
Many Workstation Industrial PC Wirh
Intel Celeron N2930 Quad Core CPU mini pc
Product Description

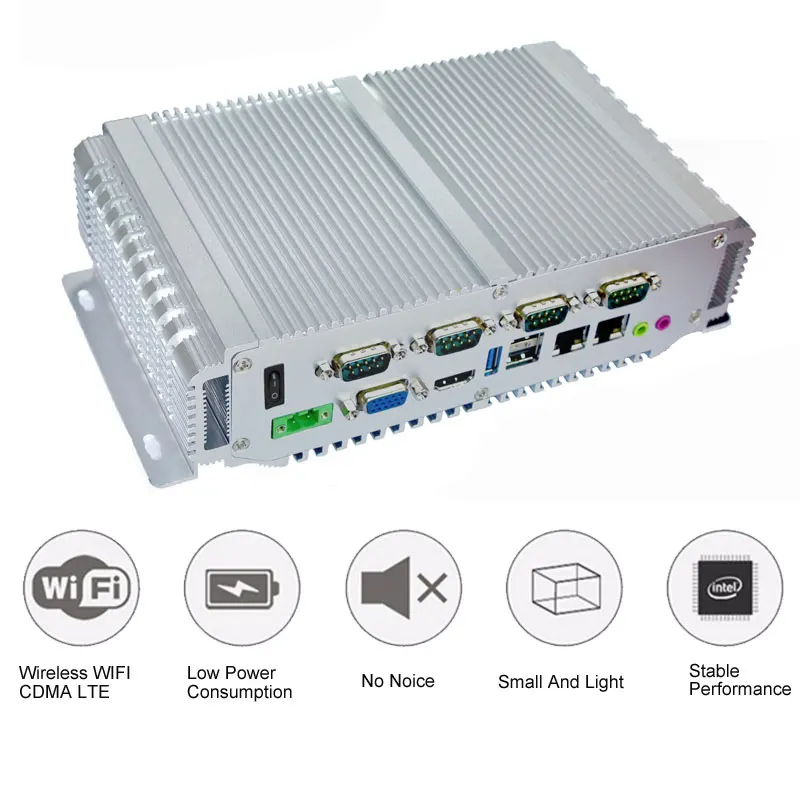

1.The Fanless industrial pc was made of brushed aluminum in beautiful shape,no cable design is good at shockproof, and high performance at low power consumption,can be used in hard environments. It supports wireless 3G and WIFI.
2.With the shockproof, moisture-proof, waterproof and dustproof (meet the NEMA IP65 standard), high temperature resistant, multisolt and easy to expand characteristics, so it iswidely used in industrial control,vehicle control, environmental control ,Miliary control,Network security,Digital signage,Date storge and other automation applications.
| Features | |
| Model Name | LBOX-J1900 |
| Mechanical | |
| Shell Material | Aluminum Alloy |
| Color | Silver Grey |
| IP Grade | IP63 |
| Net weight | 1.3kg |
| Thermal methods | Fanless |
| System | |
| CPU | Intel Celeron J1900 CPU，2GHZ，CPU10W , Optional Intel Celeron N2930 CPU，1.83GHZ，CPU7.5W |
| Chipset | Intel Bay Trail |
| Memory | RAM Onboard 4G Optional DDR3 4G Max 8G |
| Storage | SSD 32GB Optional SSD 64G/128G/256G Optional 2.5 Inch SATA HDD 320G/500G/1TB etc. |
| System | XP/Win7/Win8/Win10/Linux |
| Lan | 2×10/100/1000Mbps RJ45 Gigabit Ethernet port ,Intel Lan Chipset RTL8111G |
| Serial Port | COM1×RS485/RS232/RS422 (DB9Pin connector，Defaults to RS232)；COM2-COM4×RS232（DB9 pin connector） |
| USB | 1×USB 3.0 Port.4×USB2.0 Port |
| Display | 1×VGA，1×HDMI,integrated Intel HD Graphics |
| Audio | 1×MIC-in，1×Line-out.Graphics Integrated ALC662. |
| Others | 1×8 bits GPIO |
| Consumption | Less than 15W |
| Whatchdog Timer | 1-255s，Programmable |
| Expansion | 1×SIM, 2×Min-Pcie (Optional Wifi module.3G module) |
| Working Temp. | Working Temp -40℃-80℃，Working Humidity 5%-90%（Non-condensing） |
| Storage Temp. | Storage Temp -40℃-80℃，Working Humidity 5%-90%（Non-condensing） |
| Power | Wide voltage 9V～25V，12V5A Power adapter |
| Switch ON/OFF | Power switch |
| Dimensions | 210.5×123.2×63（mm） |
| Hole Size | 218×77（mm） |
| Warranty | |
| Warranty | 12 Months |
| Order information | |
| Model Name | LBOX-J1900 |
| Standard Configuration | Intel Celeron J1900 CPU/RAM 2G/SSD 32G(Win7 Bits OEM) 1×VGA/HDMI/2×LAN/1Mic-inline-out/5×USB/4×COM |
| Standard Accessories | 12V5A Power Adapter,GPIO Connector |
| Optional | Intel Celeron N2930 CPU/RAM 4G/SSD 64G/128G/256G HDD 320G/500G/WiFi/3G/Built-in Speaker |

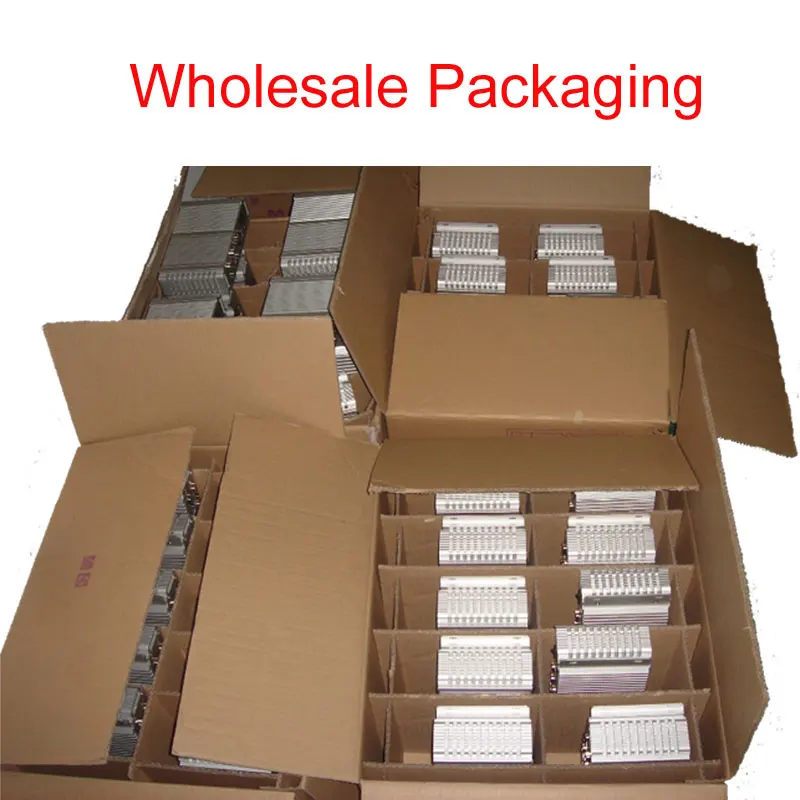

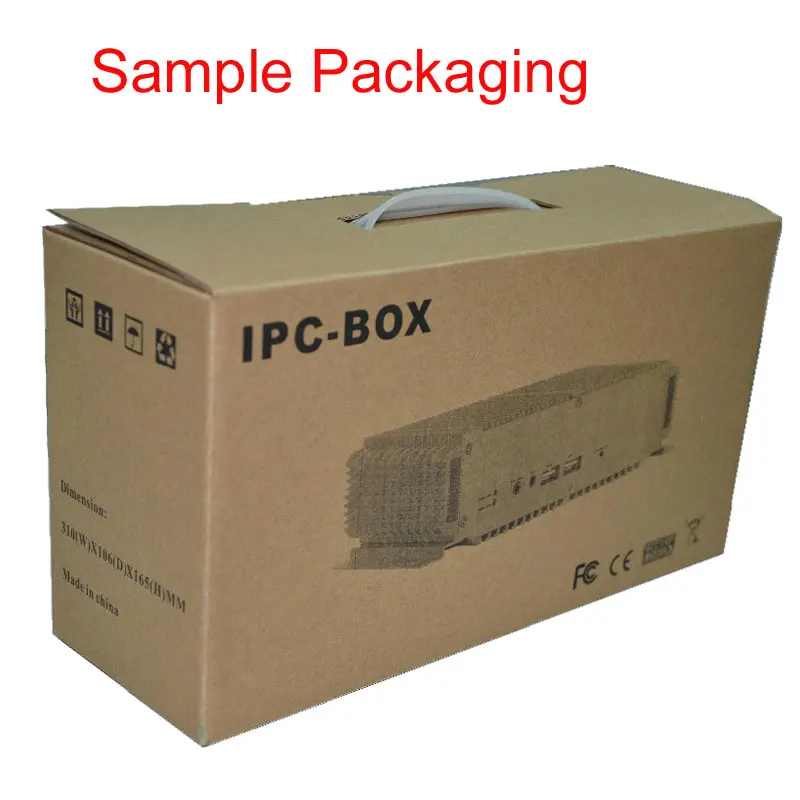

About packing:
1,Modular packaging,all Industrial Box PC are in box,scientific packaging design, each part carefully protected to ensure safe arrival.
About feedback:
1,If you are satisfied with panel PCS,please leave a positive feedback to us. Thanks in advance
2,If you are not satisfied for any reason,please contact us before leaving feedback,we will work with you to help you solving any problem until you are satisfied.
Check This Video Reviews New Industrial PC boards based on J1900, N2930 and N2807
Check This Video Reviews Mini PC J1900 Quad Core
