Description :
Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store
need discount
contact kevin email xierong@ ling-jiang.com
More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.

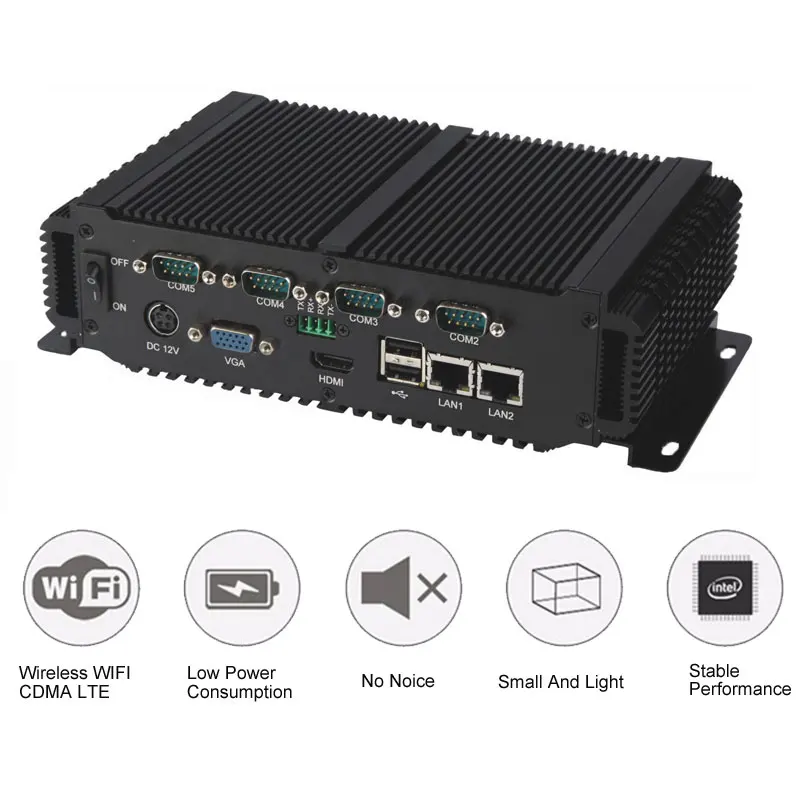

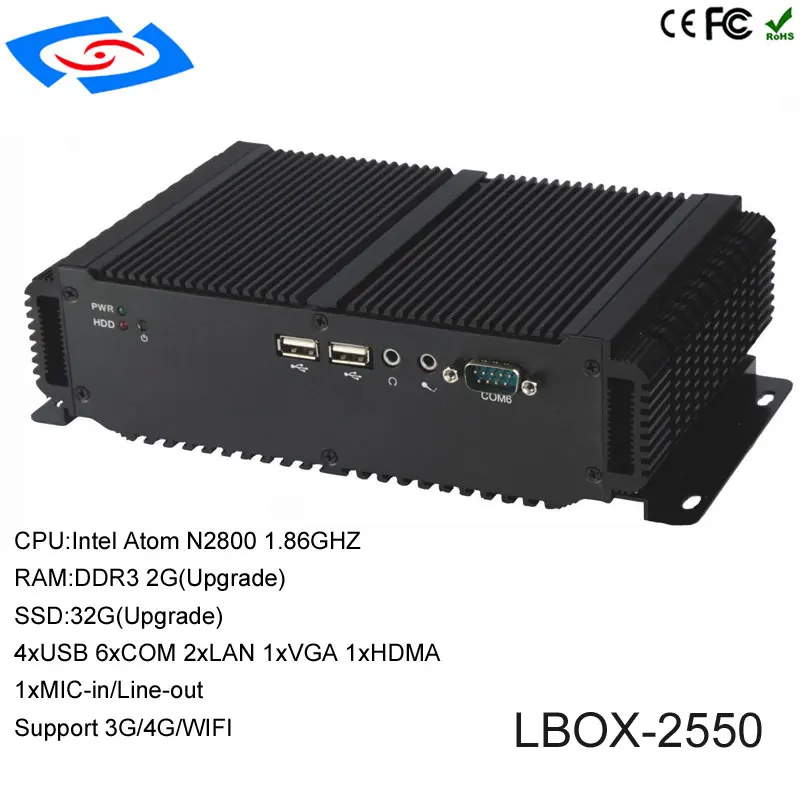

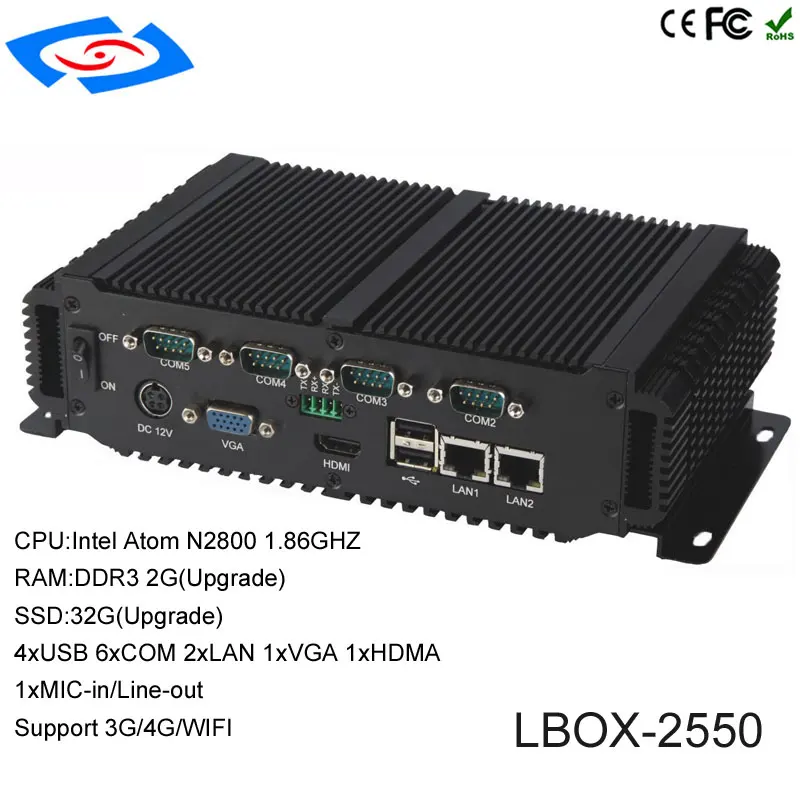

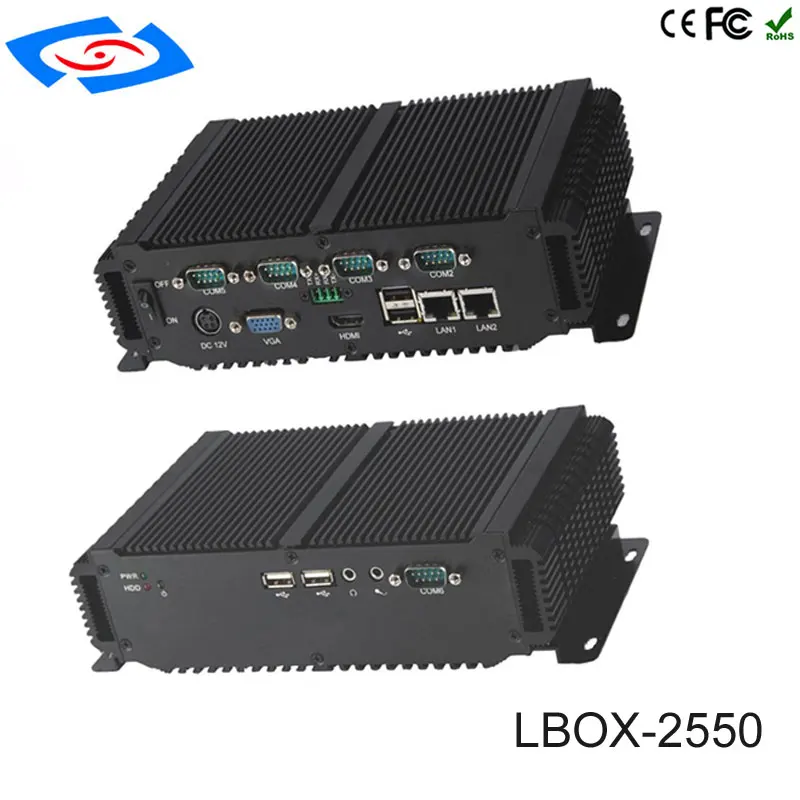

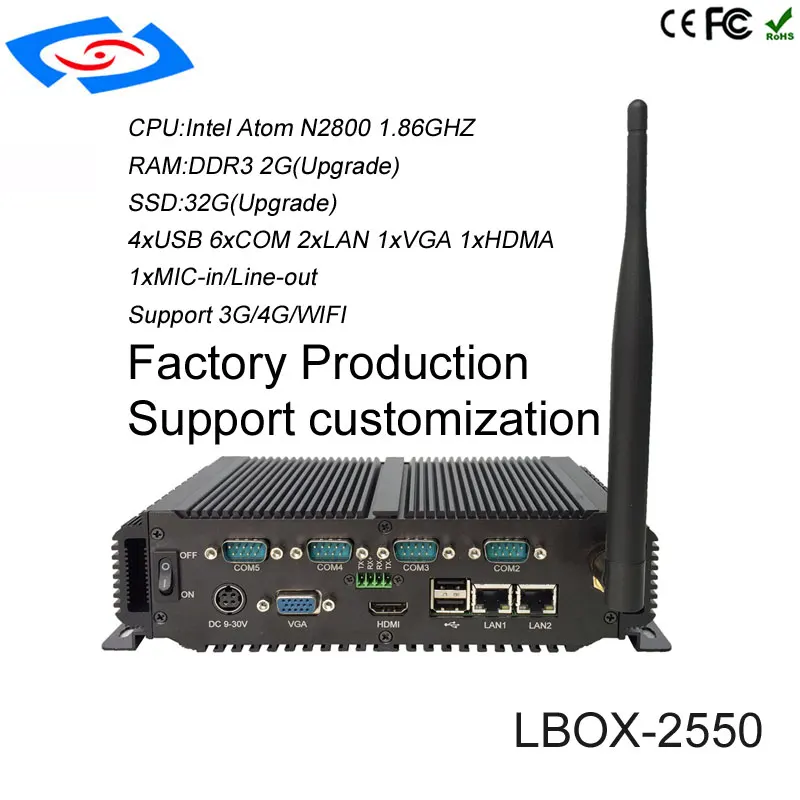

Newest Onboard Intel Atom D2550 CPU Industrial PC
With XP/Win7/Win8/Win10/Linux Operating System
Support WiFi/3G/4G/LTE Mini PC
Orderssssssss!!!!!!
Product Description
1.Extreme Rugged and fanless design.
2.Intel Atom D2550 (1.86Ghz) at low power consumption with high performance,

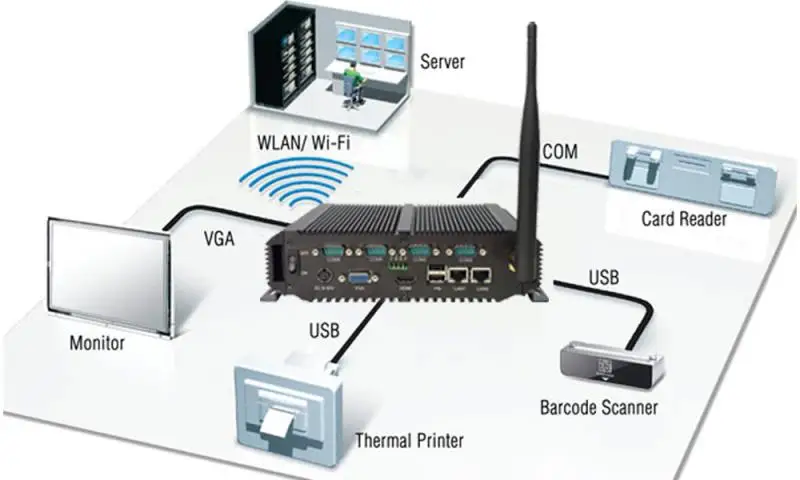

3.Support full-automatic RS-485, WIFI, 3G and HDMI, it's a multi-function industrial embedded computer.
4. Dual core Intel Atom D2550, 2xGbE,6xCOM,4xUSB
| Features | |

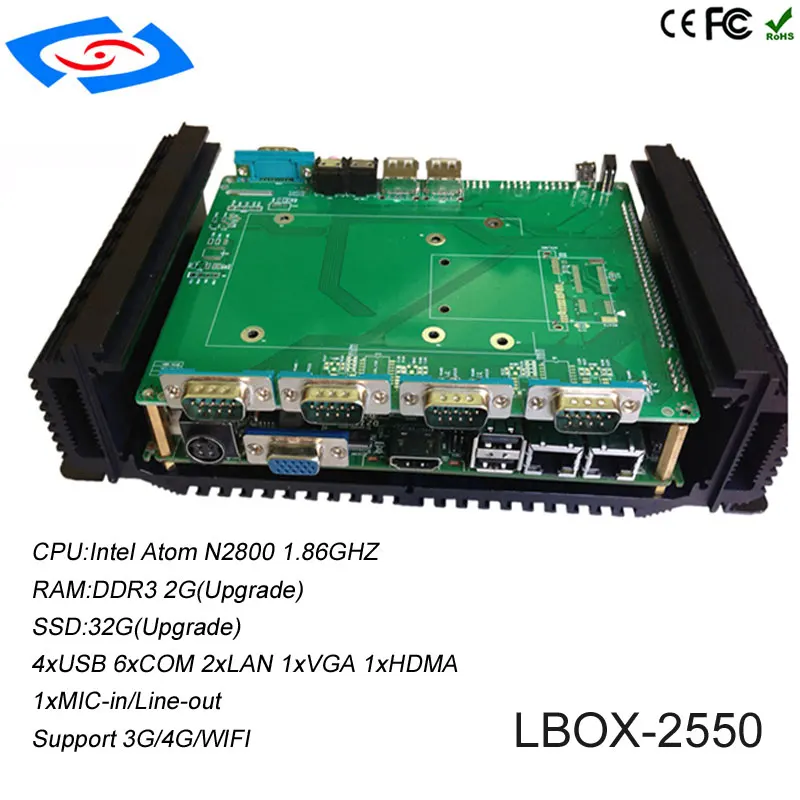

| Model Name | LBOX-2550 |
| Mechanical | |
| Shell Material | Aluminum alloy |
| Color | Black |
| IP Grade | IP63 |
| Net weight | 1.35kg |
| Thermal methods | Fanless |
| System | |
| CPU | Intel Atom N2800/D2550 CPU,1.86GHZ,CPU Power Consumption 6.5W |
| Chipset | Intel N2800+NM10 |
| Memory/RAM | Onboard 2G Optional DDR3 2G MAX 4G |
| Storage | SSD 32GB（Up to SSD 64G/128G/256G， Optional 2.5 Inch SATA HDD320G/500G/1TB etc.) |
| System | XP/Win7/Win8/Win10/Linux |
| I/O | |
| Lan | 2×10/100/1000Mbps RJ45 Gigabit Ethernet ，Integrated RTL8111E Gigabit Ethernet |
| Serial Port | COM1×RS232/485/422( Defaults to RS485)； COM2-COM5×RS232/RS485(Defaults to RS232); COM6×RS232 |
| USB | 4×USB 2.0 Port |
| Display | 1×VGA，1×HDMI,Integrated Intel GMA 3650 Chip, |
| Audio | 1×MIC-in，1×Line-out，Graphics Integrated ALC653 |
| Others | 1×8 bits GPIO (Optional),1×LPT(Optional),1×PS/2 (Optional) |
| Consumption | Less than 15W |
| Whatchdog Timer | 1-255s，Programmable |
| Expansion | 1×SIM, 2×Min-Pcie (Optional Wifi module.3G module) |
| Working Temp. | Working Temp -40℃-80℃，Working Humidity 5%-90%（Non-condensing） |
| Storage Temp. | Storage Temp -40℃-80℃，Working Humidity 5%-90%（Non condensing） |
| Power | Wide voltage 9V～30V，12V5A Power adapter |
| Switch ON/OFF | Power switch |
| Dimensions | 210.5×125×63（mm） |
| Hole Size | 218×77（mm） |
| Warranty | |
| Warranty | 12 months |
| Order information | |
| Model Name | LBOX-2550 |
| Standard Configuration | Intel Atom N2800 Dual Core CPU/1.86GHZ/RAM 2G/ SSD 32G(Win7 32 Bits OEM)/1xVGA/HDMI/2xLAN/ 1xMIC-in/Line-out /4×USB/6×COM |

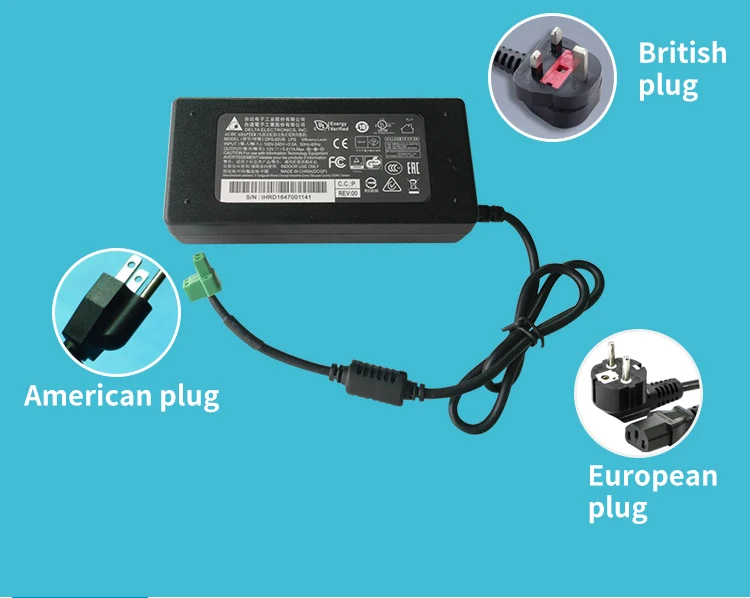

| Standard Accessories | 12V5A Power Adapter、RS485 |
| Optional | RAM 4G/SSD 64G/128G/256G/HDD 320G/500G/1TB LPT/PS2/GPIO/WiFi Module/3G Module/Built-in Speaker |

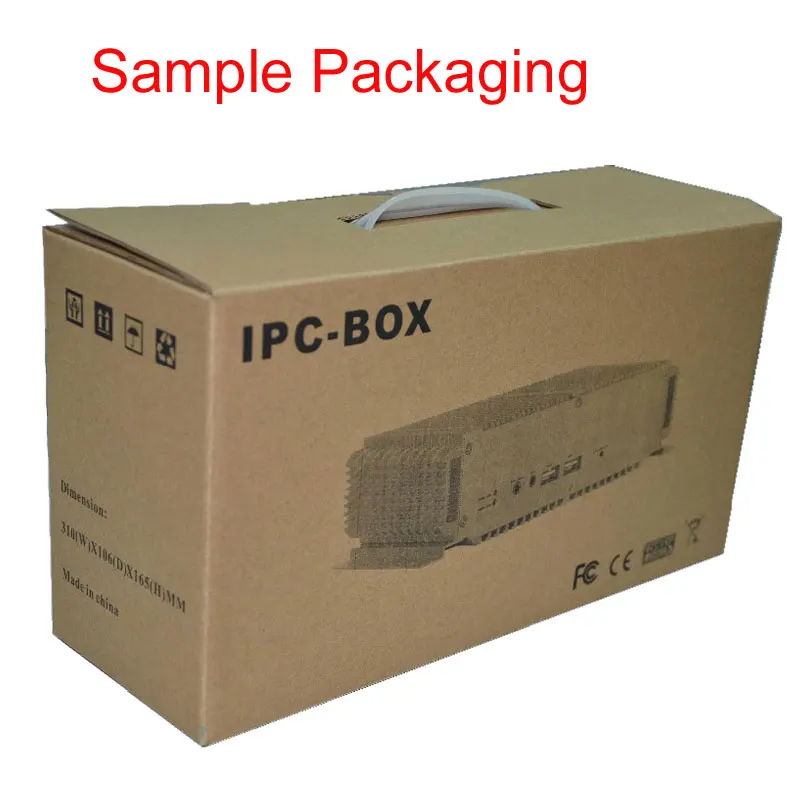

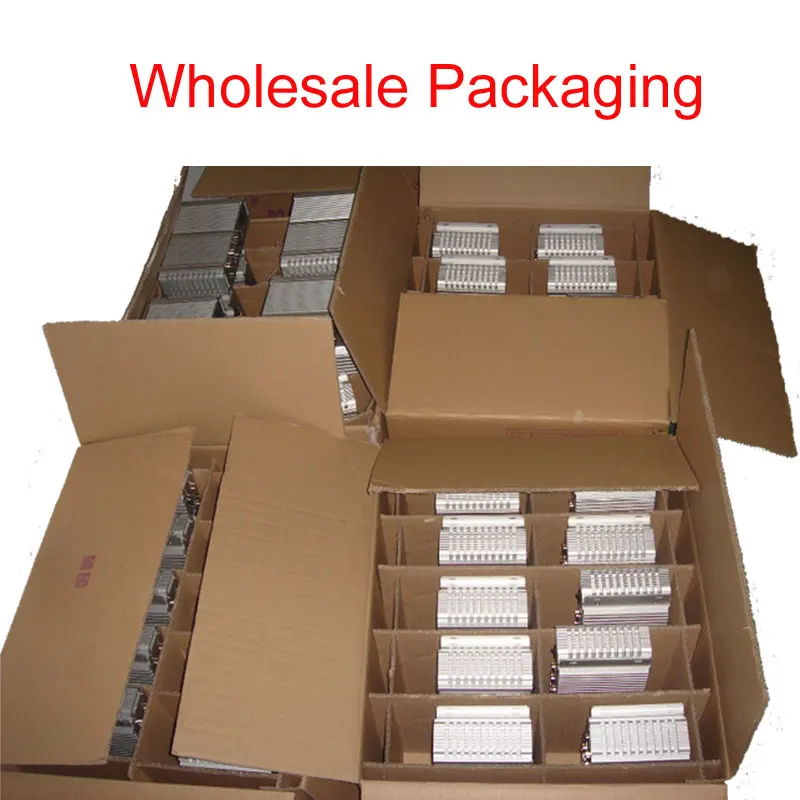

About packing:
1,Modular packaging,all Industrial Box PC are in box,scientific packaging design, each part carefully protected to ensure safe arrival.
About feedback:
1,If you are satisfied with panel PCS,please leave a positive feedback to us. Thanks in advance
2,If you are not satisfied for any reason,please contact us before leaving feedback,we will work with you to help you solving any problem until you are satisfied.
