Fanless 10.1 inch Industrial Touch Screen Panel PC With 2xLAN 2x10/100/1000Mbps RJ45 RTL8111E 2xUSB2.0 2xCOM RS232
 |
| Fanless 10.1 inch Industrial Touch Screen Panel PC With 2xLAN 2x10/100/1000Mbps RJ45 RTL8111E 2xUSB2.0 2xCOM RS232 |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | |
| Product id | 32861771518 |
| Vendor | Shenzhen Ling Jiang Computer Technology Co., Ltd. |
| Category | Computer & Office - Mini PC |
Description :
Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store
Bulk Order !!!
More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.

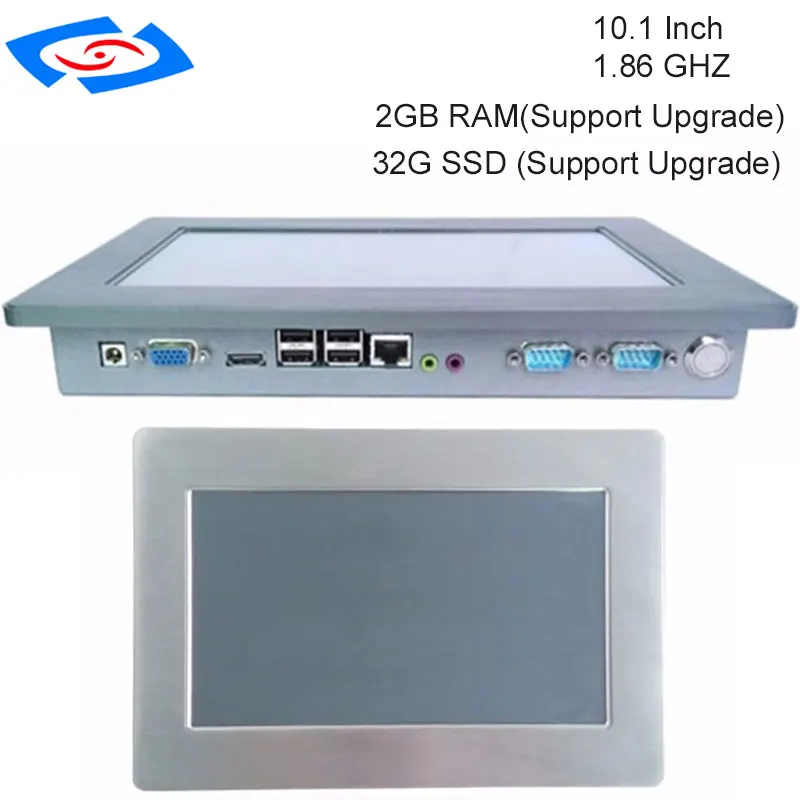

Fanless 10.1 inch Industrial Touch Screen Panel PC
With 2xLAN 2x10/100/1000Mbps RJ45 RTL8111E
2xUSB2.0 2xCOM RS232
Orderssssssssss!!!
10.1 " Industrial Tablet
1, Precision Resistive Touch Screen, Resolution 1024 x 600.
2, Dual Core High Performance Processor, DDR 3 Dual Channel Memory, Solid State Disk(SSD)
3, Using Aluminum Alloy Casing, Solid, Meguiar, Durable
4, Gigabit RJ45 LAN Port, VGA Display Output, Double COM RS232 Interface
5, Upgrade The 3G/4G/LTE/WiFi Features

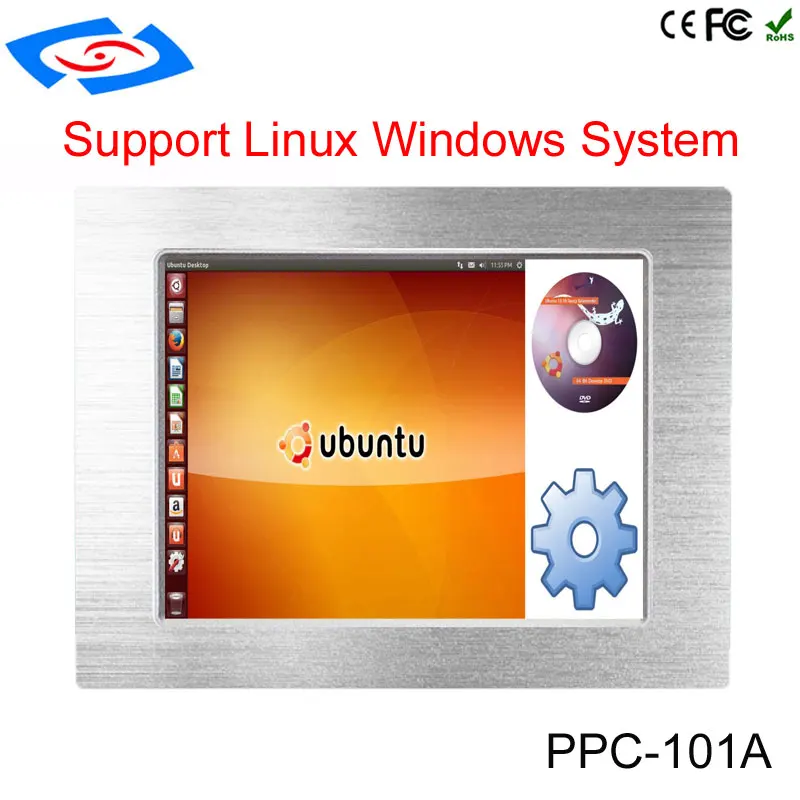

Model: PPC-101A
Standard: Intel Atom N2800 Processor, 10.1" Touch Screen,1024x600 Resolution,
RAM 2G SSD 32G (Win7 32Bits OEM),
2xUSB,2xCOM RS232,1xVGA,1xHDMI,1xAudio

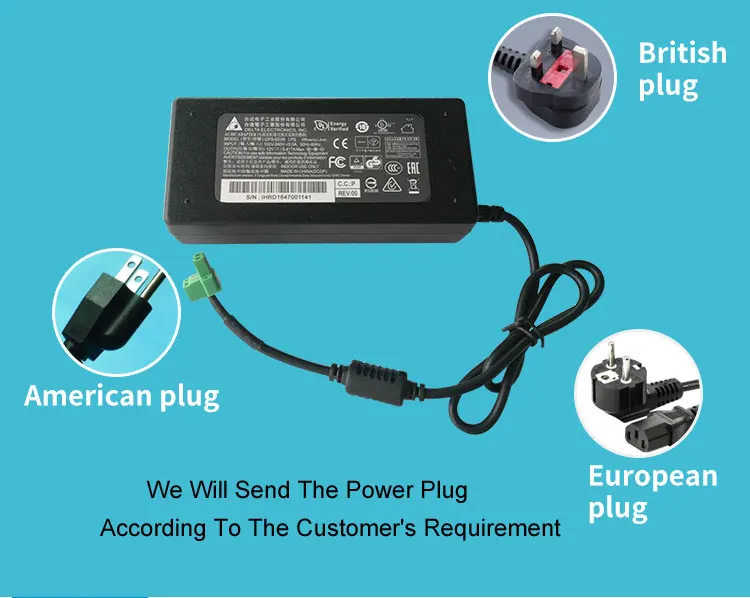

Accessories: 12V5A Power Adapter,(Optional European Plug British Plug Amercican Plug)
Embedded Mounting Buckle
Optional: RAM 4G,SSD 64G/128G 3G/4G/LTE/WiFi Module.
HHD 320G/500G/1TB etc.
| Features | |
| Model Name | PPC-101A |
| Display | |
| Size | 10.1" |
| Resolution | 1024×600 |
| Brightness | 350cd/m2 |
| Contrast | 400：1 |
| Touch Screen | 4-wire AMT Resistive Touch Screen |
| LCD screen | Industrial LCD Display |
| System | |
| CPU | Intel Atom N2800 Dual Core 1.86GHZ CPU 6.5W |
| Chipset | Intel Atom N2800+NM10 |
| Memory/RAM | Onboard 2G Optional DDR3 2G MAX 4G |
| Storage | SSD 32G Optional 64G/128G/256G |
| System | XP/Win7/Win8/Win10/Linux |
| I/O | |
| Lan | 2×10/100/1000Mbps RJ45,RTL8111E |
| Serial Port | 2×RS232,（Optional add 4 RS232） |
| USB | 2×USB2.0,（Optional add 4×USB2.0） |
| Display | Integrated Intel GMA3650，1×VGA、1×HDMI |
| Audio | Integrated ALC662, 1×MIC-in,1×Line-out/2W Built-in Speake |
| Others | 1×GPIO（Optional）, 1×PS/2（Optional） |
| Patulous Option | 1×SIM，2×min-pcie(WiFi/3G Optional） |
| Watchdog Timer | 1-255s，Programmable |
| Thermal methods | Fanless |
| Consumption | Less Than 15W |
| Working Temp. | -20℃-60℃，Humidity 5%-90%（Non-condensing） |
| Storage Temp. | -20℃-60℃，Humidity 5%-90%（Non-condensing） |
| Power | 12V/5A Power Adapter or DC 12V |
| Switch ON/OFF | The Trigger Switch |

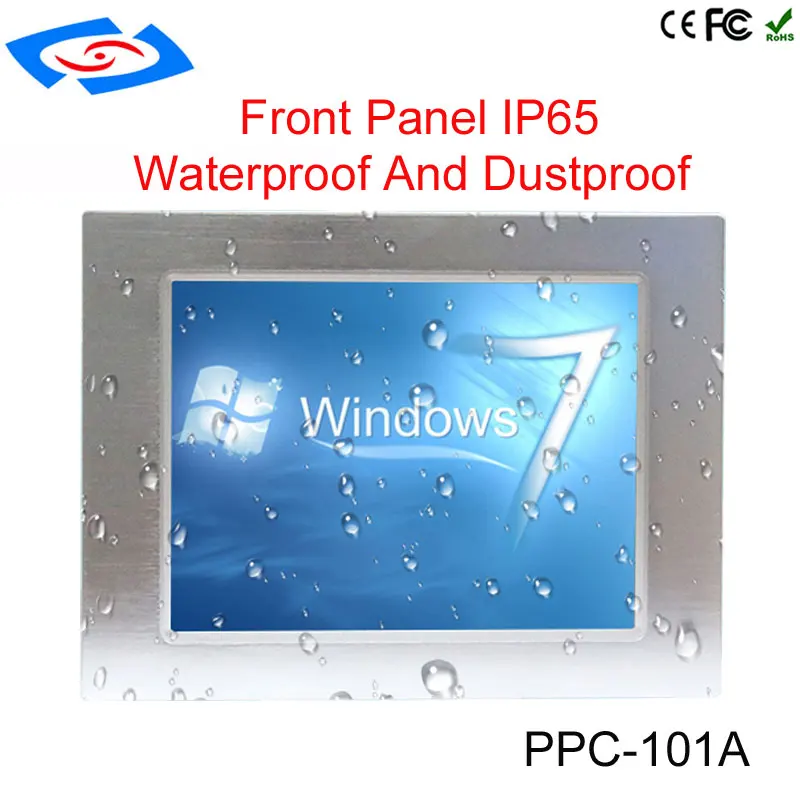

| Shell Material | High-strength Aluminum Brushed Pane;IP65；Spray Painting |
| Color | Sliver |
| Net Weight | 2.2kg |
| Installation | Embedded Mounted、VESA Rack Mounted |
| Dimensions(mm) | 285×193×40.2 |
| Hole size（mm） | 259.4×167.4 |
| Warranty | |
| Warranty | 12 months |
| Order information | |
| Model Name | PPC-101A |
| Standard | Intel Atom N2800 Dual Core CPU/1.86GHz/ RAM 2G/SSD 32G (Win7 32 Bits OEM)/Resolution 1024×600 2×USB/2×COM/2×LAN/1×VGA/1×HDMI |
| Accessories | 12V/5A Power Adapter，Power Cable， 2 Sets Embedded Install Button |
| Optional | RAM 4G/SSD 64G/128G/256G/3G/WIFI/PS2 etc. |
About packing:
1,Modular packaging,all Panel PC are in box,scientific packaging design, each part carefully protected to ensure safe arrival.
About feedback:
1,If you are satisfied with panel PCS,please leave a positive feedback to us. Thanks in advance
2,If you are not satisfied for any reason,please contact us before leaving feedback,we will work with you to help you solving any problem until you are satisfied.
