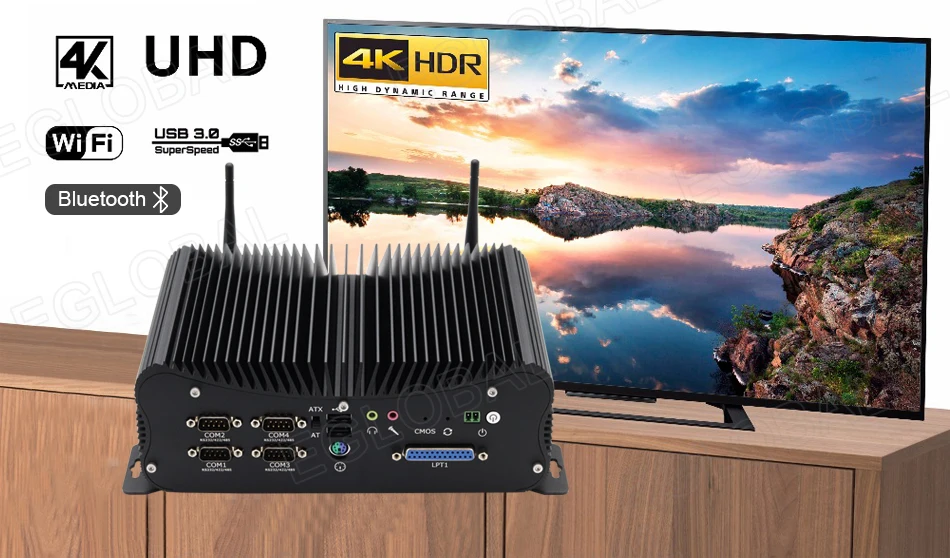

Eglobal Industrial Computer Intel Core i5 8250U i7 6567U DDR4 Desktop Mini PC 4 RS232/422/485 COM WES7/10 Windows LPT GPIO PS/2
 |
| Eglobal Industrial Computer Intel Core i5 8250U i7 6567U DDR4 Desktop Mini PC 4 RS232/422/485 COM WES7/10 Windows LPT GPIO PS/2 |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -32% |
| Product id | 4000420170216 |
| Vendor | MiniComputer Factory Store |
| Category | Computer & Office - Mini PC |
Description :
Product Hightlight:

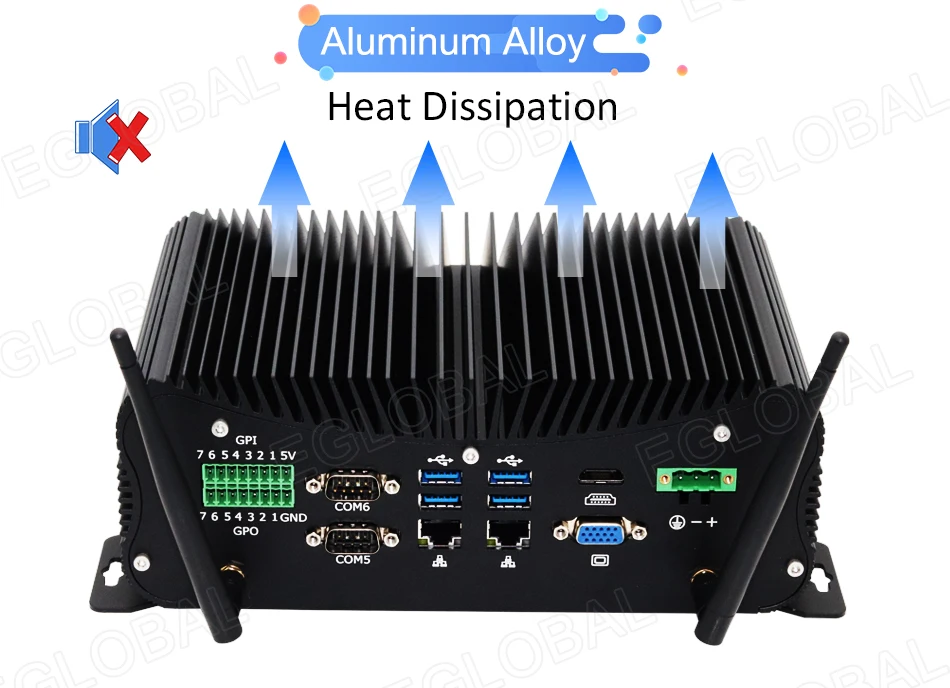

- Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipation, fit for industrial grade field, work as long as 24 hours.
- High-end Industrial PC less than 1% defective rate, super long lifetime and 3 years warranty.

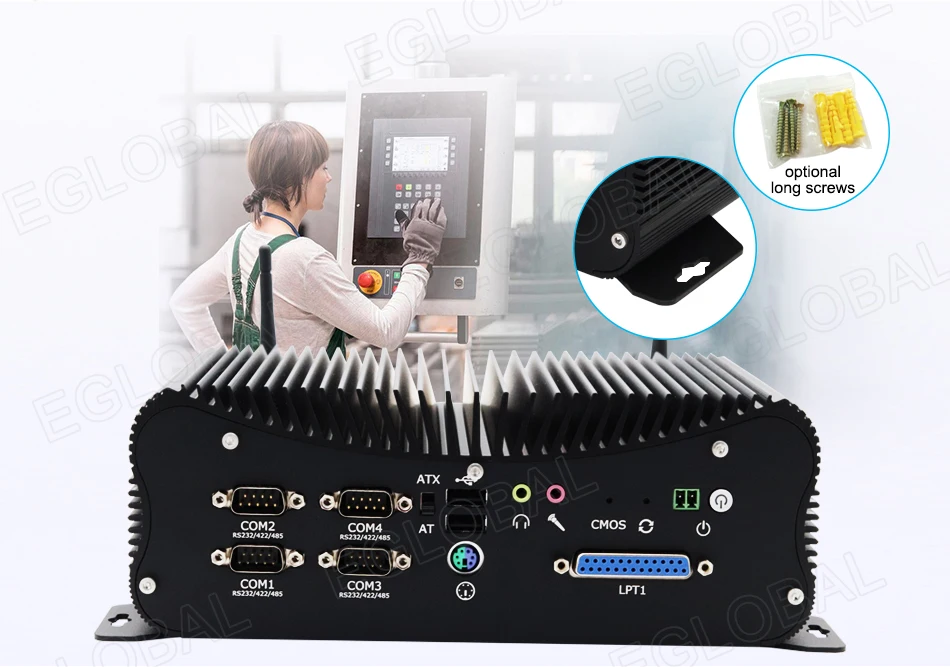

- 2 Intel i201/i211 Gigabit RJ45 LANs, 6 DB9 COM, 4 COM support RS422/RS485, PS/2, GPIO and LPT rich interfaces for different equipments.

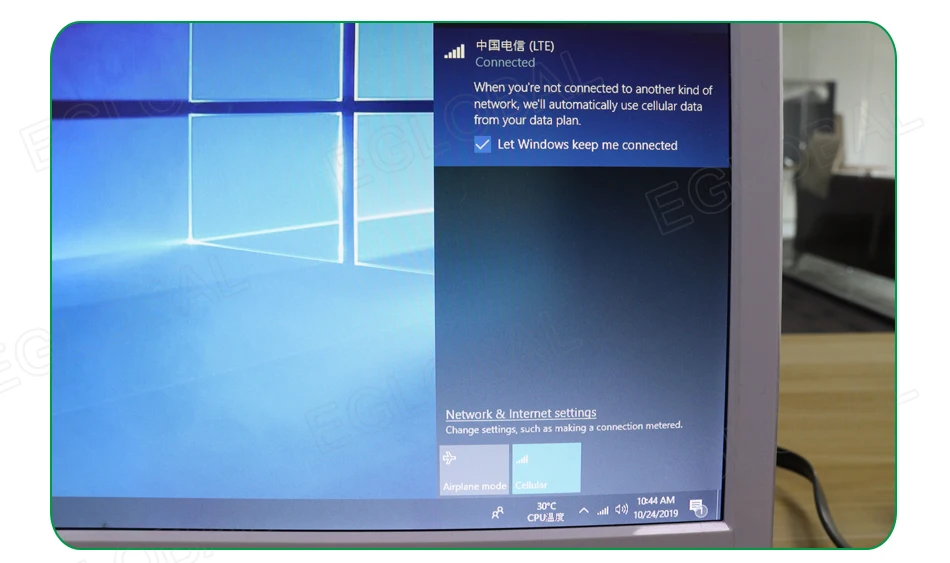

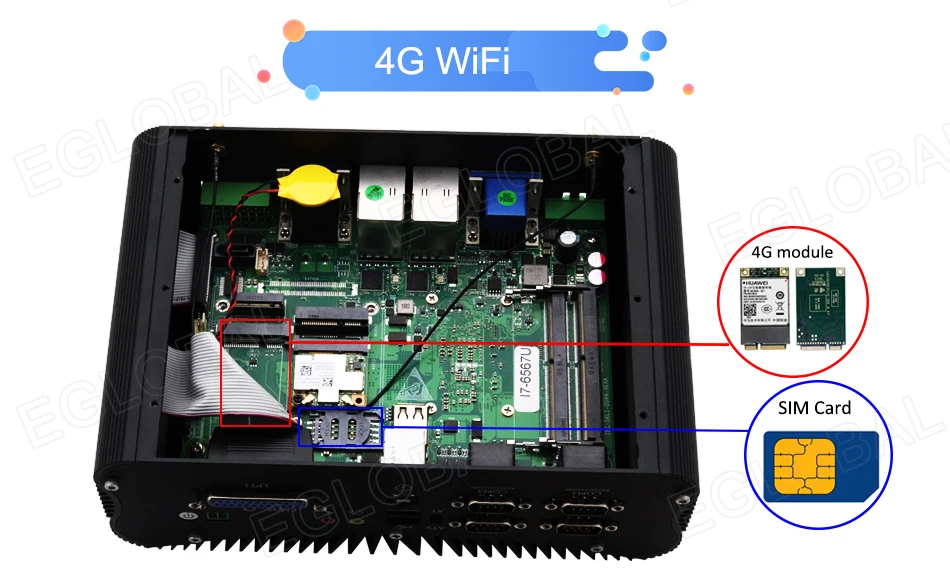

- One embedded SIM card slot onboard for 3G/4G Wi-Fi module.

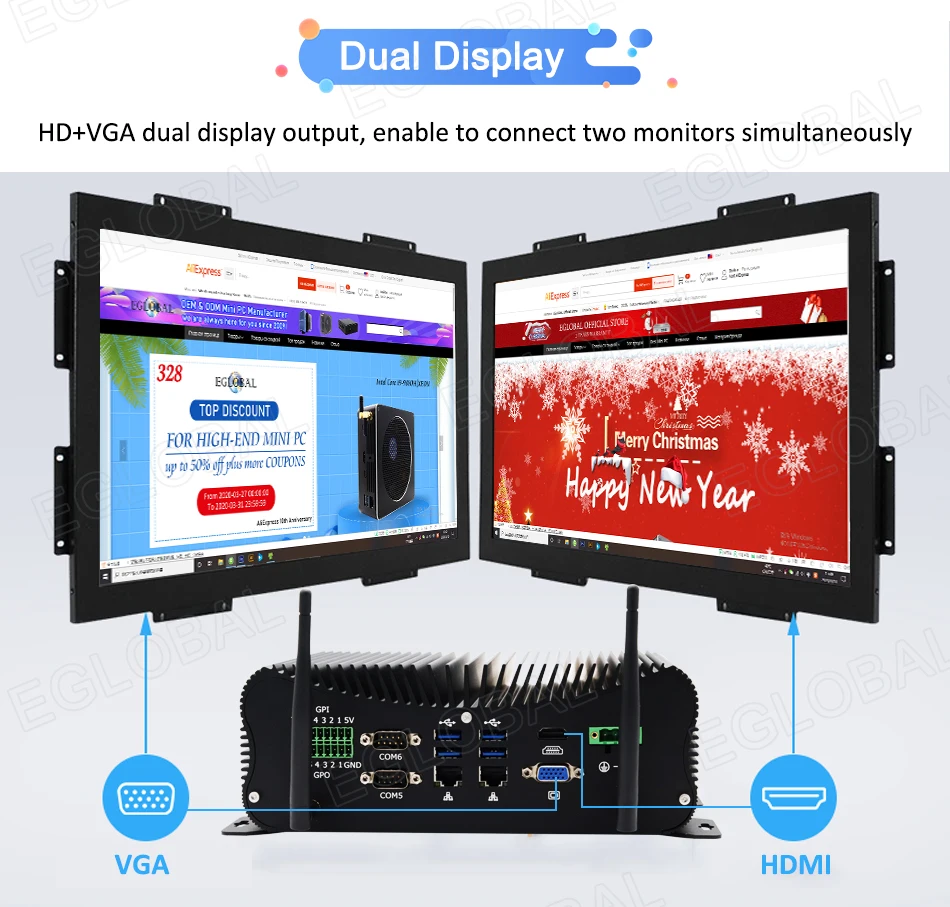

- Support VGA + HDMI dual display output synchronously.

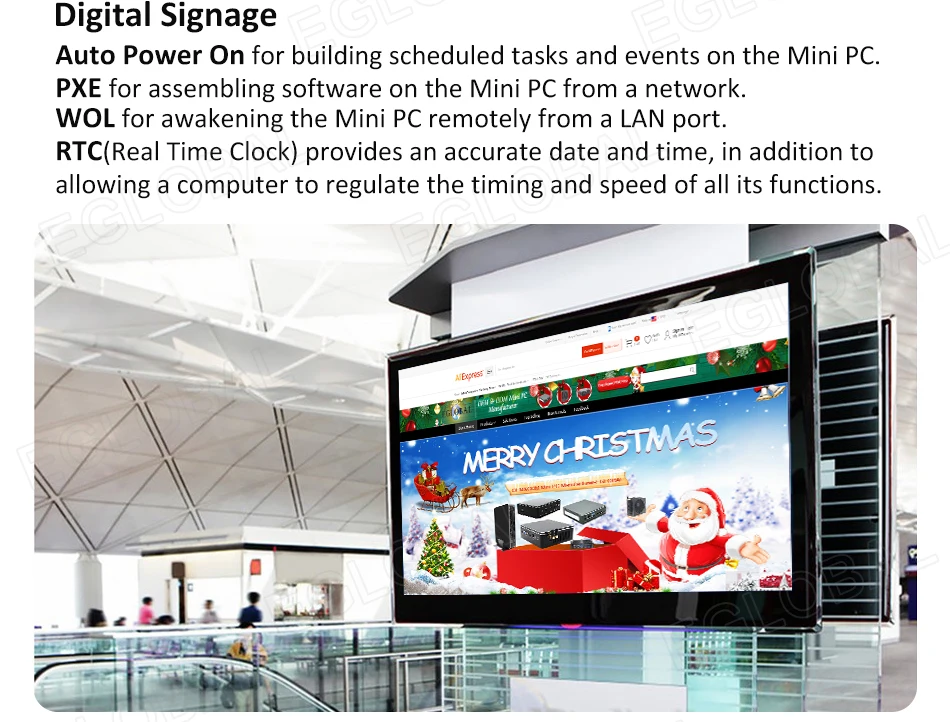

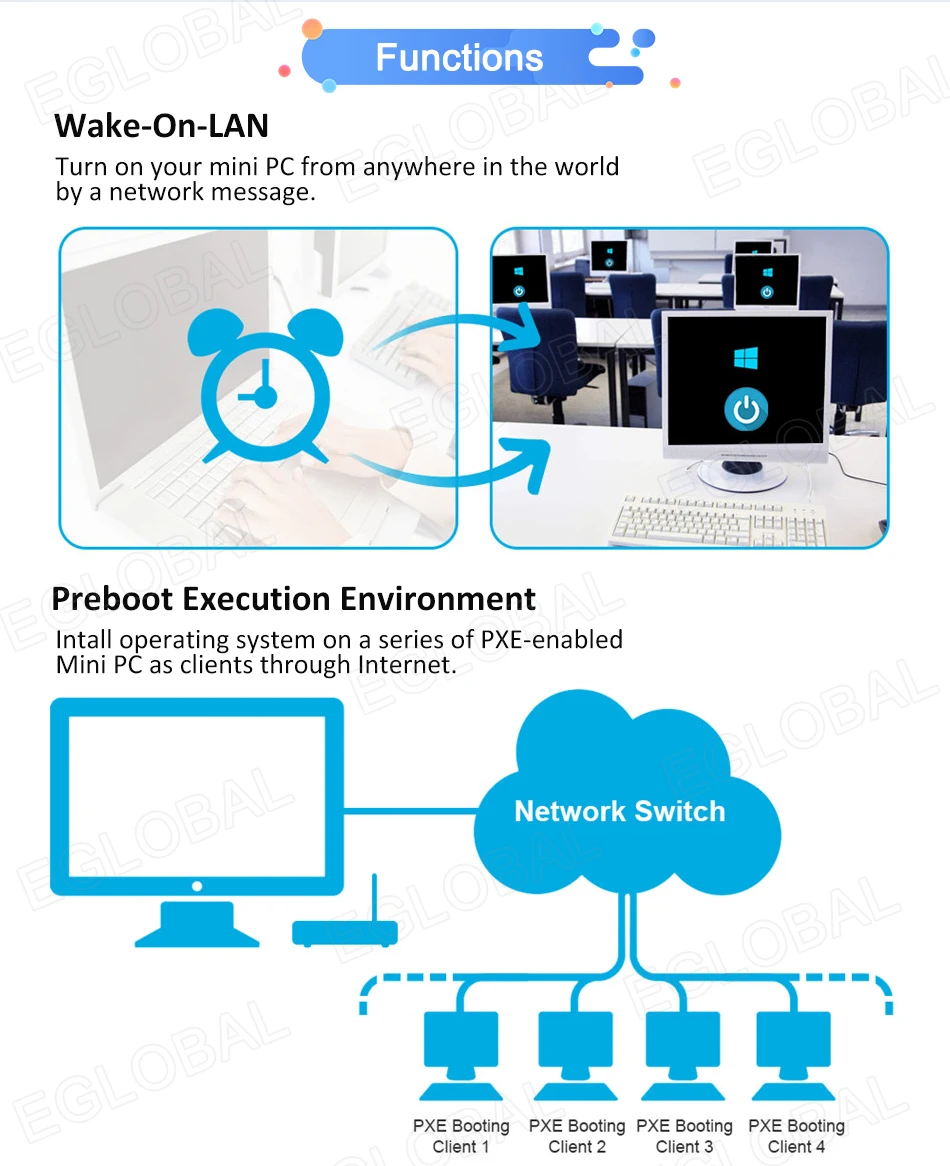

- Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.
Specifications:
Basic Information:
CPU
Onboard Intel 6th/7th/8th Gen Core i3/i5/i7 CPU Optional(can be customized in bulk)
Onboard Intel Core i5-6360u/i7-6567u /i5-8360u(On-Hand)
TDP
Refer to CPU
BIOS
American Megatrends Inc.
Chipset
Refer to CPU
Memory
2 x SO-DIMM DDR4 Slot
Support 4GB/8GB/16GB/32GB
OS

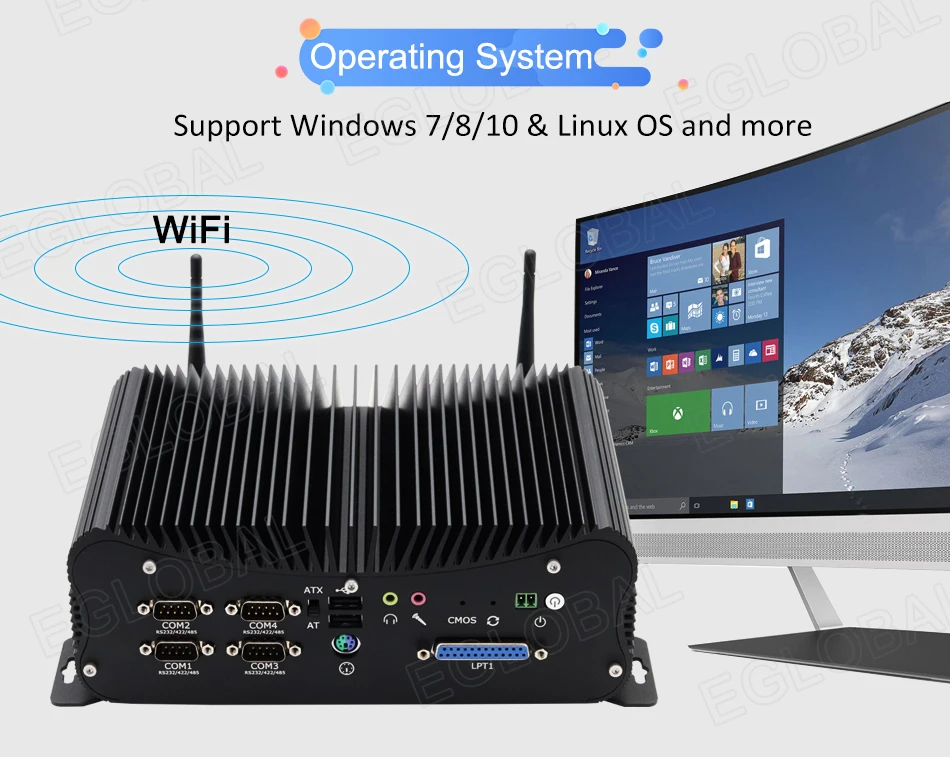

Windows 7/Windows 8/Windows 10/Linux, WES7/10
PXE
YES
Audio
Intel High Definition Audio Controller
Network
Intel(R) i210/i211 Gigabit Network Connection
10/100Mbps/1000Mbps BaseT LAN
Video
Refer to CPU

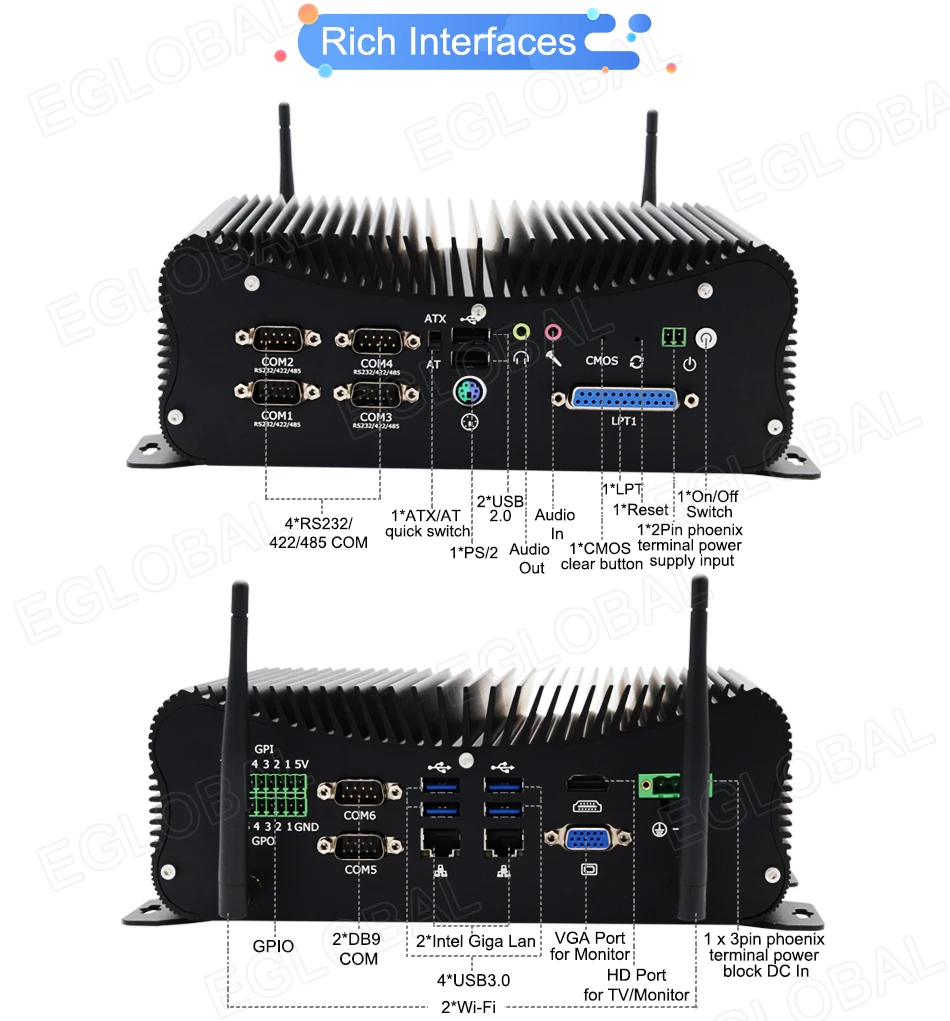

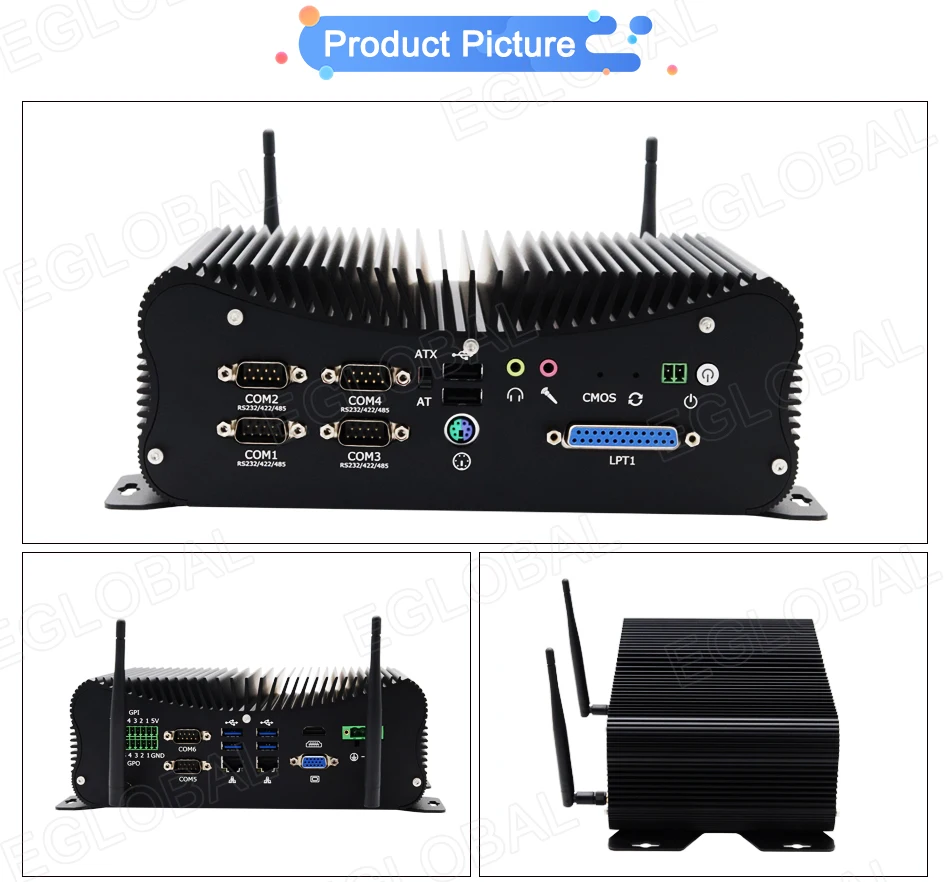

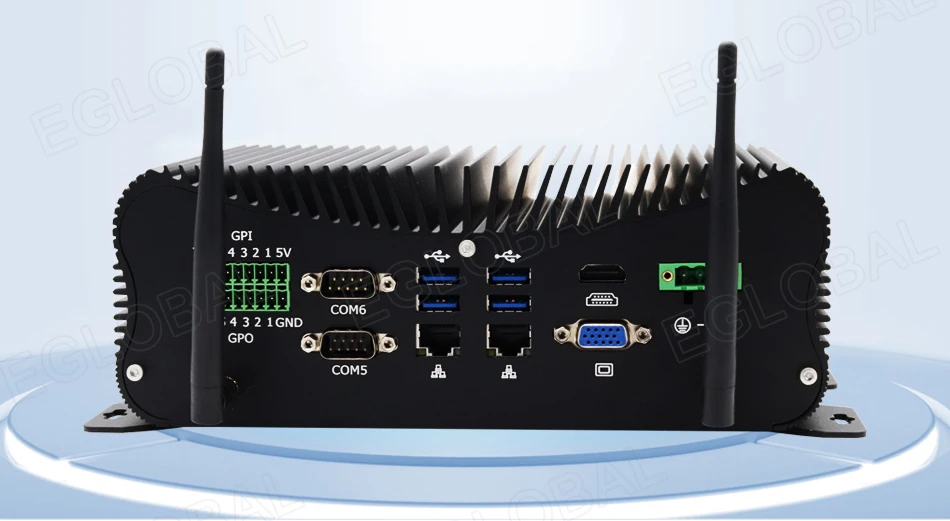

Input/output port
Switch
1 x Power On/Off Switch
Power
1 x 3pin phoenix terminal power supply input, support 9~36V
Button
1 x DIP Switch, support ATX/AT boot mode
USB
4 x USB3.0, 2 x USB2.0
PS/2
1 x PS/2(keyboard and mouse 2 in 1)
Display
1 x VGA, 1 x HDMI
LAN

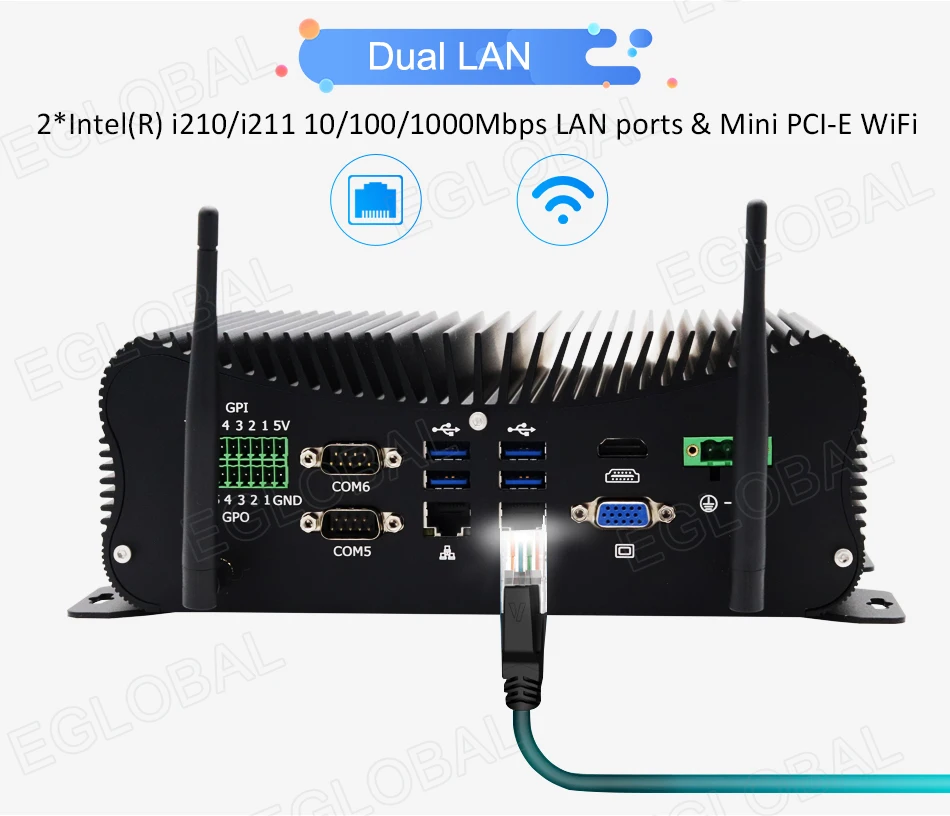

2 x Intel GbE RJ45 LAN
COM

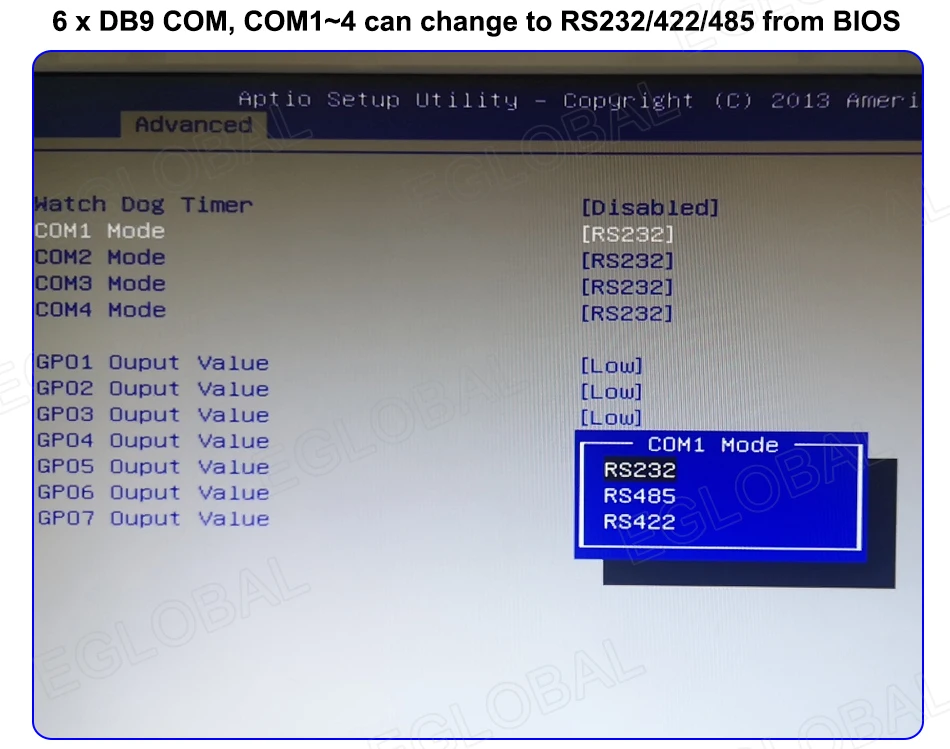

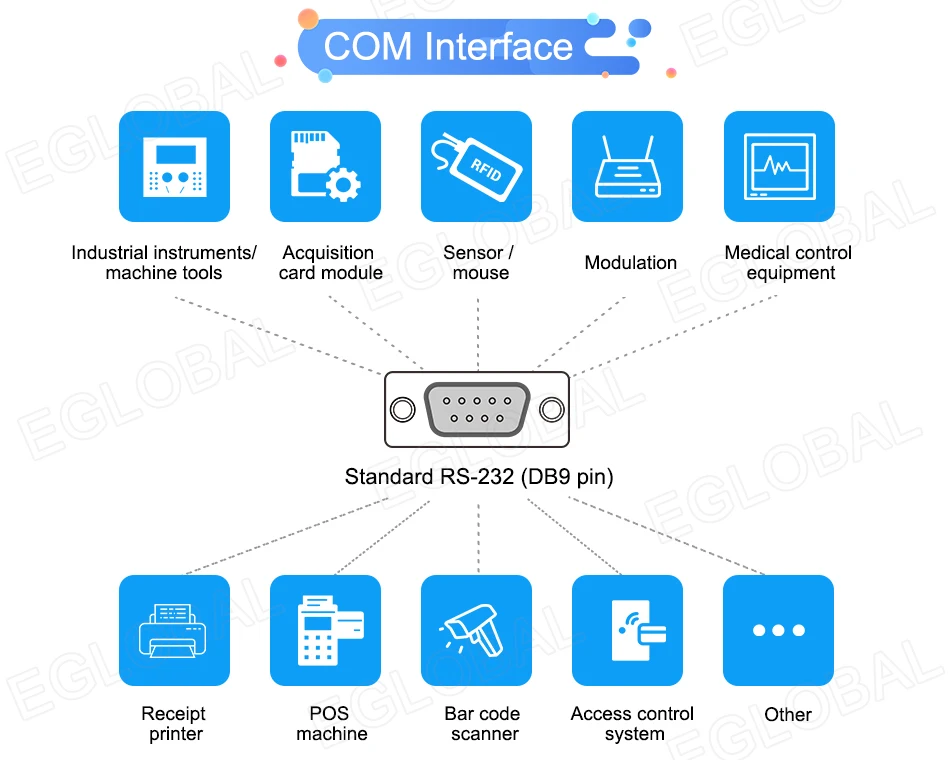

6 x DB9 COM(4xCOM support RS422/RS485)
GPIO
1 x GPIO( 7pin input, 7pin output)

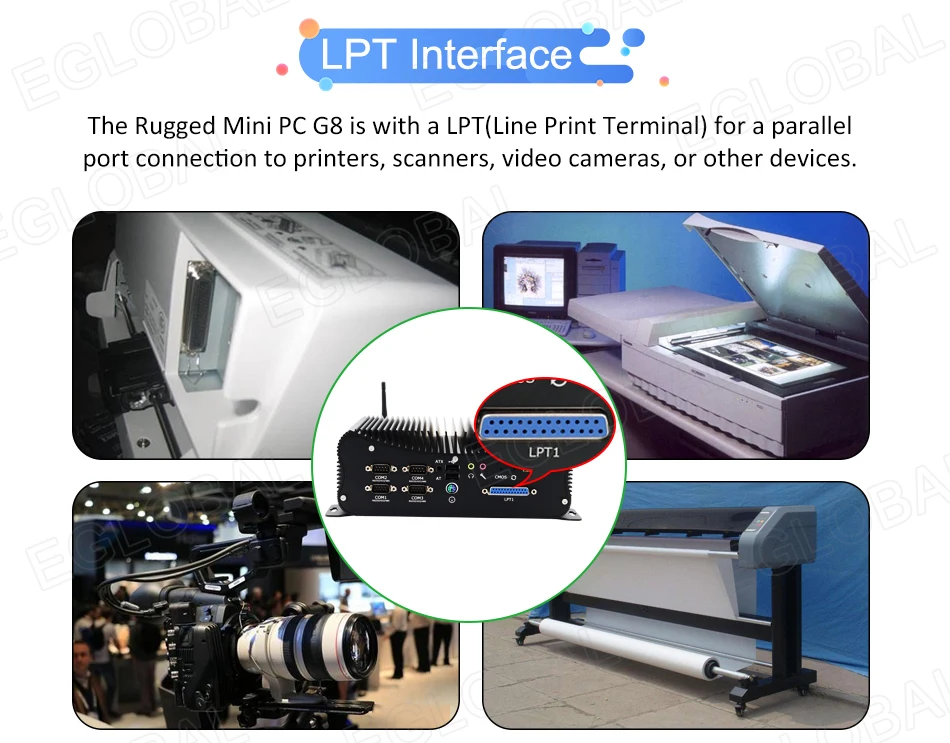

LPT
1 x LPT
Audio
1 x MIC, 1 x SPK
SIM
1 x embedded SIM card slot onboard
Others
1 x Reset, 1 x CMOS clear button, 1 x 2pin Phoenix terminal power supply input

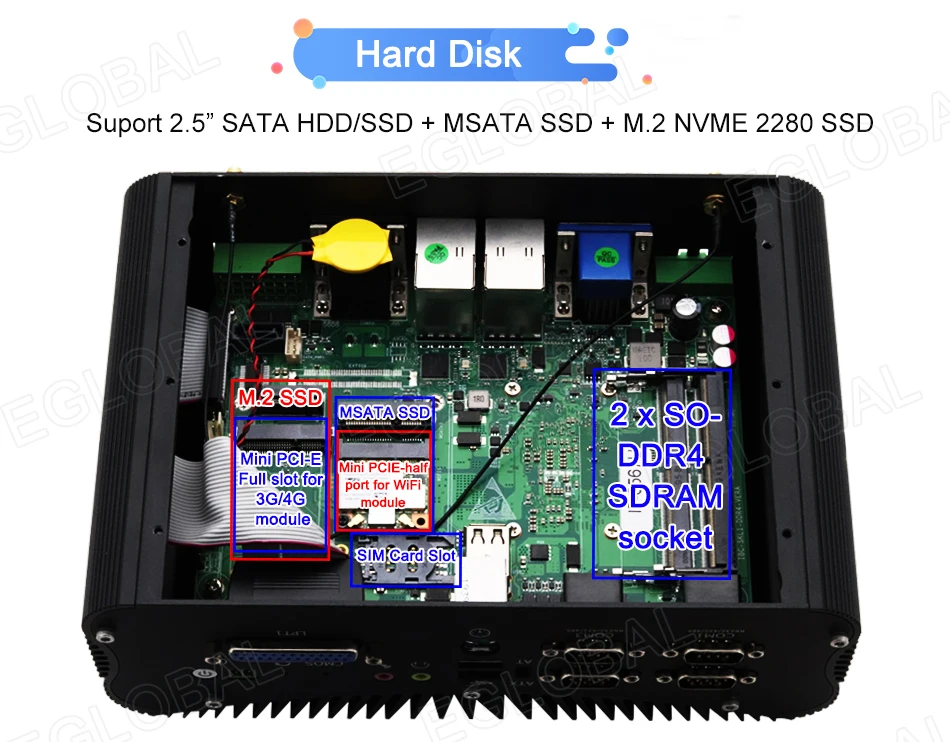

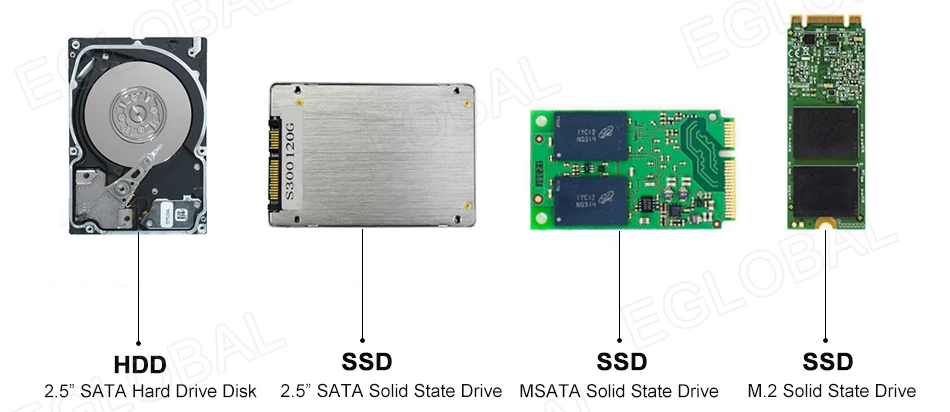

Storage
MSATA
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
1 x M.2 slot for NVME 2280 SSD, support 6Gb/s
SATA
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

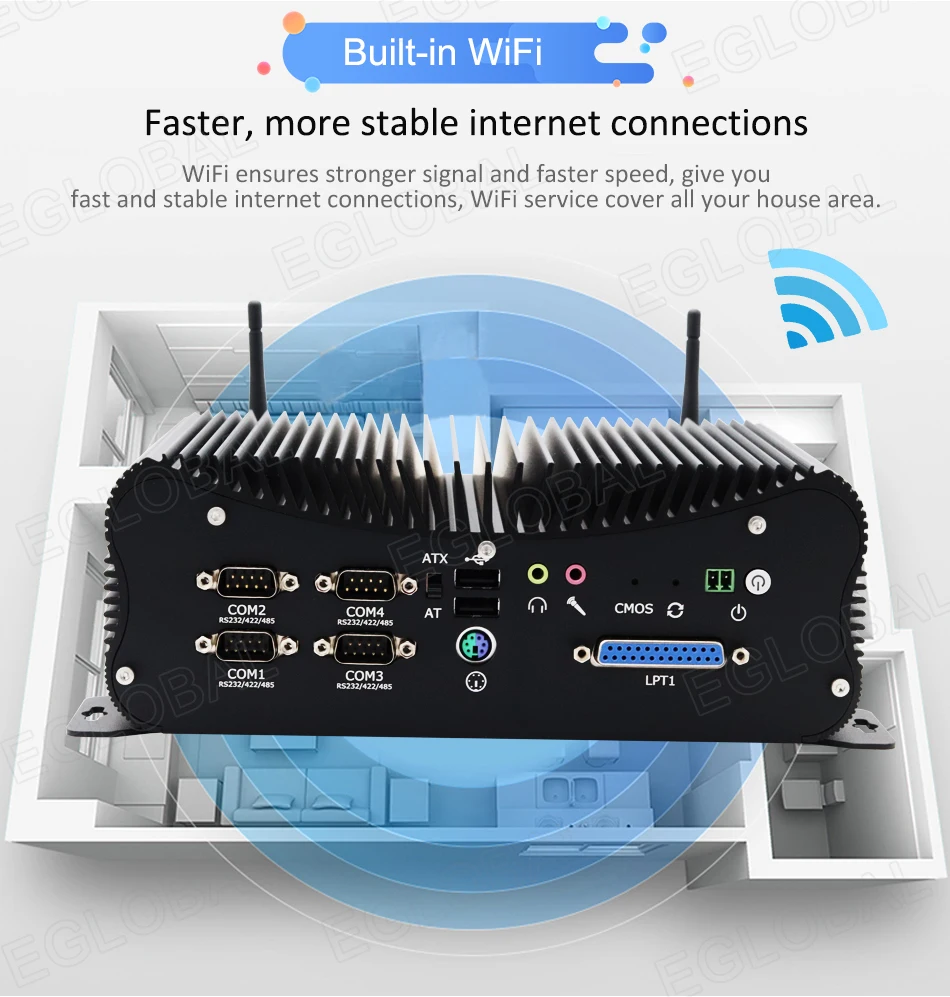

Wi-Fi
Module

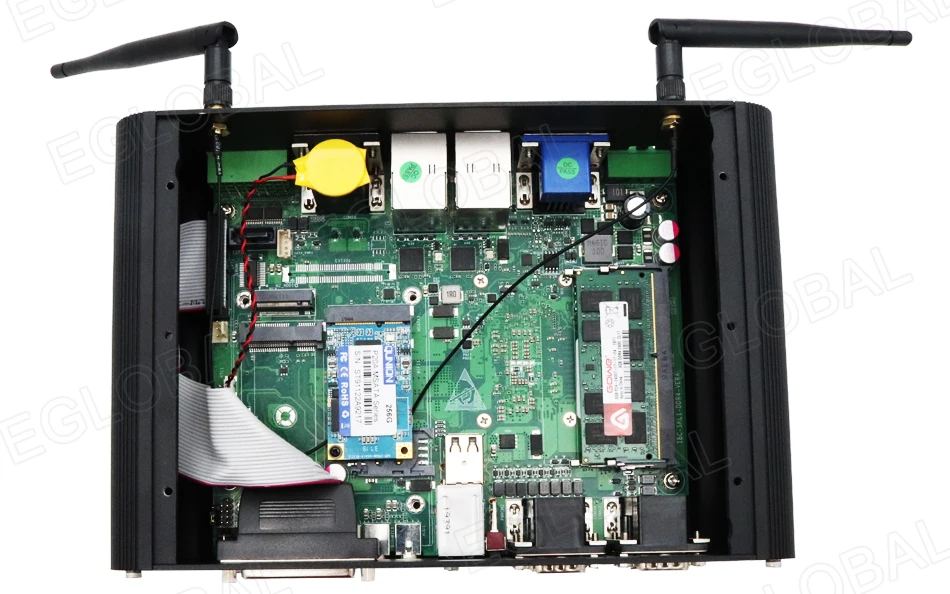

1 x mini PCIE-half port for Wi-Fi/Bluetooth module
1 x mini PCIE-full port for 3G/4G/Wi-Fi/Bluetooth module
1 x Extended IO, support LPC, USB, PCIE
Antenna
2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input
DC100-240V AC/50-60Hz
Output
DC +9V~+36V, recommend 12V/5A
Operating Temperature
-20/+60Centigrade
Storage Temperature
-30/+70 Centigrade
Storage Humidity
10%~90%@30 Centigrade (non-condensing)

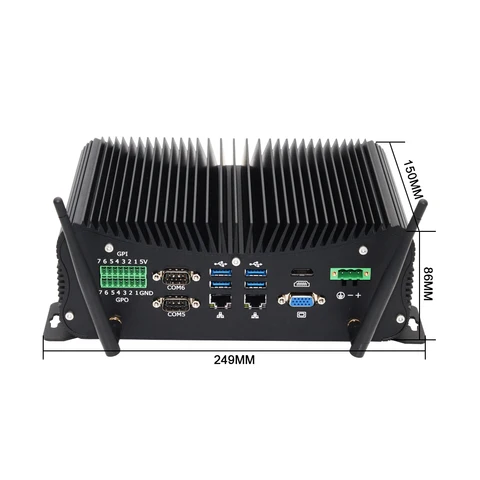

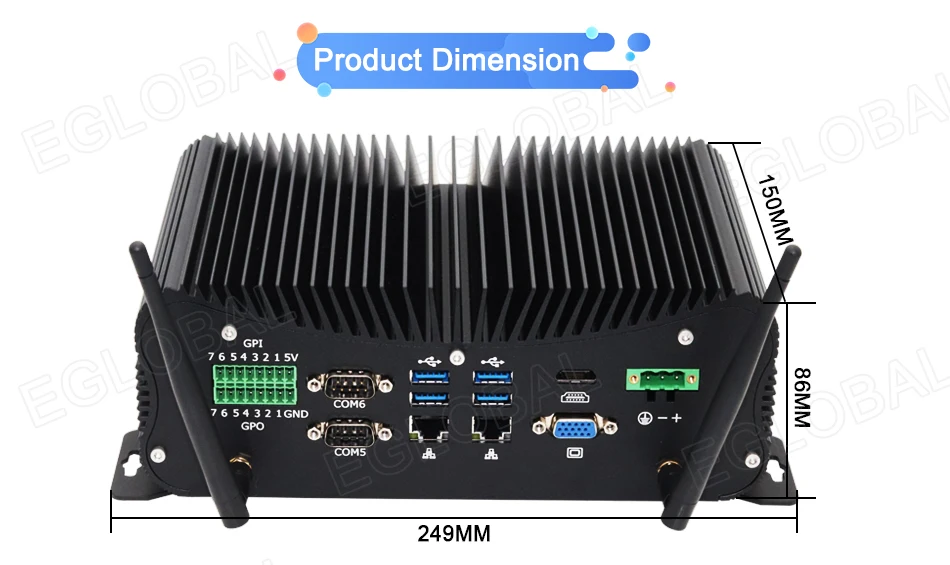

Product Dimension & Details
Size
249*150*86mm
Weight
NW 2.2KG, GW 3.5KG
Shell

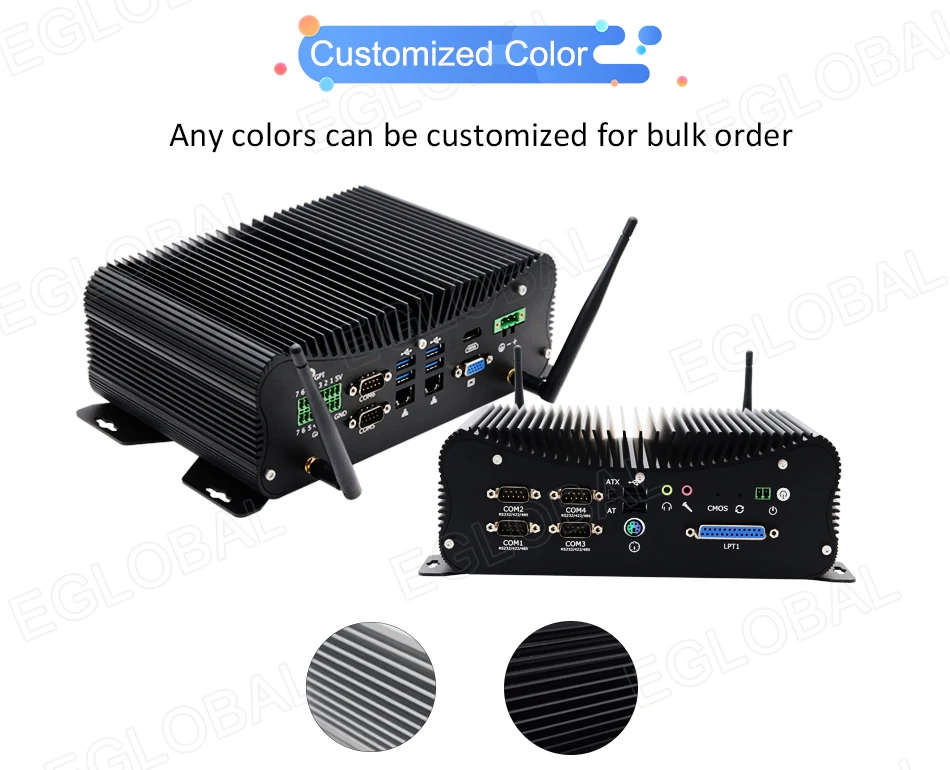

Black color aluminum alloy(any customized color for bulk order)
Mounting

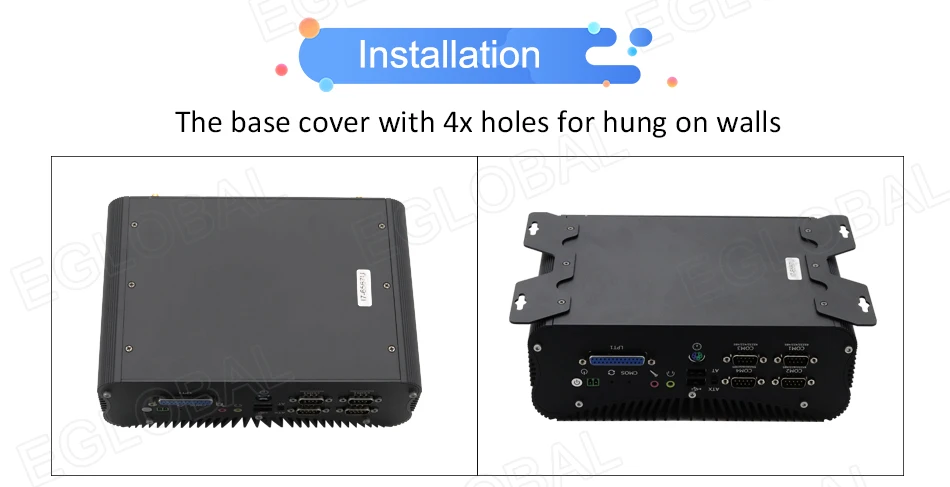

4 mounting holes on case
Cooling Mode
Fanless
Functions

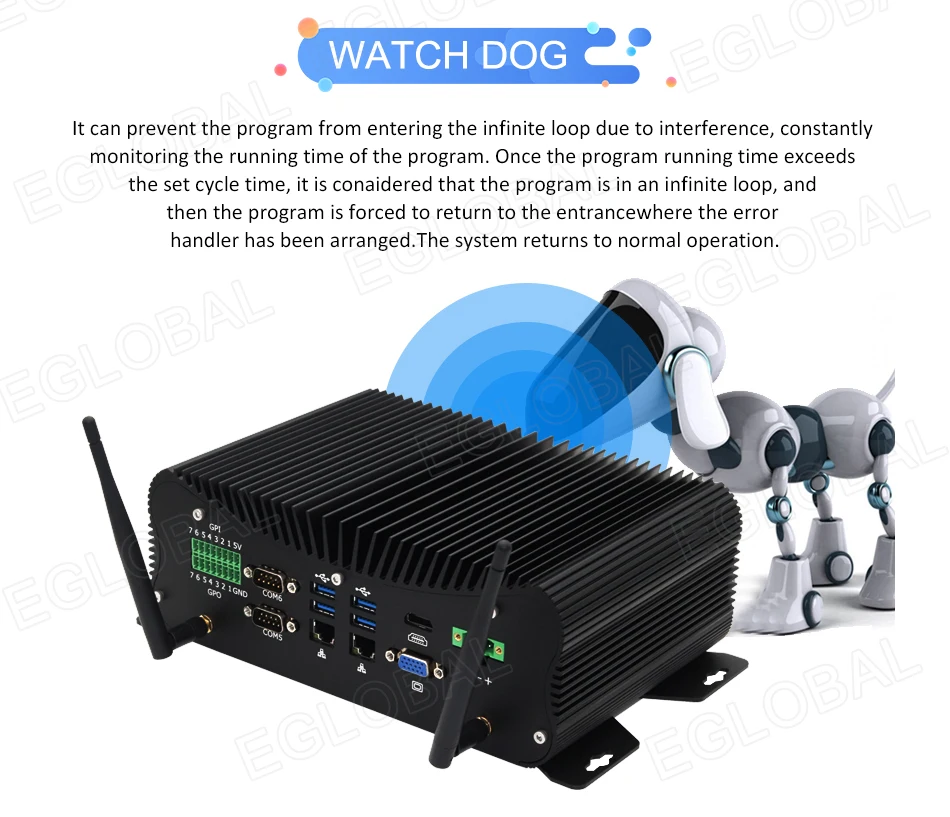

Watchdog, One key reset, AWAL, RTC, WOL(ATX mode)

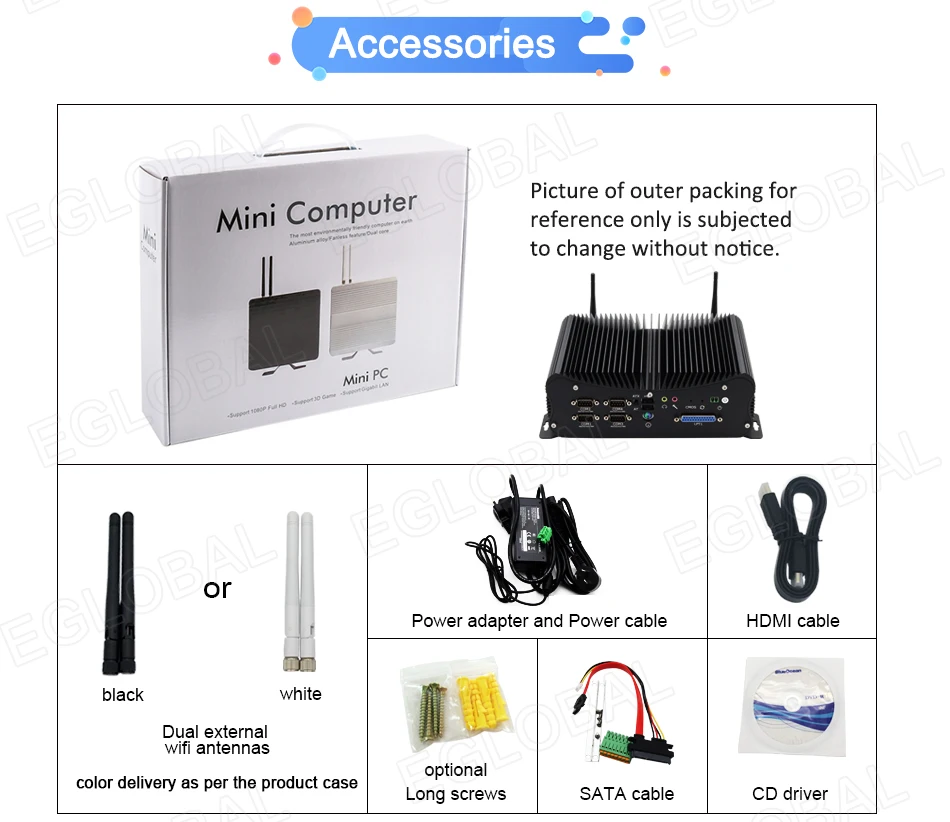

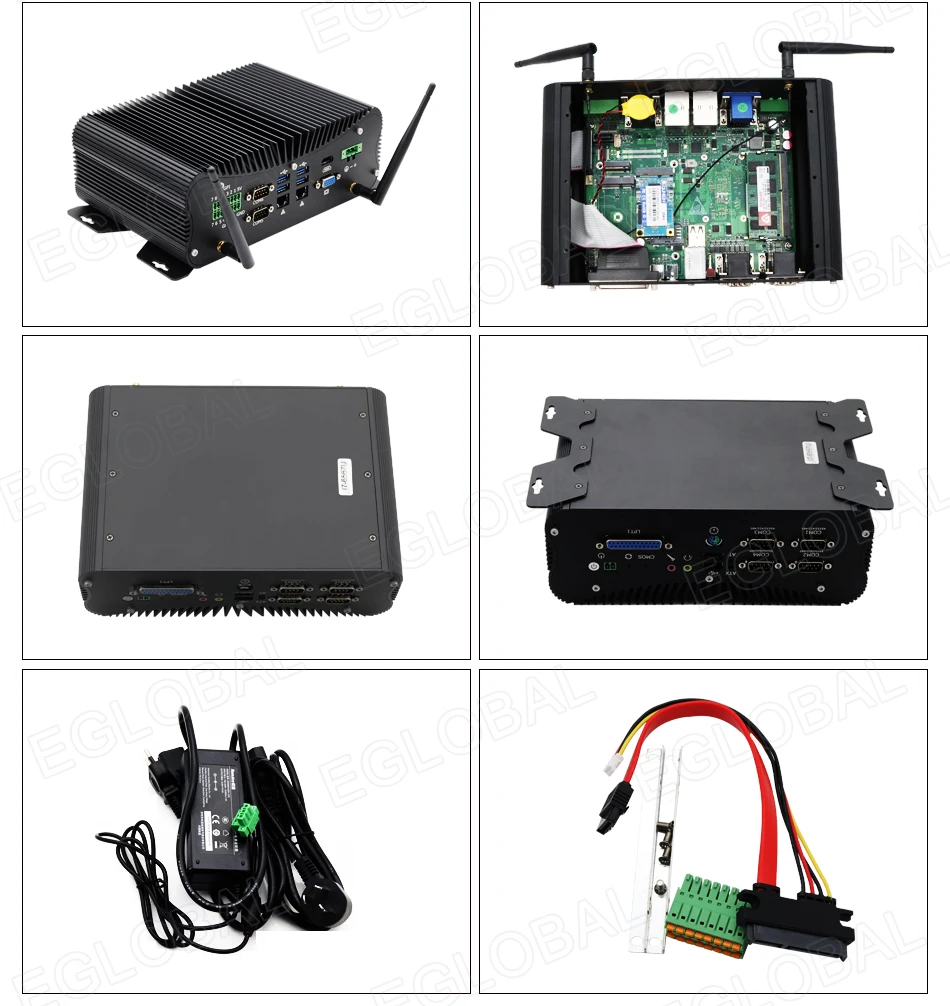

Package Content
Standard

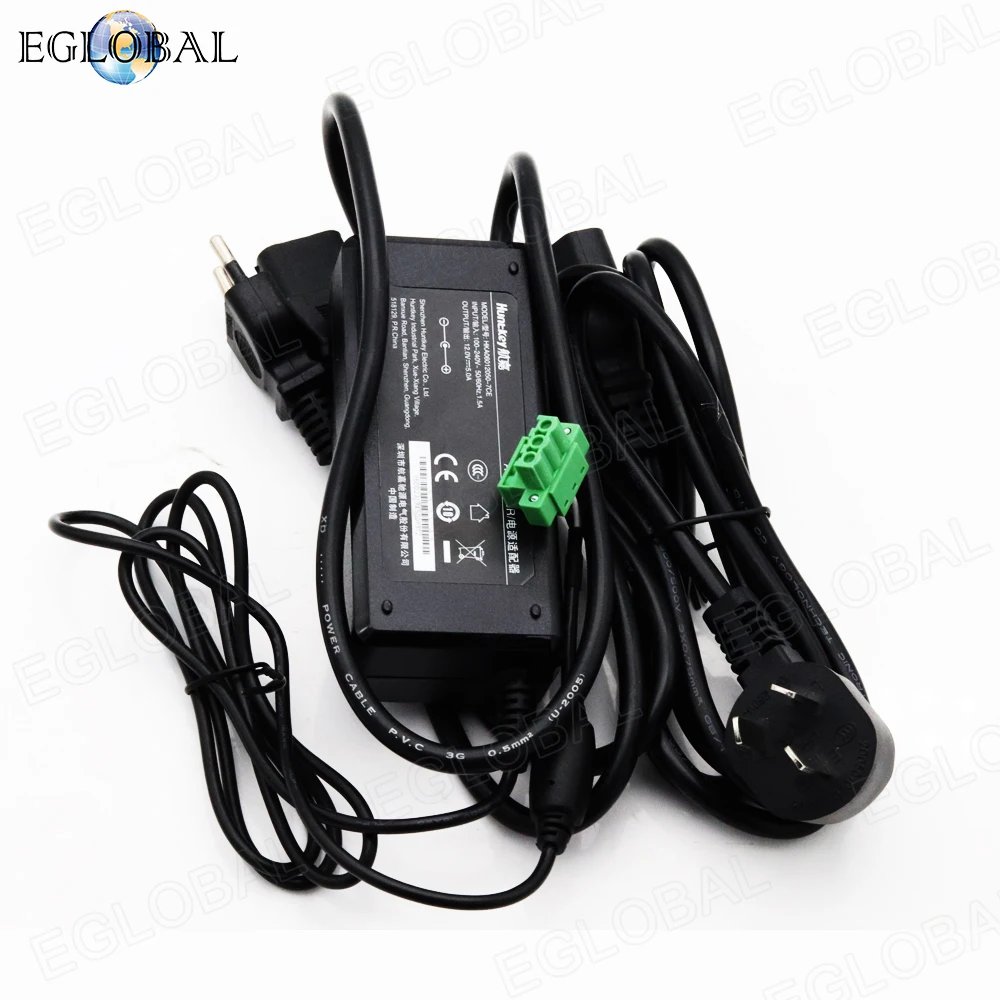

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
CPU: Onboard Intel SKYLAKE 14nm CPU Intel Core i5-6360U 2.0GHz Max 3.1GHz Dual Cores Four Threads 4MB cache TDP 15W Intel® Iris® Graphics 540.
CPU: Onboard Intel SKYLAKE 14nm CPU Intel Core i7-6567U 3.3GHz Max 3.6GHz Dual Cores Four Threads 4MB cache TDP 28W Intel® Iris® Graphics 550.
CPU: Intel KABYLAKE 14nm CPU Intel Core i5-8250U 1.6GHz Max 3.4GHz Quad Core Eight Threads 6MB cache TDP 15W Intel® UHD Graphics 620.
Kindly Remind：
1. Please note the Operating System you need when ordering.
2. If you have any requirment about Commercial Invoice, please let us know.

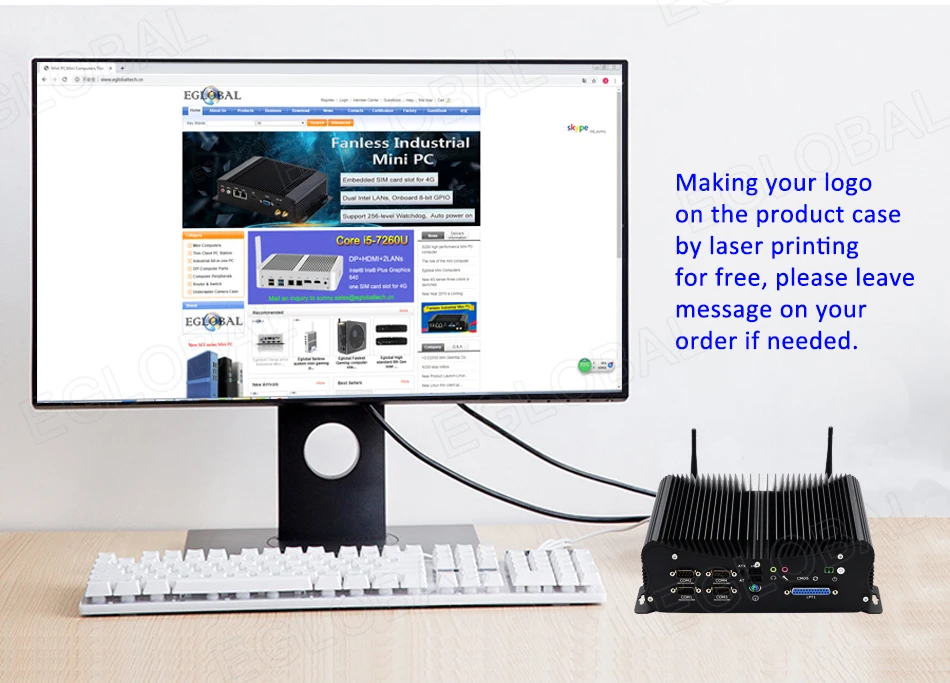

3. If you need printe logo in your mini pc, please send us the HD picture.
4. If you choose the "NO RAM NO SSD HDD", it's belong to barebone system, it can't install the OS if there are no SSD.

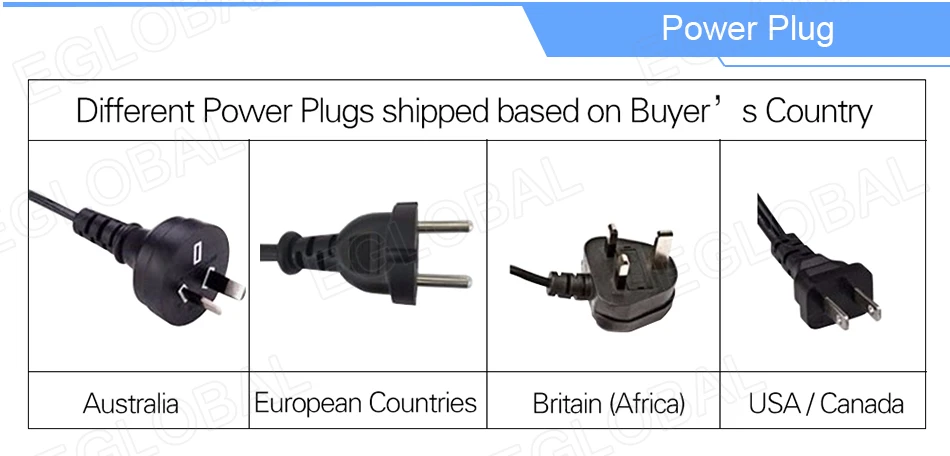

5. Please note the PLUG used in your country when ordering.
6. Please make sure the shipping address, zip code and tel-number are correct before payment.
7. The buyers are responsible for all additional custom fees, brokerage fees, duties, and taxes for importation into your country.
8. All SIM-enabled mini PCs need to purchase additional 3G / 4G modules.
Tips:
1. USB Infrared remote (can turn power off but not on) add extra cost US$14.
2. 300M WiFi uprade to 5GHz AC WiFi&bluetooth, only add extra cost US$5.
3. Bluetooth4.0 USB Dongle add extra cost US$5.
4. External USB DVD-ROM add extra cost $18, External USB Bluray DVD-ROM add extra cost $45.
5. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.
6. Genuine OEM windows license sticker add extra cost 35$.
7. 500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.
Upgrading link:https://www.aliexpress.com/item/4000751894317.html
8. 3G Module add extra $13, 4G Module add extra $43.
(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you upgrade for...)
System:
Free Operating System: Default installed our trial activated OEM windows 10 pro English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is irresponsible and makes no compensation for trial OEM system.
Accessories as Ram, SSD, HDD, we use famous brand:samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison etc, What brand we use depends on our test and our stock.What brand we use depends on our test and our stock. Generally we use Msata SSD installed on Mpcie port and leave the SATA port blank for you to install 2.5'' SSD/HDD.
