Partaker Industrial Fanless Mini PC Intel Celeron 1037U Core i5 3317U Dual-Core Dual Lan 4*COM Support Linux Windows
 |
| Partaker Industrial Fanless Mini PC Intel Celeron 1037U Core i5 3317U Dual-Core Dual Lan 4*COM Support Linux Windows |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -22%New User Deal |
| Product id | 32625040407 |
| Vendor | Partaker Small Computer Store |
| Category | Computer & Office - Mini PC |
Description :
This Mini PC Motherboard can install 2 types of processors:
1. CPU Intel Celeron 1037U/1007U 2 core 2 threads 2MB cache 1.8GHz TDP 17W Graphics HD 2500.
2. CPU Intel Core i5 3317U 2 core 4 threads 3MB cache 1.7GHz Max 2.6GHz TDP 17W Graphics HD 4000.
CPU 1037U/1007U will ship randomly per the stock.
How to select Configuration?
For example:
1. You click " No Ram No Storage" from Color and "Celeron 1037U CPU" from Bundle, we will ship the mini pc with processor 1037U but no ram no storage included and No O/S to you.
2. You click " 8GB Ram 128GB SSD" from Color and "Celeron 1037U CPU" from Bundle, we will ship the mini pc with processor i1037U 8GB Ram 128GB SSD and Windows preinstalled to you.
- CPU: Intel Core i5-3317U Processor 1.70GHz (3M Cache, 2.60 GHz), Intel HD Graphics 4000;
- Memory: Technology Single Channel DDR3 SODIMM ,1.5 Voltage, Frequency 1600MHz or LPDDR3 1866MHz RAM(Max to 8GB) ;Hard Drive:1 x Msata SSD,Support 1 x Msata SSD+1x2.5" HDD/SSD
- Dual Output: HDMI & VGA, saving your time and improving your work efficiency. 4K ultra HD(UHD) video playback, delight in the seamless visual rush of 4K Ultra HD with crisp, life-like images;
- Fanless cooling design, noise-free, 100% solid-state components provide a longer product life cycle. Energy saving. Green, low power consumption, power consumption is only 15W, very economical. 29mm ultra-thin brushed aluminum shell, the cooling effect is very good, the temperature control at 40-50 degrees;
- Default Operating System Version:Windows 10 Pro; Optional Version: Windows 7, 8, Linux Ubuntu.(Pls leave us message after purchased if u do not need Windows10 Pro).
- Processor (CPU): Intel Ivy Bridge i5 3317U, 1.70 GHz, 3 MB cache, up to 2.60 GHz
- Memory (RAM): Supports 2G / 4G / 8G DDR3 memory, Maximum capacity: 8GB
- Socket: 1 * 204-pin SO-DIMM
- Graphics: Intel HD Graphics 4000
- Memory (SATA / mSATA): Supports 2 * 2.5 inch SATA laptop HDD or SDD / 1 * mSATA SSD
- Language: Multilingual
- Power consumption: Theoretically max 15W, real use max. 8.7W, TDP Down 7.5W
- Temperature / Humidity: 0 ℃ to 70 ℃ / 10% -85%
- Material: aluminum housing
What's in the box？
- 1*DVD for drivers
- 1*Mini PC
- 1*Power adapter
- 2* wifi antennas
- 1*Set of SATA power and data cables(for 2.5'' hard drive installation)
- 4*Screw
Free Operating System: Default installed our activated OEM cracked version(not genuine, works good)Windows English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.
Super stable and strong connectivity
With powerful 2.4G + 5.0G dual-band WiFi, 4* 3.0 USB ports and 1000 Mbps LAN fast internet speed. This Mini PC delivers amazingly smooth data transfer. Say goodbye to the annoying pop-up message: you can not connect to the internet.
OEM Windows 10 Professional
The Operating System is activated but not licensed(No key), just for testing the mini computer,Default version : Windows 10 Pro,Optional: Windows 7, 8, Linux Ubuntu; Turn any monitor or TV into a complete PC with this Windows Mini PC. All programs supported by Windows 10 such as Microsoft Office, KODI, VLC, TeamViewer & Skype can be installed without any problems.
Highly efficient Intel Core i5-3317U Processor
The mini PC supports Windows 10 Pro and is equipped with the advanced 64-bit Intel Core i5-3317U Processor, 1.70 GHz (Dual-core processor, 3M Cache, up to 2.60 GHz). It can decode and transfer your data at breathtaking speed. Bring it home, experience its ultra-fast performance to instantly receive your favorite shows and movies.
Chassis cooling
Fanless cooling, noise-free, 100% semiconductor components ensure a longer life of the product. Energy saving, green, low power consumption. 29mm ultra-thin brushed aluminum shell, the cooling effect is very good, the temperature control at 40-50 degrees;
Scalable slot
- Max capacity: 8 GB
- Socket: 1 * 204 pin SO-DIMM
- SATA: Support 2 * 2.5 inch SATA laptop HDD or SSD
- mSATA: Supports 1 * mSATA SSD
- Bluetooth upgrade: Replaceable Bluetooth module, upgrade Bluetooth version
- Memory battery: 3V CR2032 lithium manganese batte
Wide use
Model I2 Fanless mini PC is very versatile, such as: Monitor, Surveillance, TV, Digital Signage, Printer, Projector, etc. It will be a superb mini fanless computer.
| Model | I2 Fanless PC |
| General | |
| CPU | Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz) |
| GPU | Intel® HD Graphics 4000 |
| Graphics Card | Integrated high-performance graphics,HD video Support Support VGA HDMI synchronous / asynchronous display |
| RAM | Support DDR3 1333/1600MHz 1 x DDR3 DIMM Memory Slot Max. Supports up to 8GB Memory |
| Hard Disk | Support 1*Mini PCIE Msata SSD+1* 2.5" HDD/SSD (SSD Max.512G, HDD Max. 1.5TB) SSD: 8G/16G/32G/64G/128G/256G/512G HDD: 80G/160G/320G/500G/640G/750G/1TB Can install 1SSD(OS)+1HDD(Data saving) |
| Network Card | Dual Intel 82574L Gigabit Network Card |
| I/O Ports | |

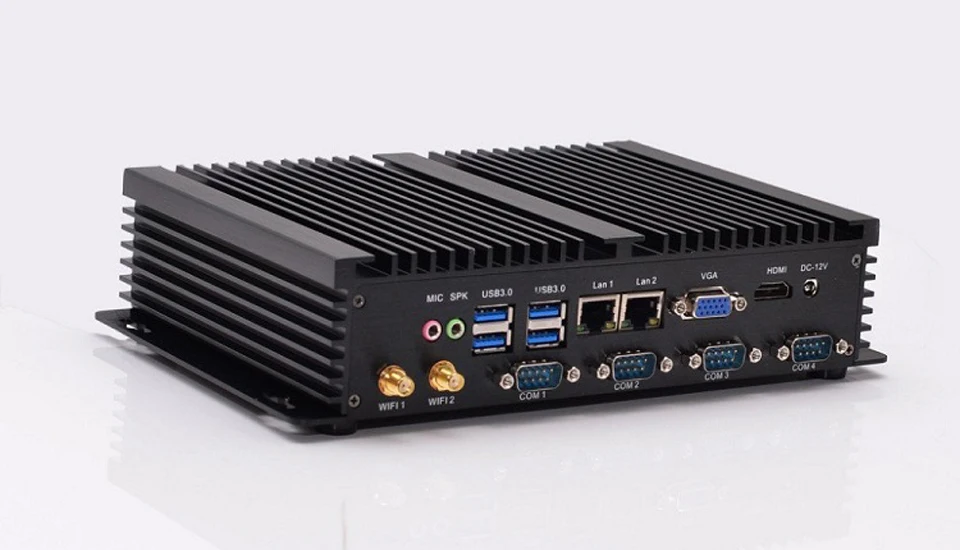

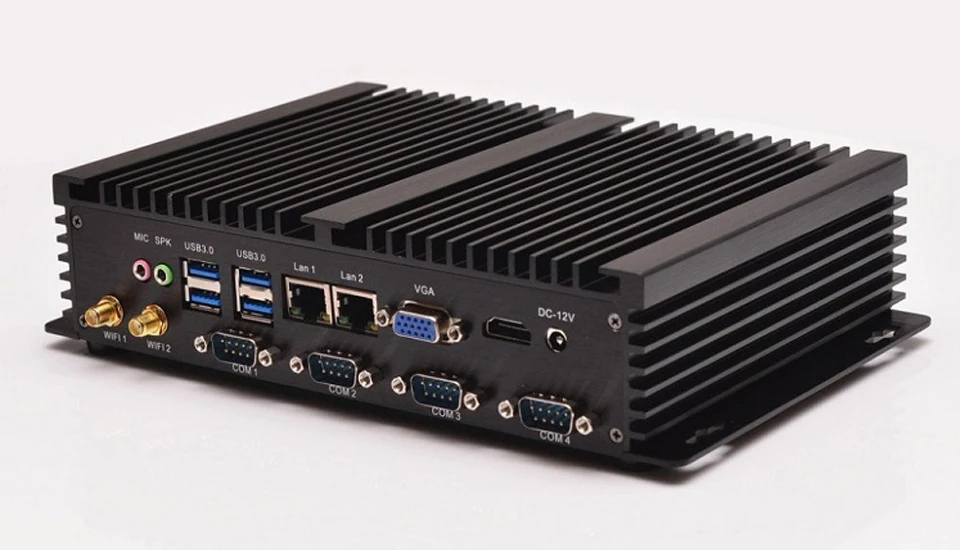

| I/O Port | 4*USB 2.0, 4*USB3.0, 4*COM, 2*RJ 45Lan port gigabit , 1*HDMI 1*VGA 1*MIC, 1*SPK, 1*DC-IN jack, 1*On/Off Power Switch |
| Product Dimension&Details | |
| Operating System | Windows (OEM) or Linux |
| WiFi | 802.11.b/g/n(150M or 300M Optional) |
| Size | 234*150*43MM |
| Weight | NW: 1.5KG; GW: 2.5KG |
| Package Box | Neutral Color Box or INCTEL Color Box |
| Content | Mini PC device, Power Adapter, Desk base, Antennas(For WiFi Optional) |
About Power Cord:
We will ship the type of power cord, based on your area.
