Newest Kaby Lake R 8Gen Fanless mini pc i3 8145U Intel UHD 620 win10 Dual Core 4 Threads DDR4 2400 2666 NUC
 |
| Newest Kaby Lake R 8Gen Fanless mini pc i3 8145U Intel UHD 620 win10 Dual Core 4 Threads DDR4 2400 2666 NUC |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | |
| Product id | 4000385129895 |
| Vendor | Airun PC Store |
| Category | Computer & Office - Mini PC |
Description :

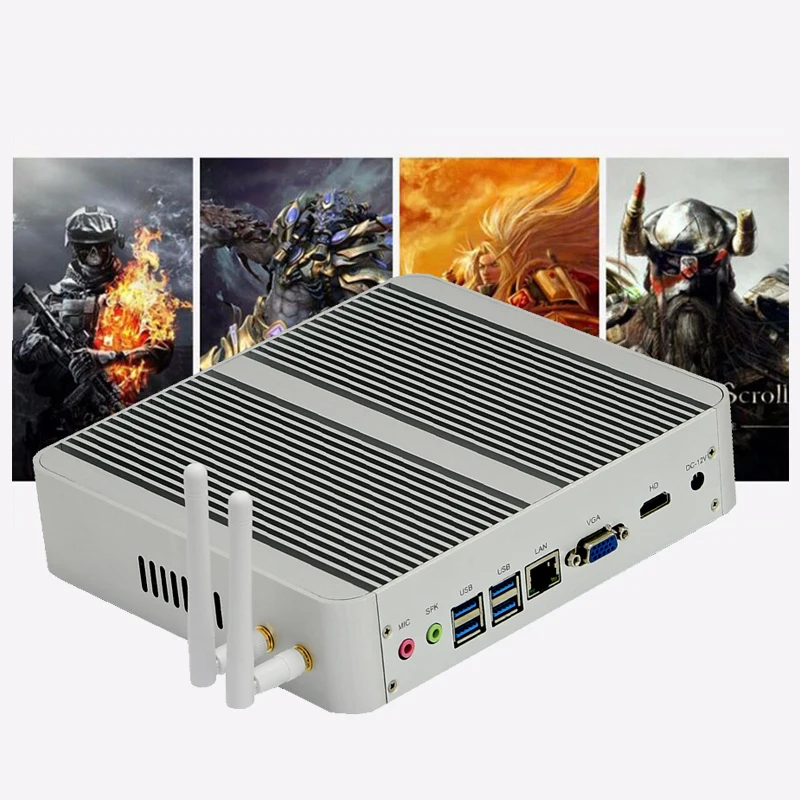

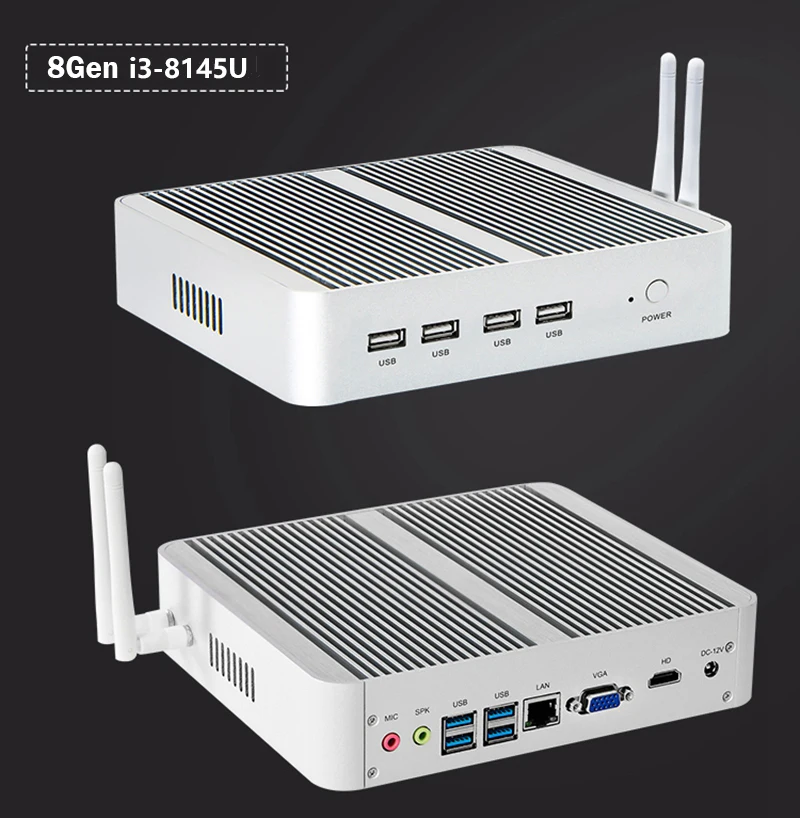

Fanless mini pc Equipped with Intel KabyLake i3-8145u onsale
i3-8145U CPU:2.10GHz Max turbo to 3.90GHz DualCore 4 Threads
GPU:Intel UHD Graphics 620
USB3.0*4 USB2.0*4 MIC SPK Dual antenna(300M wifi)
Gigabit Lan HDMI VGA DC in
Weight: 2.4KG
Size: 21*17*4.5CM
Motherboard:
Detailed parameters:
|
| ||
| Processor | CPU | Core™ i3-8145U |
| Speed | Processor Base Frequency 2.10 GHz Max Turbo Frequency 3.90 GHz | |
| Chipset | Intel Kaby Lake R | |
| Memory | Technology | Dual Channel DDR4 2133/2400 MAX to 32GB RAM |
| Max capacity | 32GB | |
| Socket | 2*260 pin SO-DIMM | |
| Graphics | Chipset | Intel UHD Graphics 620 |
| VRAM | 2GB | |
| Interface | VGA 1080P + HDMI 4K output | |
| Ethernet | Lan | 1* RTL8186/8111/8112 Gigabit NIC |
| WAN | Half Height Mini PCI-e wifi + 2 external antennas | |
| Audio | High Definition Audio Controller, SPK+MIC ALC892 | |
| IO Interface | Serial Ports | NO |
| USB interface | 4 USB 3.0 ports and 4 USB 2.0 ports | |
| Storage | SATA | Support 1*2.5 inch SATA laptop HDD and SDD NGFF port*1 |
| mSATA | Support 1*MSATA SSD | |
| System Support | Windows 8, 10 ubantu contos | |
| Power Requirement | Power Type | External power adapter mode |
| Power adapter | 12V 5A | |
| Power Consumption | TDP | 15W |
| TDP Down | 7.5W | |
| Mechanical | Construction | Aluminum housing |
| Mounting | 4 wall mounting hole | |
| Dimensions | 21*17*4.5CM | |
| Weight | NW 1.25kg, GW 2kg | |
| Operating Environment | Temperature | Unknown to Max 100 Centigrade |
| Humidity | 10%-85% | |
Market positioning:
1 living room HD computer TV in the living room below , as the network after connecting TV movie player , Internet , and viewing photos to use , but also can download machine , download movies ( large capacity drives )
2 business office preferred . Online shopping mall , shop office use, environmentally friendly energy , save electricity . Only28w power down , corporate offices , saving space. Many advantages , the typical business office committed to make.
3 rooms dedicated computer -aluminum exterior , elegant, upscale . Placed hotel is very convenient , all- solid-state design , not damaged, no dry sound , low power consumption , energy saving.
4 education industry dedicated computer terminal than the low clouds have better performance , easier software compatibility , better color , faster , more suitable for the education sector .
5 industrial computers designed for industrial users reservation and serial port, and the design of the machine , can be fully qualified for industrial applications , all solid-state design, all quiet design , the overall board design are taking into account the needs of industrial users .
6 users call center has a large number of mature applications
1*Mini pc
1*Power adapter
1*Desk bracket
1*Set of SATA power and dat cables(for 2.5"hard driver installation)
Dual wifi antennas
We pack our product very well, we make sure the safe arrival of the goods!!!
Package Size about34*10*26CM.
Attention please:
1.Our new product equip with a stent, if you used the stend the temperture will drop off 40%. If you dont use the stent, As it has no fan, the temperature will be little high, But don’t worry, we have test it nonstop running for 270 hours. Make sure it’s safe and reliable.
2.Any question please contact me, we’ll answer you as fast as I can! TKS a lot!
Best wishes from China.
