Low Cost 8.4 Inch Touch Screen Industrial Tablet PC IP65 Fanless Design With 800x600 Resolution 3xUSB2.0 For Factory Automation
 |
| Low Cost 8.4 Inch Touch Screen Industrial Tablet PC IP65 Fanless Design With 800x600 Resolution 3xUSB2.0 For Factory Automation |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | |
| Product id | 32871995552 |
| Vendor | Shenzhen Ling Jiang Computer Technology Co., Ltd. |
| Category | Computer & Office - Mini PC |
Description :
Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store
Bulk Order !!!
More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.

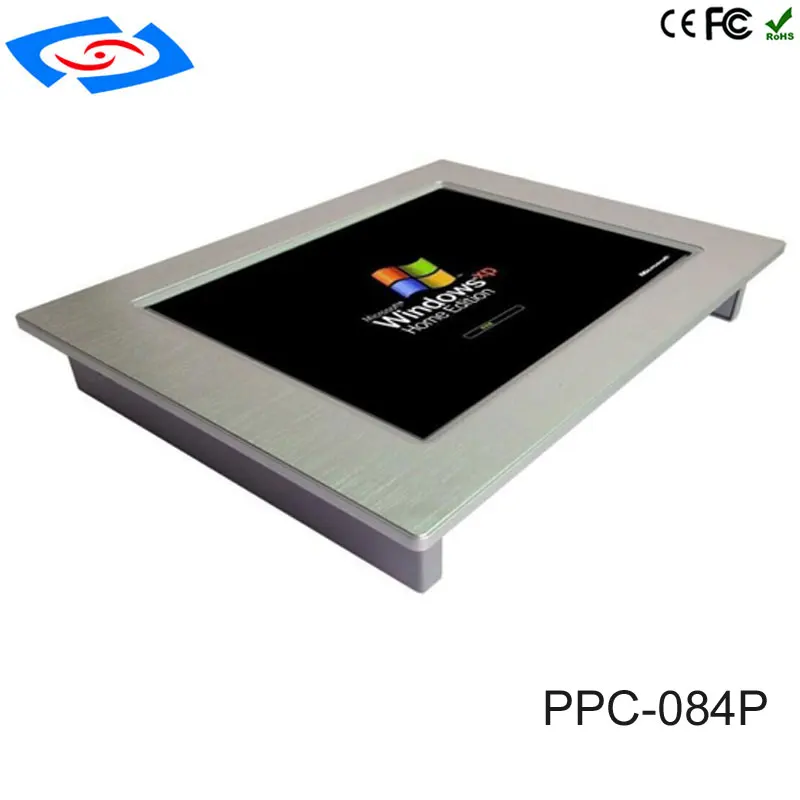

Low Cost 8.4 Inch Touch Screen Industrial Tablet PC
IP65 Fanless Design With 800x600 Resolution
3xUSB2.0 For Factory Automation
Orderssssssss!!!!!!
Product Description
8.4 " Industrial Tablet
1, Precision Resistive Touch Screen, Resolution 800x600.

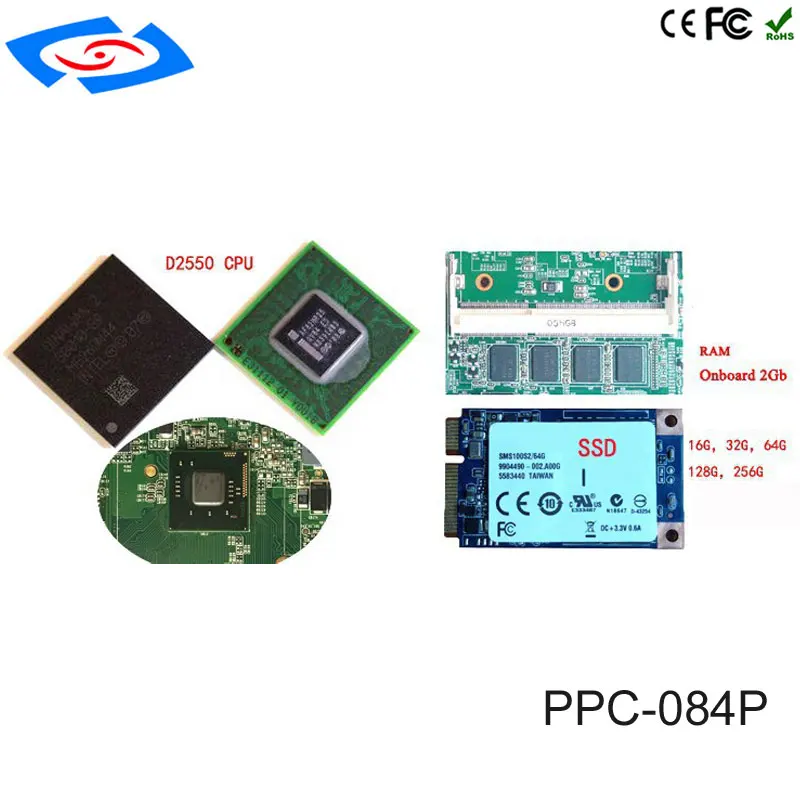

2, Dual Core High Performance Processor, DDR3 Dual Channel Memory, Solid State Disk(SSD)
3, Using Aluminum Alloy Casing, Solid, Meguiar, Durable
4, Gigabit RJ45 LAN Port, VGA Display Output, Double COM RS232/RS422/RS485 Interface
5, Upgrade The 3G/4G/LTE/WiFi Features

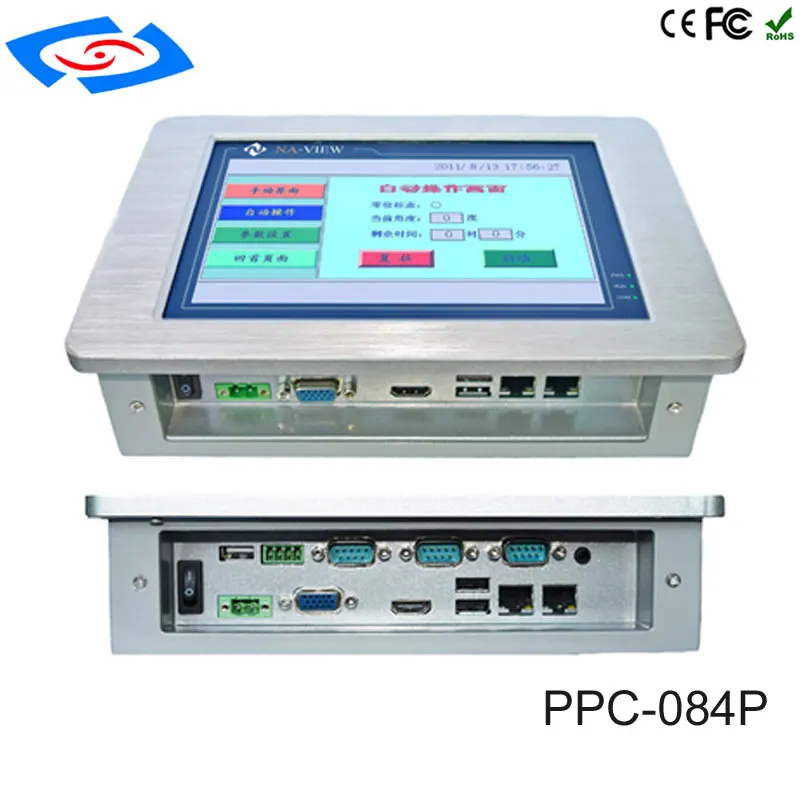

Model: PPC-084P
Standard: Intel Atom N2800 Processor, 8.4" Touch Screen,
800x600 Resolution,
RAM 2G SSD 32G (Win7 32Bits OEM),
3xUSB2.0/4xCOM/2xLAN/1xVGA/1xHDMI/
Accessories: 12V5A Power Adapter,(Optional European Plug British Plug Amercican Plug)
Embedded Mounting Buckle
Optional: RAM 4G,SSD 64G/128G/256G 3G/4G/LTE/WiFi Module.
HHD 320G/500G/1TB etc.
| Features | |
| Model Name | PPC-084P |
| Display | |
| Size | 8.4" |
| Resolution | 800×600 |
| Brightness | 350cd/m2 |
| Contrast | 400：1 |
| Touch Screen | 4-wire China Resistive Touch Screen |
| LCD screen | Industrial LCD Display |
| System | |
| CPU | Intel Atom N2800 Dual Core 1.86GHZ，CPU Power Consumption 6.5W |
| Chipset | Intel Atom N2800+NM10 |
| Memory | Onboard 2G Optional DDR3 2G MAX 4G |
| Storage | SSD 32G（Up to 64G/128G/256G） Optional 2.5 Inch SATA HDD 320G/500G/1TB etc. |

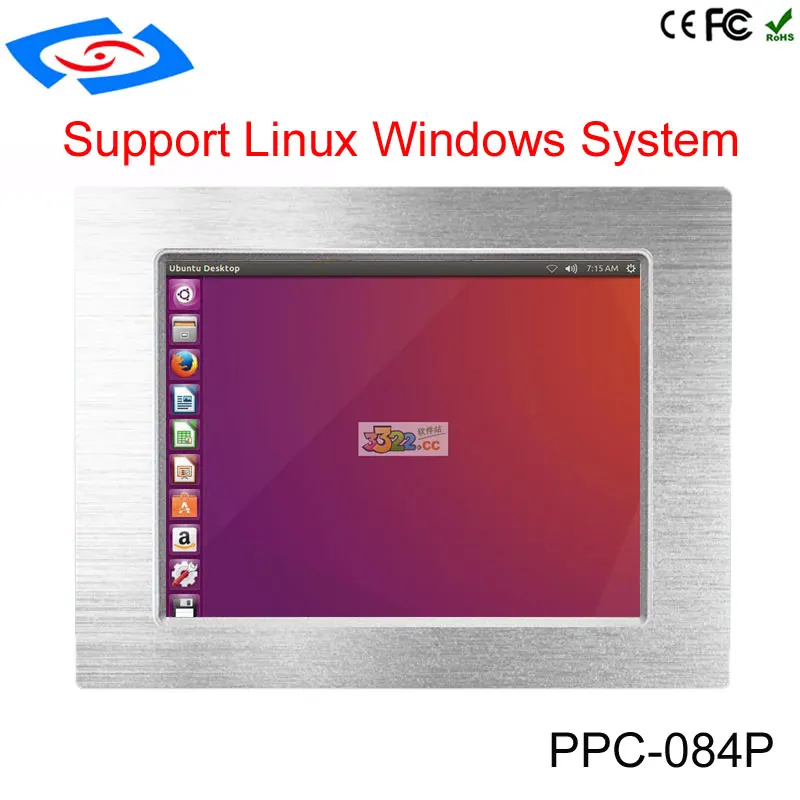

| System | XP/Win7/Win8/Win10/Linux |
| I/O | |
| Lan | 2×10/100/1000Mbps RJ LAN,Lan chip RTL8111E |
| Serial Port | COM1×RS485/RS422（default RS485 with Optical isolation ）, COM2-COM3×RS232/485（default RS232） COM4×RS232（optional add 2 RS232） |
| USB | 3×USB2.0,（optional add 3×USB2.0） |
| Display | Integrated Intel GMA3650，1×VGA、1×HDMI |
| Audio | Integrated ALC662, optional 1×MIC-in,1×Line-out/2W Built-in speaker |
| Others | 1×GPIO（optional）, 1×LPT（optional）, 1×PS/2（optional） |

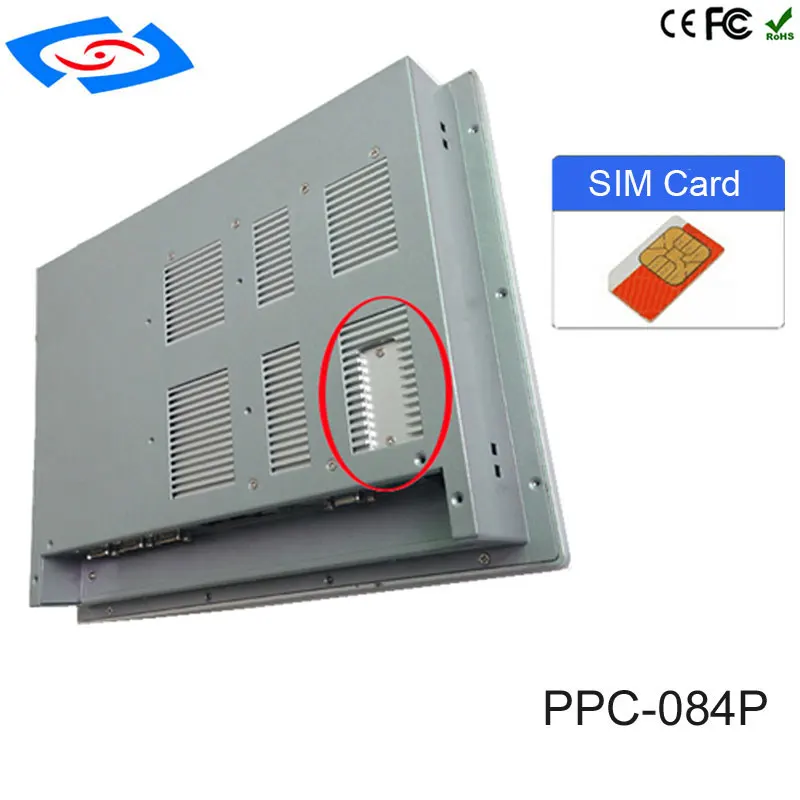

| Patulous Option | 1×SIM，2×min-pcie(wifi/3G optional） |
| Watchdog Timer | 1-255s，Programmable |
| Thermal methods | Fanless |
| Consumption | less than 15W |
| Working Temp. | -20℃-60℃，Humidity 5%-90%（Non-condensing） |
| Storage Temp. | -20℃-60℃，Humidity 5%-90%（Non-condensing） |
| Power | Wide voltage 9V～25V，12V/5A Power adapter |
| Switch ON/OFF | Switch |

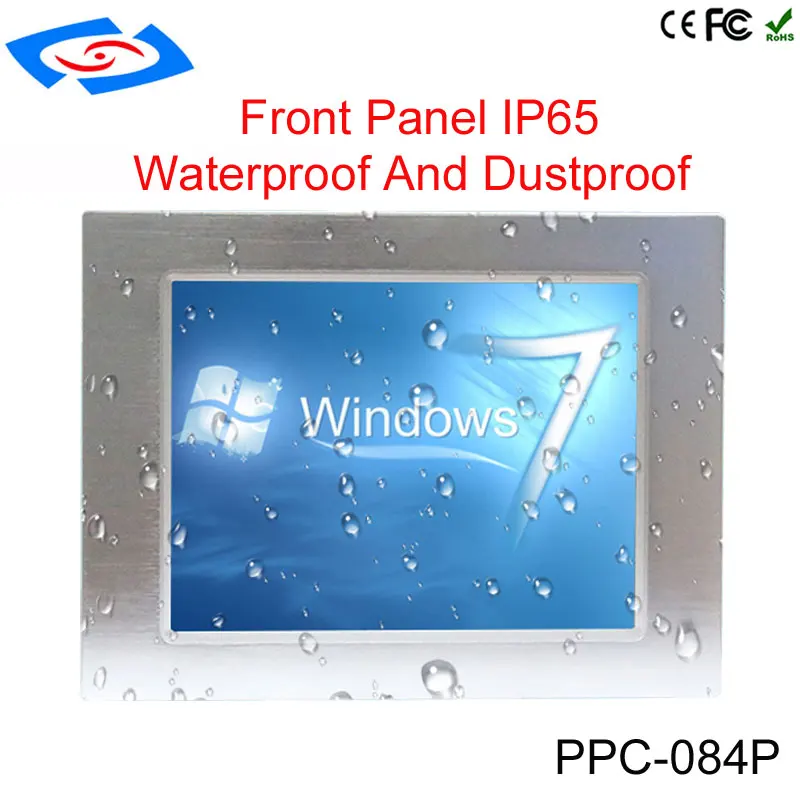

| Shell Material | High-strength aluminum brushed pane;IP65；Spray painting |
| Color | Silver |
| Net Weight | 1.95kg |
| Installation | Embedded mounted,VESA rack mounted |

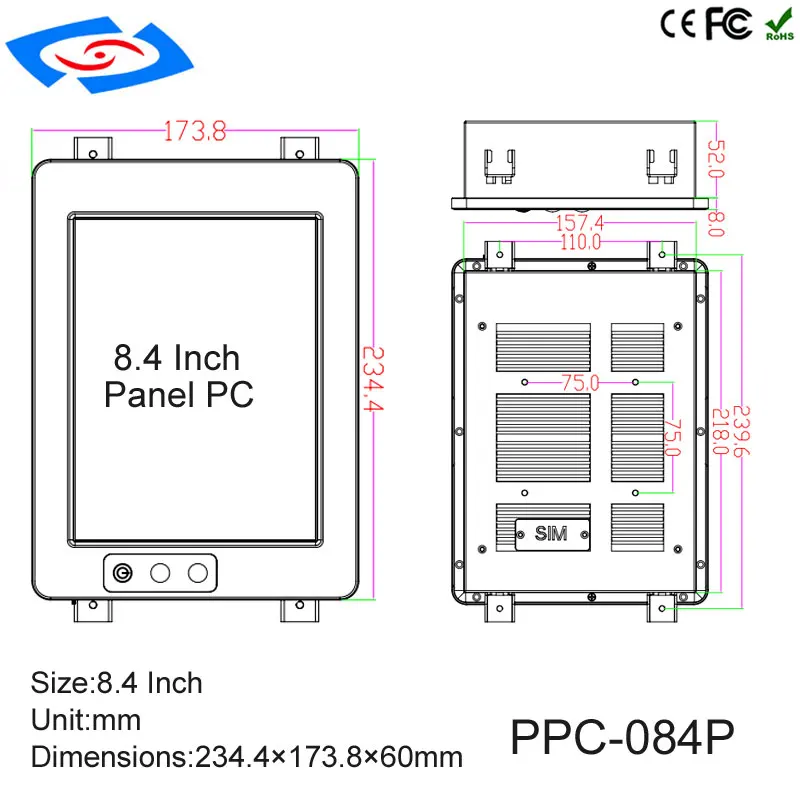

| Dimensions(mm) | 234.4×173.8×60 |
| Hole size（mm） | 218×157.4 |
| Warranty | |
| Warranty | 12 months |
| Order information | |
| Model Name | PPC-084P |
| Standard | Intel Atom N2800 CPU Dual Core 1.86G/RAM 2G/SSD 32G Win7 32 Bits OEM/Resolution 800×600 /3×USB/4×COM/2×LAN/1×VGA/1×HDMI |
| Accessories | 12V/5A Power Adapter，Power Line，4 Sets Embedded Install Button,RS485 Sonnector |
| Optional | RAM 4G/ SSD 64G/128G/256G 3G/WIFI LPT/PS2 AUDIO/ Built-in speaker etc. |
About packing:
1,Modular packaging,all Panel PC are in box,scientific packaging design, each part carefully protected to ensure safe arrival.
About feedback:
1,If you are satisfied with panel PCS,please leave a positive feedback to us. Thanks in advance
2,If you are not satisfied for any reason,please contact us before leaving feedback,we will work with you to help you solving any problem until you are satisfied.
Check This Video Reviews Low Cost 8.4 Inch Touch Screen Industrial Tablet PC IP65 Fanless Design With 800x600 Resolution 3...
Check This Video Reviews Low Cost 8.4 Inch Touch Screen Industrial Tablet PC IP65 Fanless Design With 800x600 Resolution 3...
Best Price Comparison With Low Cost 8.4 Inch Touch Screen Industrial Tablet PC IP65 Fanless Design With 800x600 Resolution 3xUSB2.0 For Factory Automation
Low price Mini Pcie Converter Mini Pcie to LAN Rj45 Connector 10/100/1000Mbs
Buy Now On Aliexpress
Hot sale cheap Mini PCIE to LAN Connector with cables
2018 HOT Sale low price Mini Pcie to LAN Connector INTEL 82583V
low cost intel celeron J1900 processor itx industrial motherboard 3*USB for vending machine
Buy Now On Aliexpress
170*170 Mini ITX Industrial Motherbroard Support DDR3+Mini Pcie slot + rPGA 988 socket model PCM5-QM77
Buy Now On Aliexpress
single 6 channel or 8 channel LVDS to VGA or DVI signal converter
Converter Mini Pcie to LAN Rj45 Port 1000Mbs (MPCIE-RJ45)
Factory Low price Mini Pcie to LAN Connector 1000Mbs with INTEL 82583V Support 10/100/1000 Mbs
Buy Now On Aliexpress
Partaker Fanless Mini Computer i7 8550U/7560U i5 8250U/7260U 2*DDR4 Msata+M.2 SSD Micro PC Win10 Pro Barebone HTPC Nuc VGA HDMI
Buy Now On Aliexpress

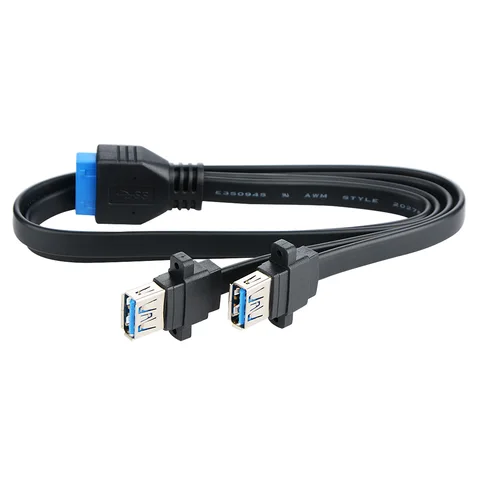

0.3M/0.5M Dual Ports Computer Cable Cord USB 3.0 Female Screw Panel Mount to Motherboard 20 Pin Header Flat Cable Cord
Buy Now On Aliexpress
300Mbps In Wall AP Repeater WiFi Wall Socket Router Access Point Wireless Wall AP RJ45 220V PoE WiFi Extender USB Chargin Router
Buy Now On Aliexpress

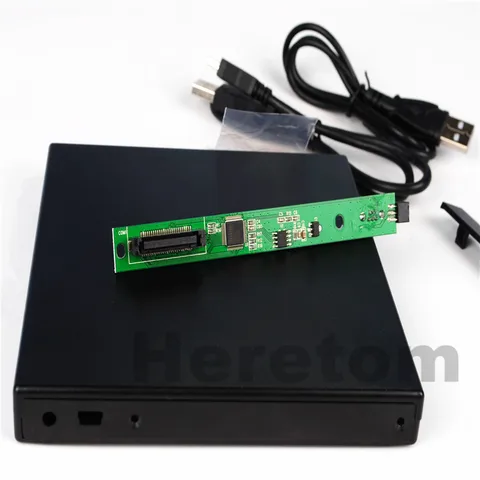

Heretom 12.7mm USB 2.0 External DVD/CD-ROM Case IDE/ PATA to SATA Optical Disk Drive External DVD Enclosure For Laptop PC
