Factory Store Low Price 8.4 Touch Screen Fanless Industrial Panel PC With Processor Intel Core I5-3317U Optional I7-3517U
 |
| Factory Store Low Price 8.4 Touch Screen Fanless Industrial Panel PC With Processor Intel Core I5-3317U Optional I7-3517U |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | |
| Product id | 32865130236 |
| Vendor | Shenzhen Ling Jiang Computer Technology Co., Ltd. |
| Category | Computer & Office - Mini PC |
Description :
Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store
Bulk Order !!!!!!!
More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.
Factory Store Low Price 8.4" Touch Screen Fanless
Industrial Panel PC With Processor Intel Core I5-3317U
Optional I7-3517U
Orderssssssss!!!!!!
Product Description
8.4 " Industrial Tablet
1, Precision Resistive Touch Screen, Resolution 800x600.
2, Dual Core High Performance Processor, DDR 3 Dual Channel Memory, Solid State Disk(SSD)
3, Using Aluminum Alloy Casing, Solid, Meguiar, Durable
4, Gigabit RJ45 LAN Port, VGA Display Output, Double COM RS232/RS422/RS485 Interface
5, Upgrade The 3G/4G/LTE/WiFi Features

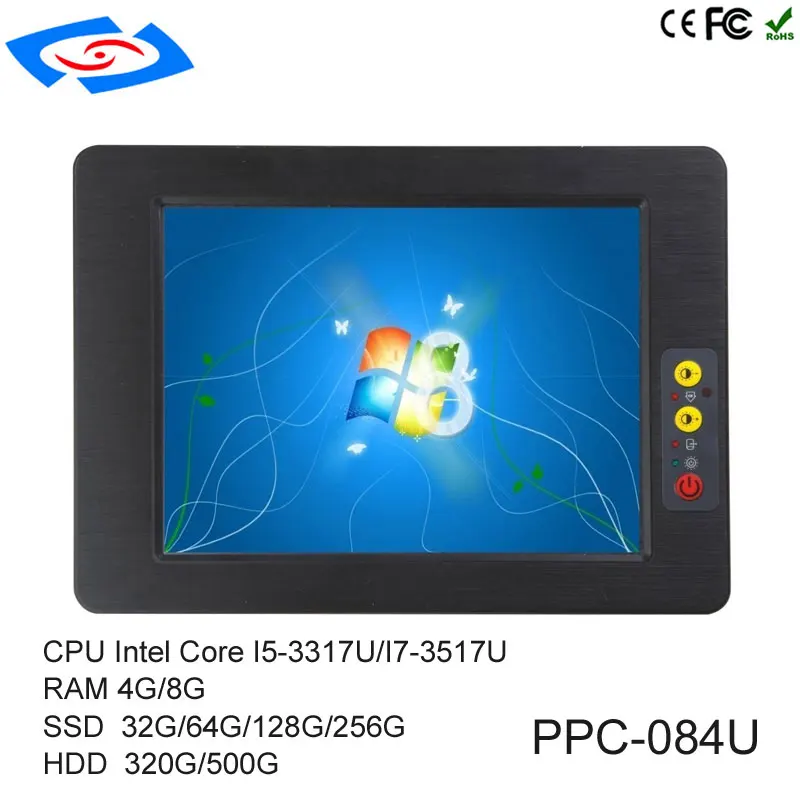

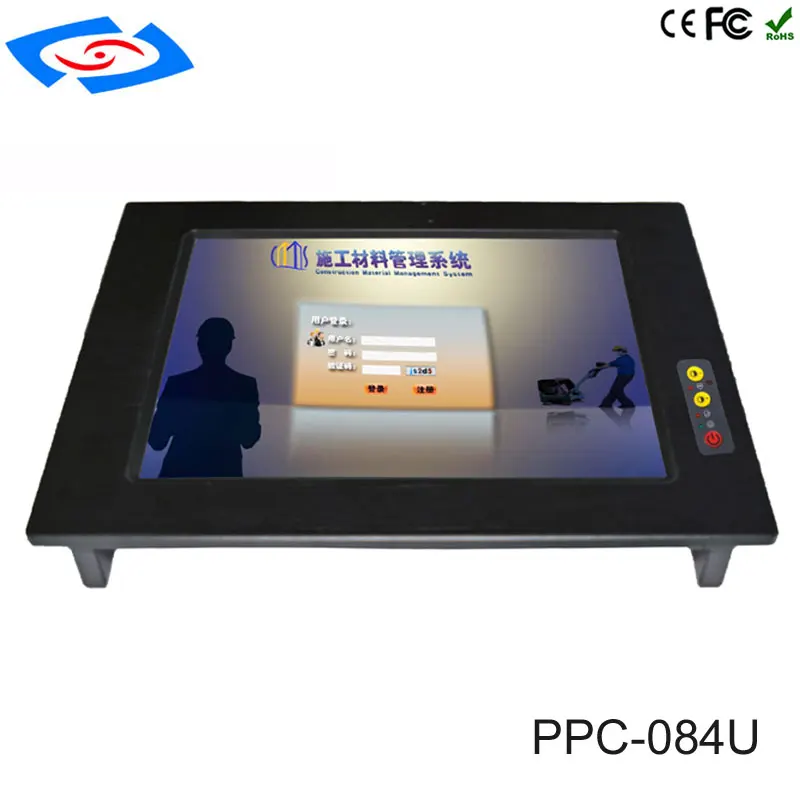

Model: PPC-084U
Standard: Intel Core I5-3317U/I7-3517U Processor, 8.4" Touch Screen,
800x600 Resolution,
RAM 4G SSD 32G (Win7 32Bits OEM),

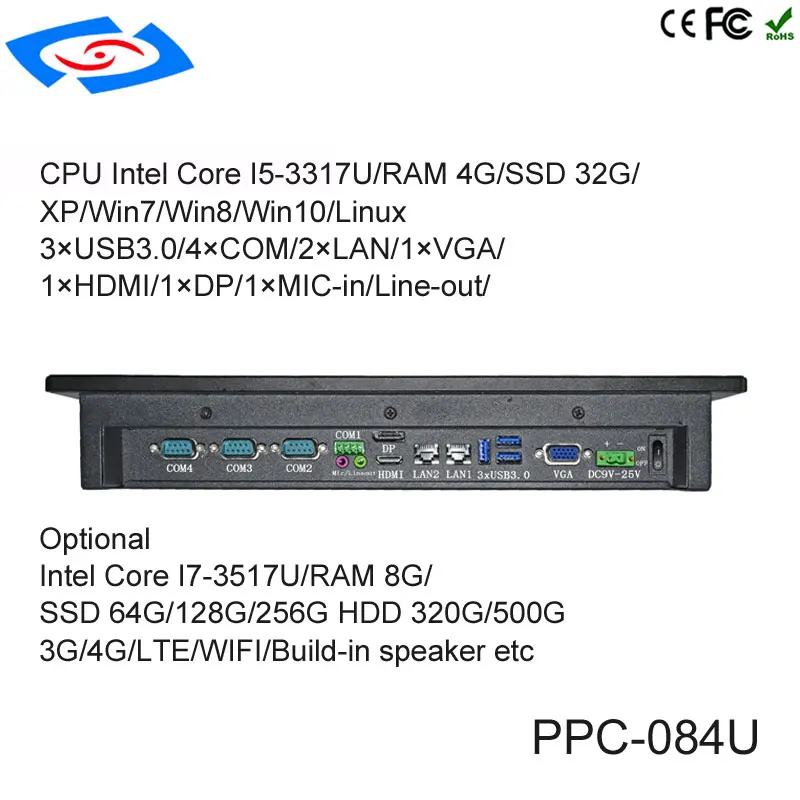

3xUSB3.0/4xCOM/2xLAN/1xVGA/1xHDMI/1xDP/1xMIC-in/Lin-out

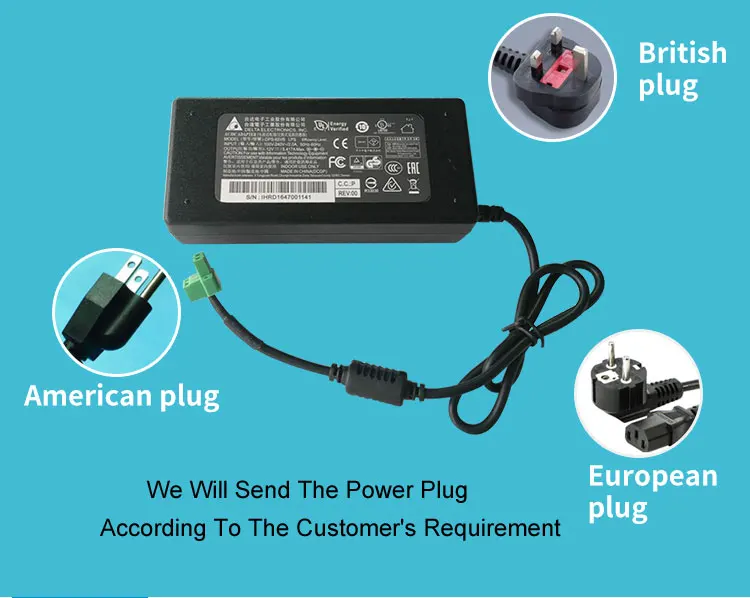

Accessories: 12V8A Power Adapter,(Optional European Plug British Plug Amercican Plug)
Embedded Mounting Buckle
Optional: RAM 8G,SSD 64G/128G/256G 3G/4G/LTE/WiFi Module.
HHD 320G/500G/1TB etc.
| Features | |
| Model Name | PPC-084U |
| Display | |
| Size | 8.4" |
| Resolution | 800times600 |
| Brightness | 400cd/m2(adjustable） |
| Contrast | 400：1 |
| Touch Screen | 4-wire AMT Resistive Touch Screen |
| LCD screen | industrial LCD display |
| System | |
| CPU | Intel Core I5-3317U Optional I7-3517U |
| Chipset | Intel QM77 |
| Memory | Onboard 4G Optional DDR3 4G Max8G |
| Storage | SSD 32G（Optional 64G/128G/256G） |
| System | XP/Win7/Linux/Win8/Win10 |
| I/O | |
| Lan | 2times10/100/1000Mbps RJ45 LAN,Lan chip intel 82583V/82579LM |
| Serial Port | COM1timesRS485/RS422（default RS485 with Optical isolation ） COM2-COM4timesRS232（optional add 2 RS232） |
| USB | 3timesUSB3.0,（optional add 4timesUSB2.0） |
| Display | Integrated intel HD Graphics，1timesVGA、1timesHDMI、1timesDP |
| Audio | Integrated ALC892, 1timesMIC-in,1timesLine-out（optional 2W Built-in speaker） |
| Others | 1times GPIO（optional） |
| Patulous Option | 1timesSIM，2timesmin-pcie (wifi/3G optional ） |
| Watchdog Timer | 1-255s，Programmable |
| Thermal methods | Fanless |
| Consumption | Less than 25W |
| Working Temp. | -40℃-80℃，Humidity 5%-90%（Non-condensing） |
| Storage Temp. | -40℃-80℃，Humidity 5%-90%（Non-condensing） |

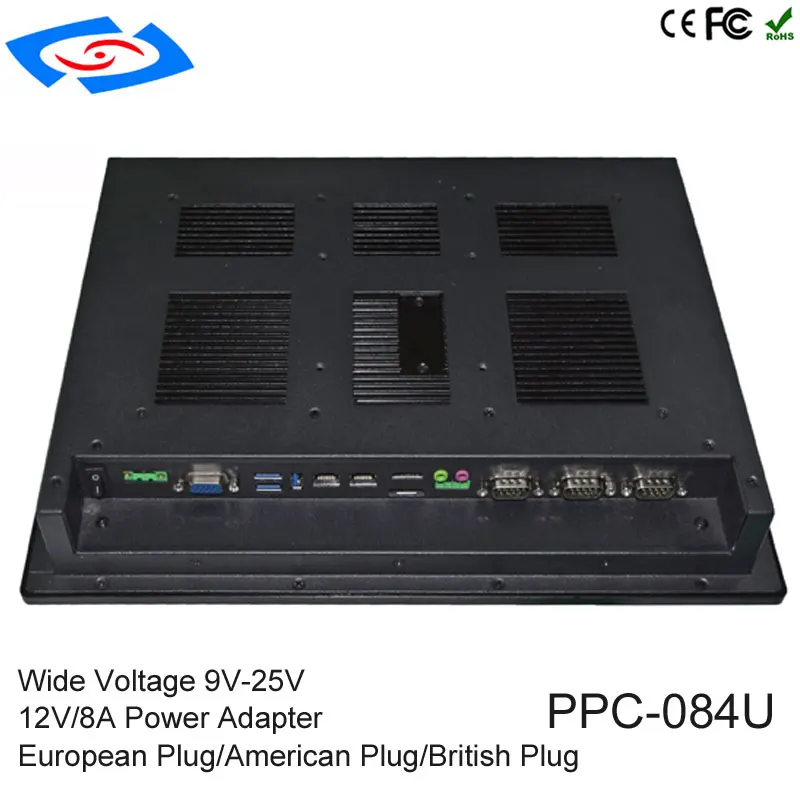

| Power | Wide voltage 9V～25V，12V/8A Power adapter |
| Switch ON/OFF | Switch 、Membrane Switch(remote control） |
| Shell Material | High-strength aluminum brushed pane;IP65；Spray painting |
| Color | Black |
| Net Weight | 1.95kg |
| Installation | Embedded mounted,VESA rack mounted |

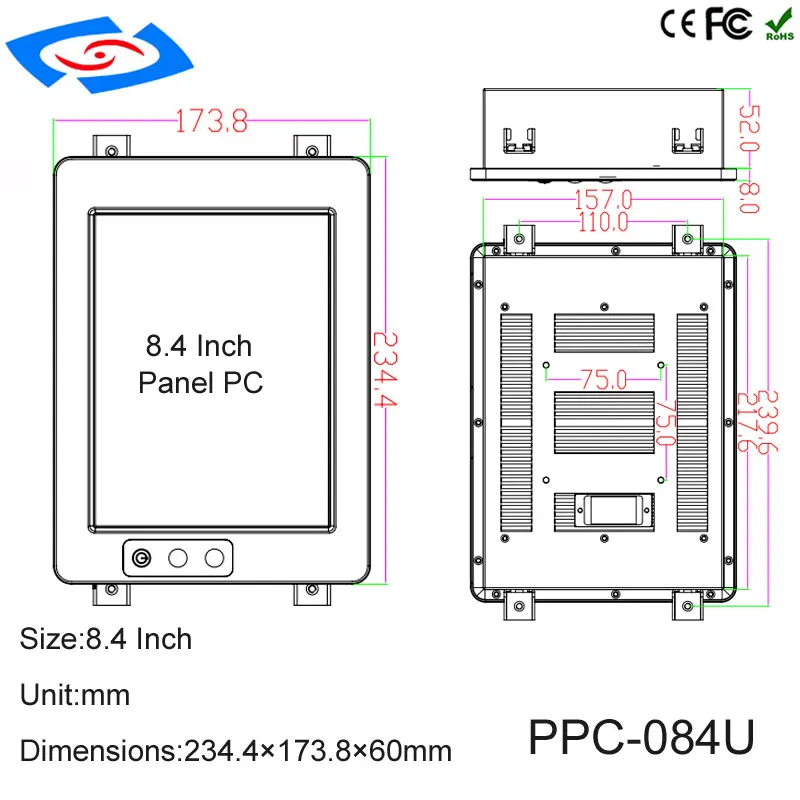

| Dimensions(mm) | 234.4times173.8times60 |
| Hole size（mm） | 218times157.4 |
| Warranty | |
| Warranty | 18 months |
| Order information | |
| Model Name | 8.4 inch AMT Resistive Touch Screen、Remote Control |
| Standard | Intel Core I5-3317U CPU/RAM 4G/SSD 32G (Win7 32 Bits OEM) /3timesUSB3.0 /4timesCOM 2timesLAN/1timesVGA/1timesHDMI/1timesDP/1timesMIC-in/Line-out |
| Accessories | 12V/8A Power adapter，Power line，4 sets embedded Install button,RS485 connector |
| Optional | Intel Core I7-3517U，RAM 8G /SSD:64G/128G/256G，3G/WIFI,Built-in speaker etc. |

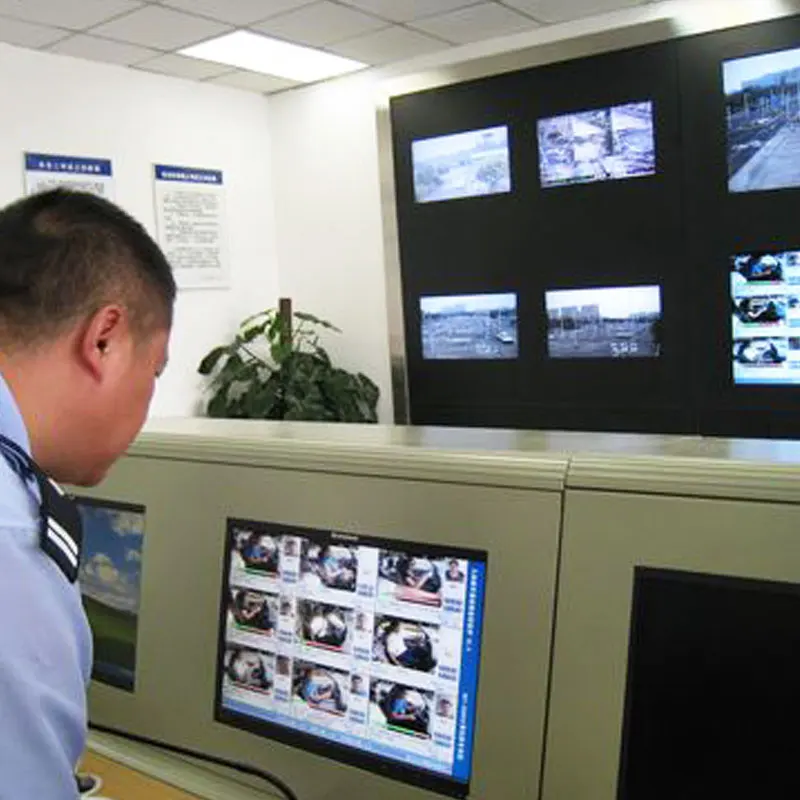

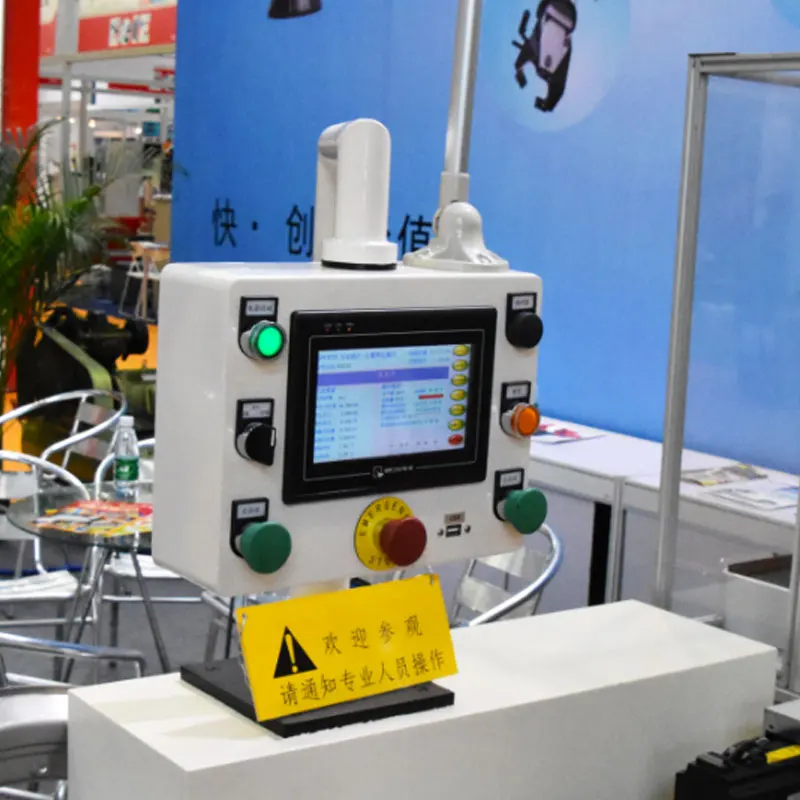

Applicable scene
About packing:
1,Modular packaging,all Panel PC are in box,scientific packaging design, each part carefully protected to ensure safe arrival.
About feedback:
1,If you are satisfied with panel PCS,please leave a positive feedback to us. Thanks in advance
2,If you are not satisfied for any reason,please contact us before leaving feedback,we will work with you to help you solving any problem until you are satisfied.
