Factory Store Industrial Mini PC With 2xMini PCIE 1xHDMI 2*LAN Intel Core P8600 processor industrial computer
 |
| Factory Store Industrial Mini PC With 2xMini PCIE 1xHDMI 2*LAN Intel Core P8600 processor industrial computer |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | |
| Product id | 33017627713 |
| Vendor | Shenzhen Ling Jiang Computer Technology Co., Ltd. |
| Category | Computer & Office - Mini PC |
Description :
Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store
Bulk Order !!!
More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.

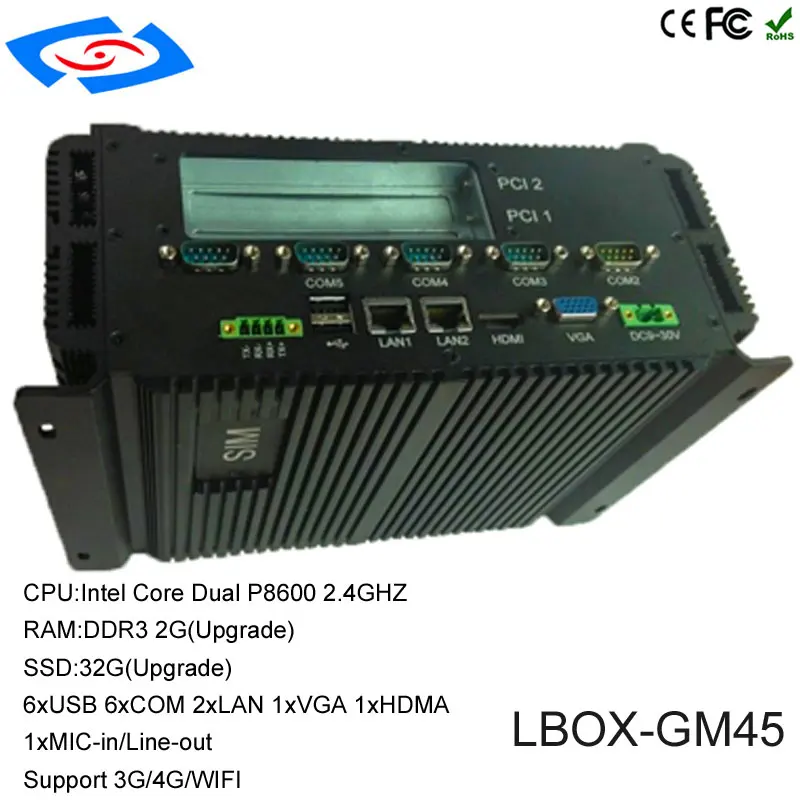

Factory Store Industrial Mini PC With 6 COM 1HDMI 2
LAN Black Color Intel Core P8600 Optional Pentium
P8700 Processor Box PC
Product Description

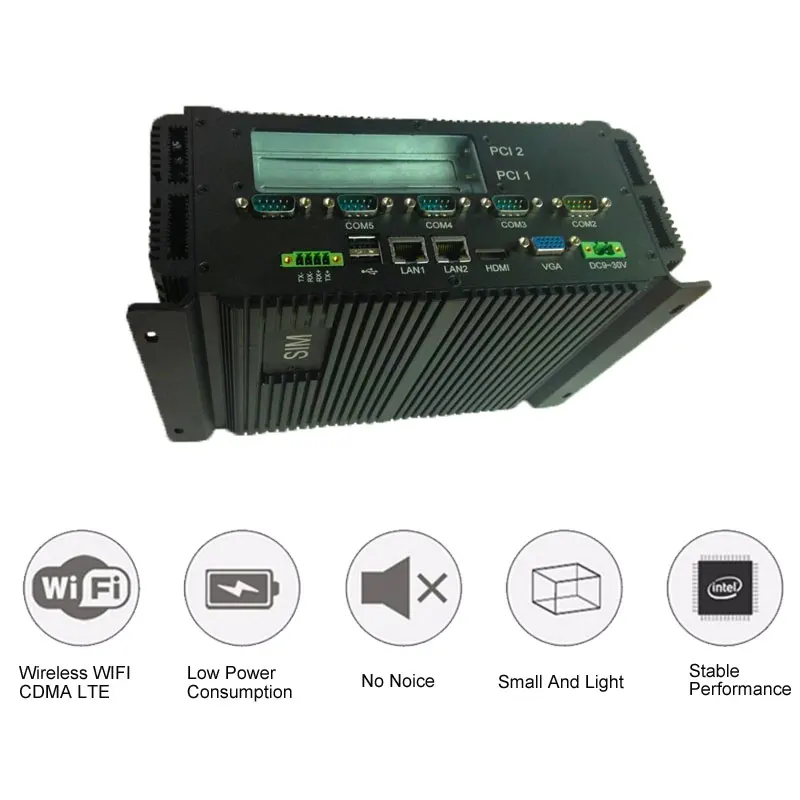

1.The Fanless industrial pc was made of brushed aluminum in beautiful shape,no cable design is good at shockproof, and high performance at low power consumption,can be used in hard environments. It supports wireless 3G and WIFI.
2.With the shockproof, moisture-proof, waterproof and dustproof (meet the NEMA IP65 standard), high temperature resistant, multisolt and easy to expand characteristics, so it iswidely used in industrial control,vehicle control, environmental control ,Miliary control,Network security,Digital signage,Date storge and other automation applications.
| Features | |
| Model Name | LBOX-GM45 |
| Mechanical | |
| Shell Material | Aluminum Alloy |
| Color | Black |
| IP Grade | IP63 |
| Net weight | 2.65kg |
| Thermal methods | Fanless |
| System | |
| CPU | Intel Core2 Dou P8600CPU，2.4GHZ，CPU Power Consumption 25W(Optional P8700 CPU) |
| Chipset | Intel GM45+ICH9M |
| Memory | RAM Onboard 2G Optional Onboard 4G DDR3 4G Max 8G |
| Storage | SSD 32GB Optional SSD 64G/128G/256G, Optional 2.5 Inch SATA HDD320G/500G/1TB etc |
| System | XP/Win7/Win8/Win10/Linux |
| I/O | |
| Lan | 2×10/100/1000Mbps RJ45 Gigabit Ethernet ，Integrated RTL8111E Gigabit Ethernet |
| Serial Port | COM1×RS232/485/422( Defaults to RS485)；COM2-COM5×RS232/RS485(Defaults to RS232);COM6×RS232 |
| USB | 6×USB 2.0 Port |
| Display | 1×VGA，1×HDMI,( Optional2 VGA)Integrated Intel GMA X4500 Chip, |
| Audio | 1×MIC-in，1×Line-out，Graphics Integrated ALC662 |
| Others | 2×PCI,1×8 Bits GPIO (Optional),1×LPT(Optional),1×PS/2 (Optional) |
| Consumption | Less Than 35W |
| Whatchdog Timer | 1-255s，Programmable |
| Expansion | 1×SIM, 2×Min-Pcie (Optional Wifi module.3G module) |
| Working Temp. | Working Temp -20℃-80℃,Working Humidity 5%-90%（Non-condensing） |
| Storage Temp. | Storage Temp -20℃-80℃,Working Humidity 5%-90%（Non-condensing） |
| Power | Wide voltage 9V～25V，12V8A Power Adapter |
| Switch ON/OFF | Thin-film switch |

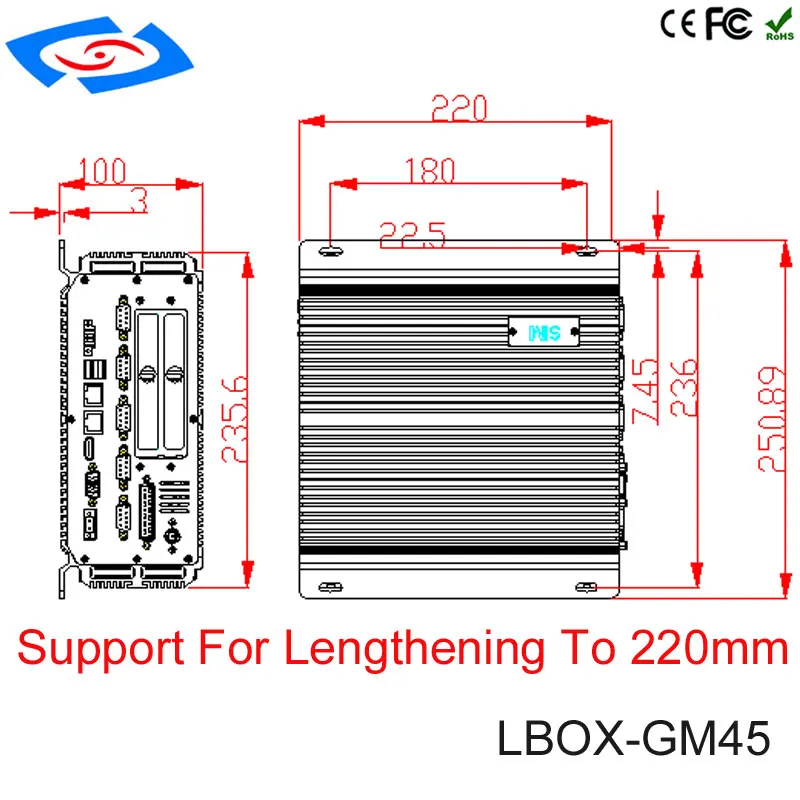

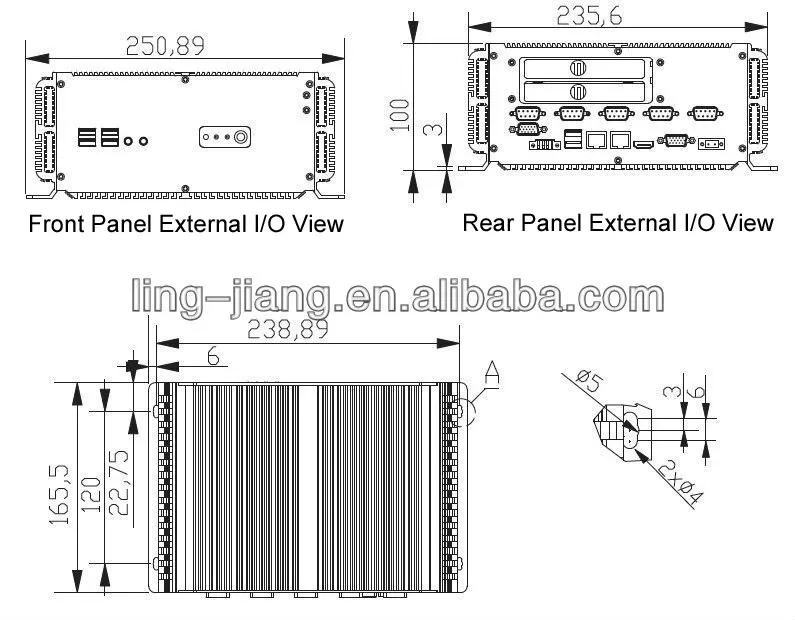

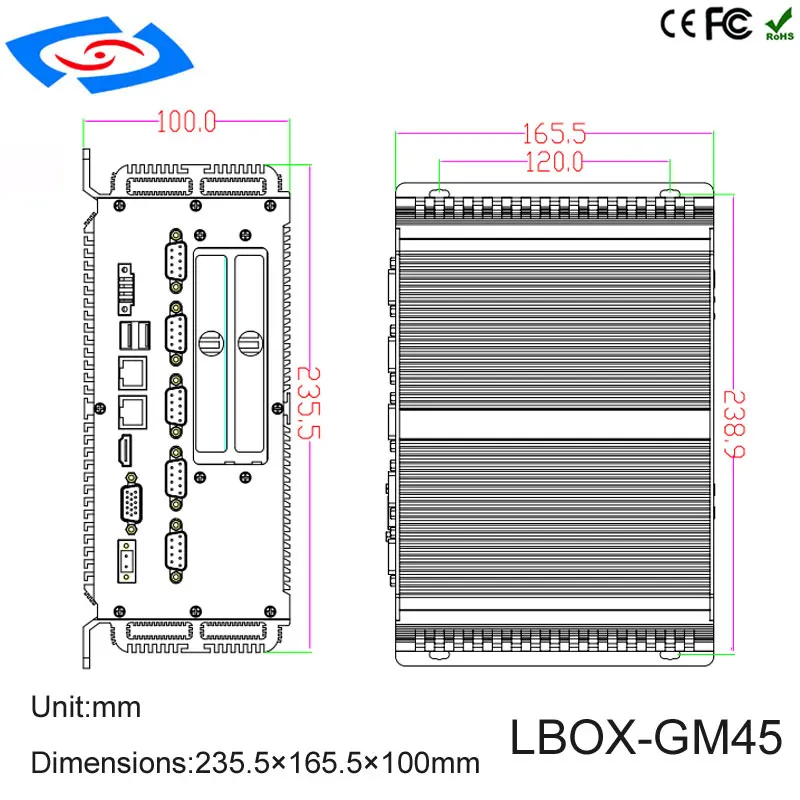

| Dimensions | 235.5×165.5×100（mm） |
| Hole Size | 238.9×120（mm） |
| Warranty | |
| Warranty | 12 months |
| Order information | |
| Model Name | LBOX-GM45 |

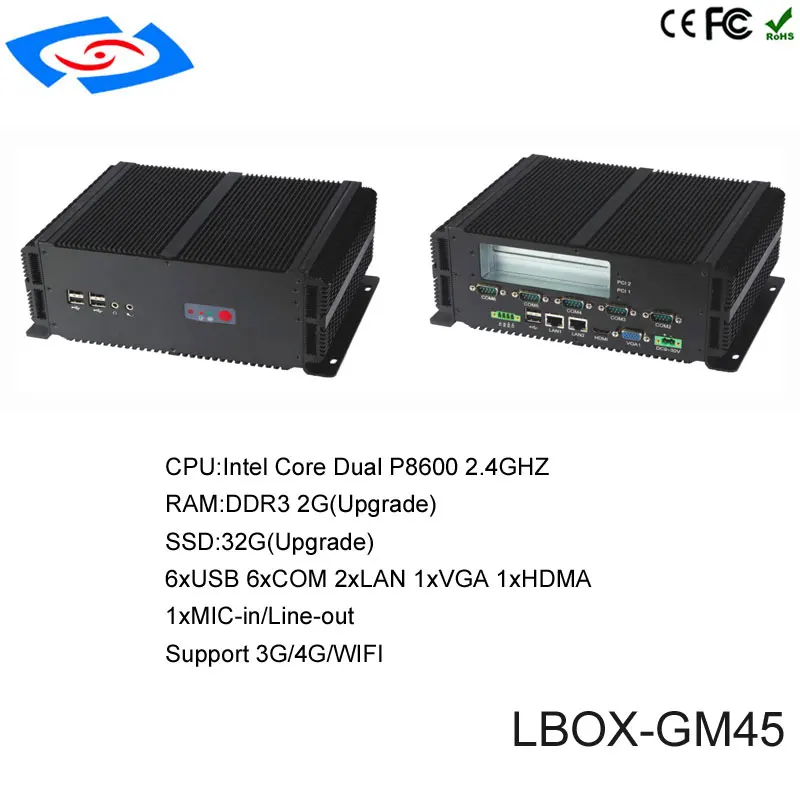

| Standard Configuration | Intel Core2 Dou P8600 CPU/2.4GHZ/RAM 2G /32G SSD (Win7 32 Bits OEM) /1xVGA/1xHDMI/2xLAN /1MIC-in/Line-out /6xUSB/6xCOM |
| Standard Accessories | 12V8A Power Adapter、RS485 Connector |
| Optional | Intel Core2 Dou P8700CPU /RAM 4G/ SSD 64G/128G/256G HDD 320G/500G LPT/PS2/GPIO/WiFi/3G/Built-in Speaker/2xVGA |
About packing:
1,Modular packaging,all Industrial Box PC are in box,scientific packaging design, each part carefully protected to ensure safe arrival.
About feedback:
1,If you are satisfied with panel PCS,please leave a positive feedback to us. Thanks in advance
2,If you are not satisfied for any reason,please contact us before leaving feedback,we will work with you to help you solving any problem until you are satisfied.
