2020 EGLOBAL new Industrial Fanless computer intel core i8 8250U i7 6567U DDR4 best mini pc with 6COM Ports GPIO LPT 2*RJ45 lan
 |
| 2020 EGLOBAL new Industrial Fanless computer intel core i8 8250U i7 6567U DDR4 best mini pc with 6COM Ports GPIO LPT 2*RJ45 lan |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -33% |
| Product id | 4000788778795 |
| Vendor | MiniComputer Factory Store |
| Category | Computer & Office - Mini PC |
Description :

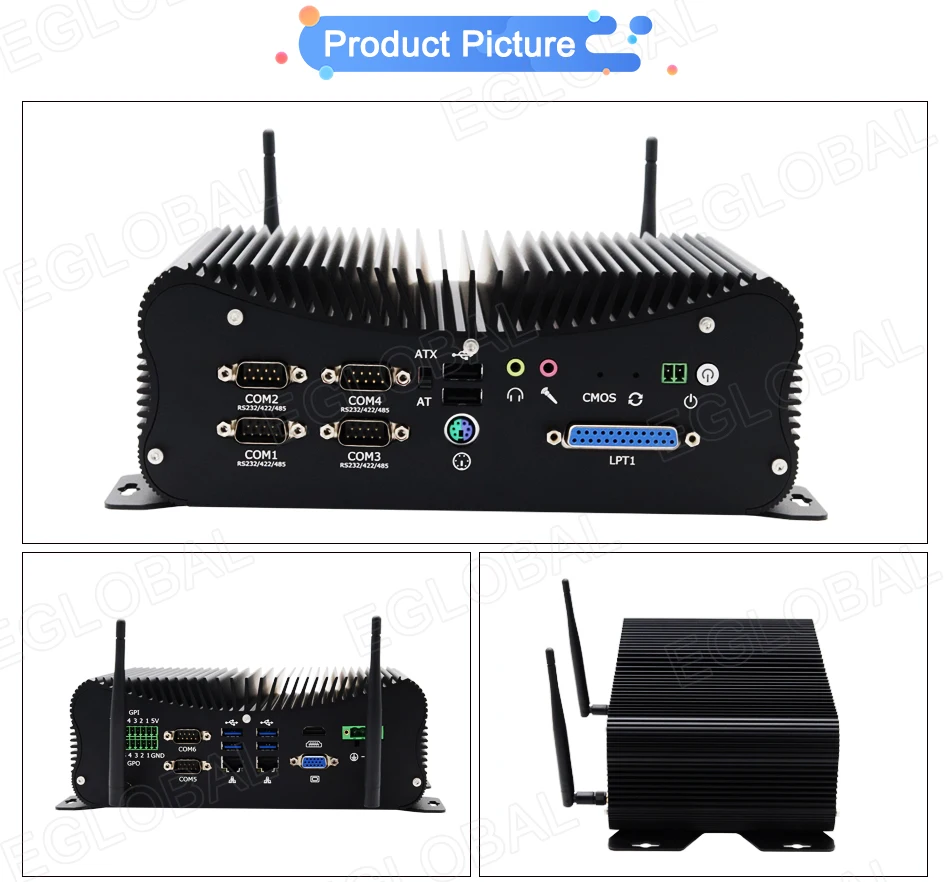

2020 EGLOBAL new Industrial Fanless computer intel core i8 8250U i7 6567U DDR4 best mini pc with 6COM Ports GPIO LPT 2*RJ45 lan Product highlight:

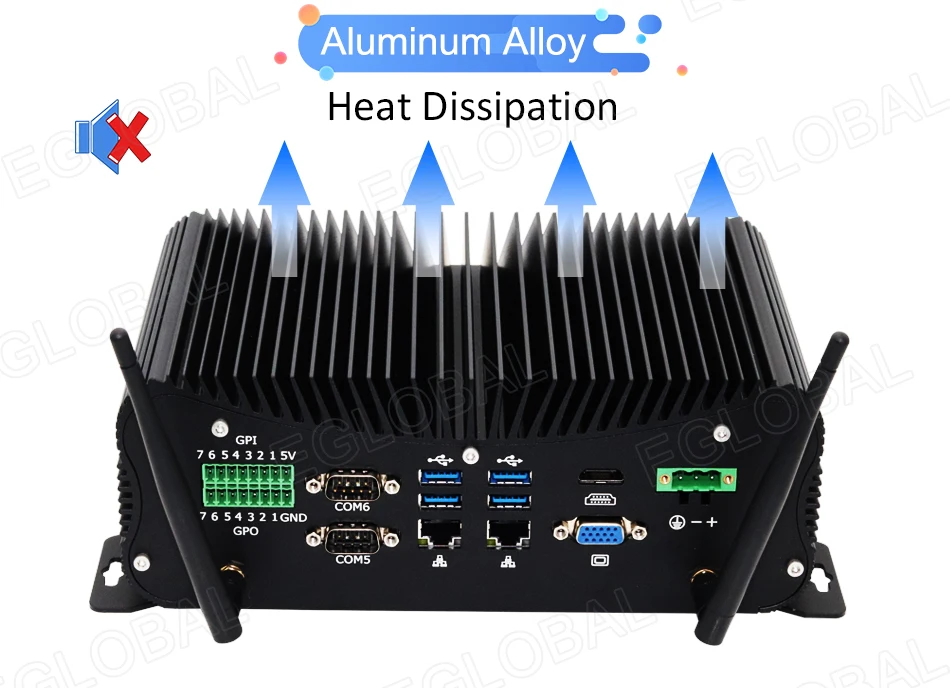

- Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipation, fit for industrial grade field, work as long as 24 hours.
- High-end Industrial PC less than 1% defective rate, super long lifetime and 3 years warranty.

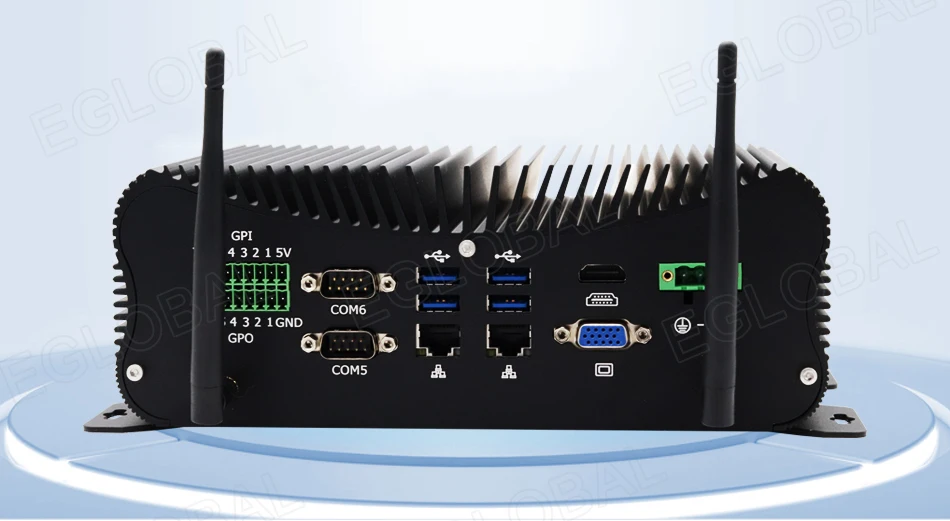

- 2 Intel i201/i211 Gigabit RJ45 LANs, 6 DB9 COM, 4 COM support RS422/RS485, PS/2, GPIO and LPT rich interfaces for different equipments.

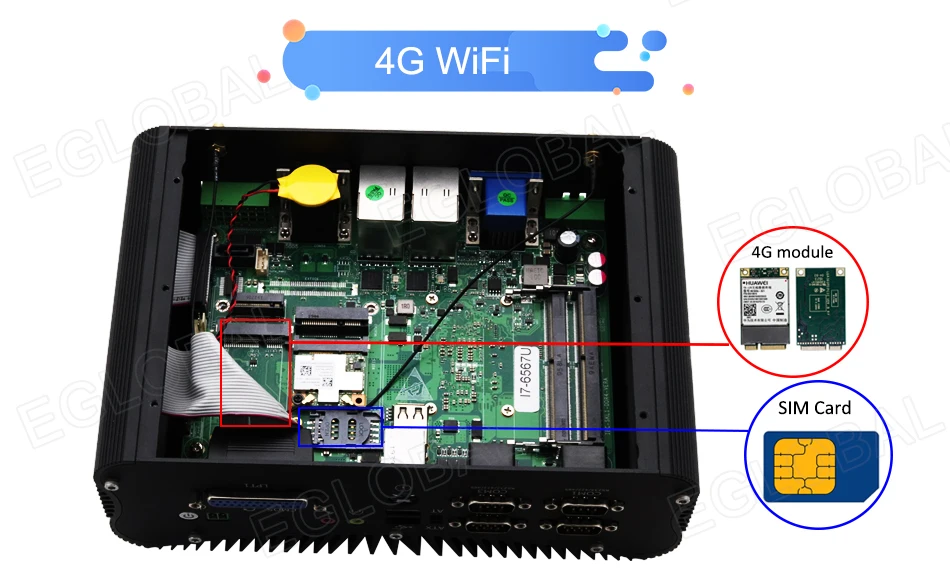

- One embedded SIM card slot onboard for 3G/4G Wi-Fi module.

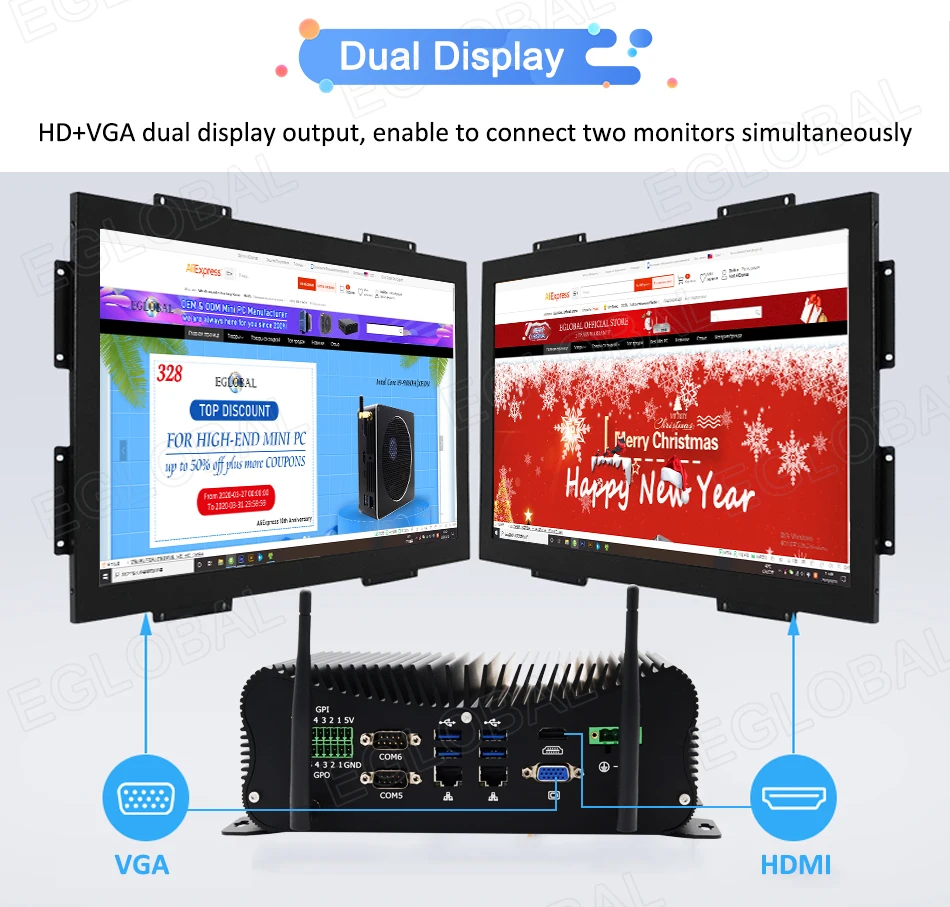

- Support VGA + HDMI dual display output synchronously.

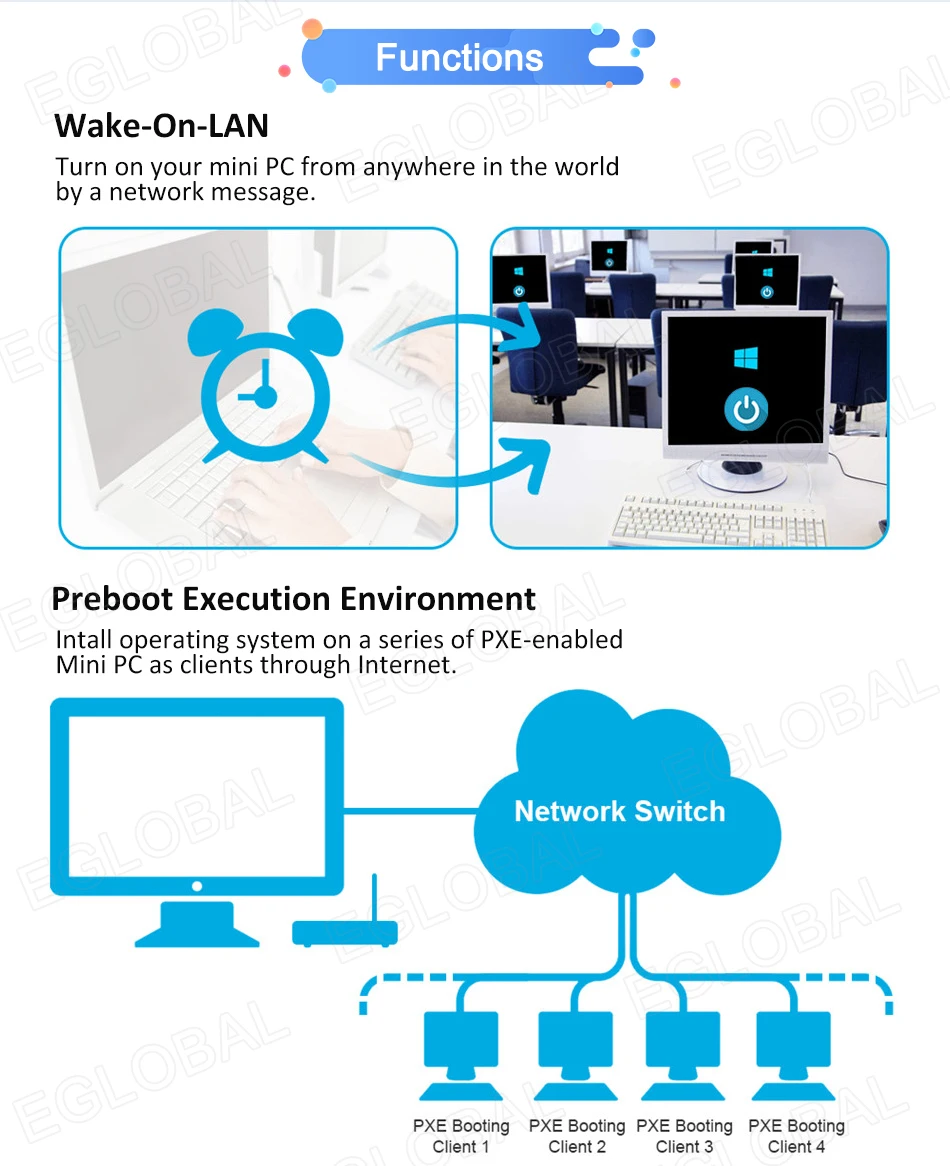

- Support Watchdog, AWAL, RTC, WOL, PXE, Reset function
| Basic Information: | |
| CPU | Onboard Intel 6th/7th/8th Gen Core i3/i5/i7 CPU Optional(can be customized in bulk) Onboard Intel Core i5-6360u/i7-6567u /i5-8360u(On-Hand) |
| TDP | Refer to CPU |
| BIOS | American Megatrends Inc. |
| Chipset | Refer to CPU |
| Memory | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB |
| OS | Windows 7/Windows 8/Windows 10/Linux, WES7/10 |
| PXE | YES |
| Audio | Intel High Definition Audio Controller |
| Network | Intel(R) i210/i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN |
| Video | Refer to CPU |

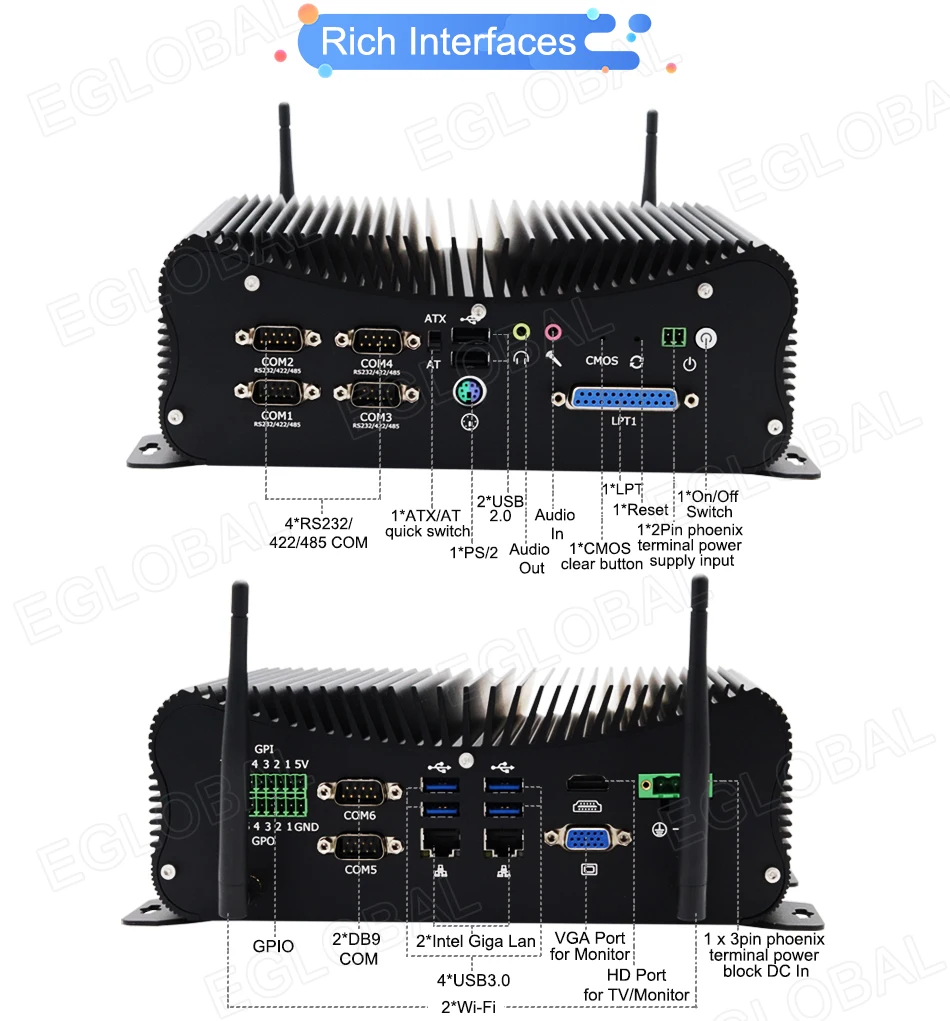

| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 3pin phoenix terminal power supply input, support 9~36V |
| Button | 1 ATX/AT quick switch |
| USB | 4 x USB3.0, 2 x USB2.0 |
| PS/2 | 1 x PS/2(keyboard and mouse 2 in 1) |
| Display | 1 x VGA, 1 x HDMI |

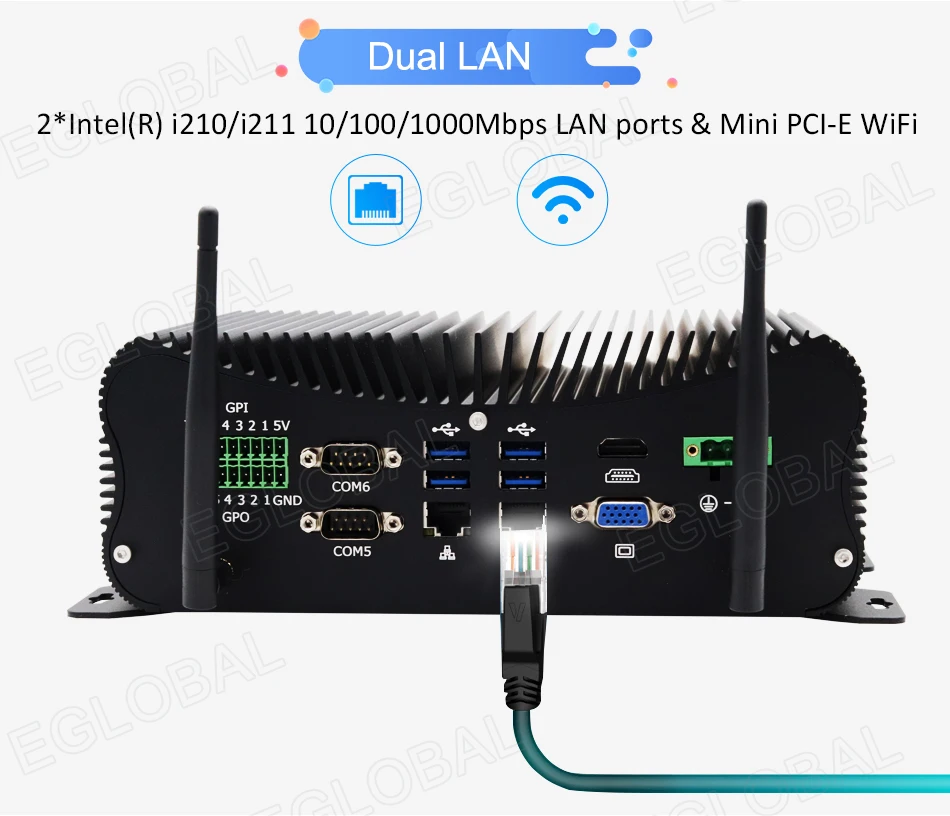

| LAN | 2 x Intel GbE RJ45 LAN |
| COM | 6 x DB9 COM(4xCOM support RS422/RS485) |
| GPIO | 1 x GPIO( 7pin input, 7pin output) |

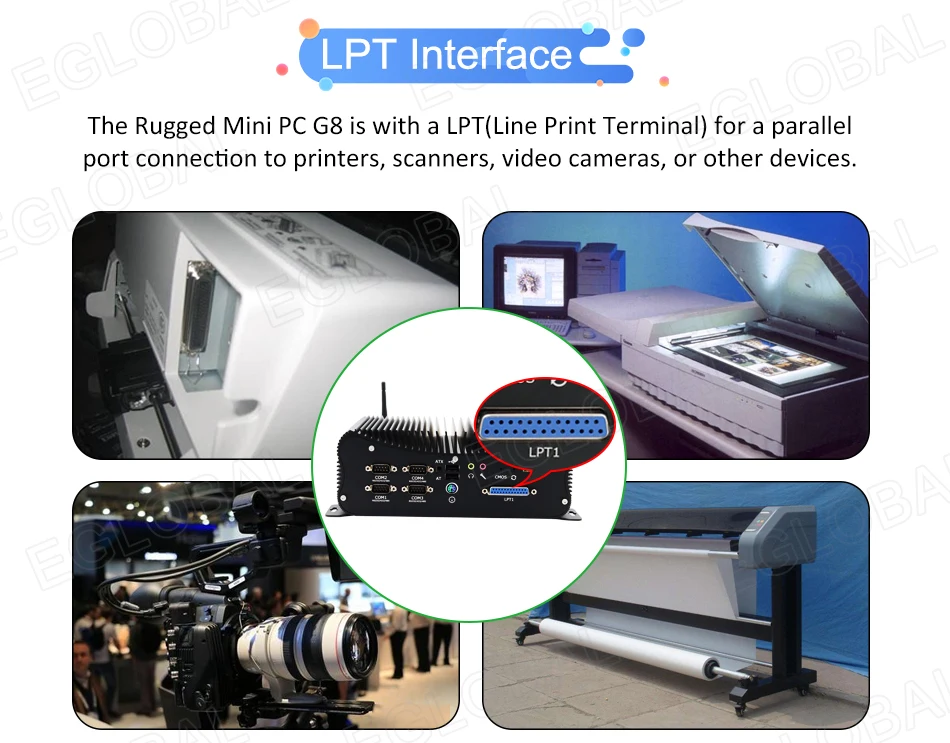

| LPT | 1 x LPT |
| Audio | 1 x MIC, 1 x SPK |
| SIM | 1 x embedded SIM card slot onboard |
| Others | 1 x Reset, 1 x CMOS clear button, 1 x 2pin Phoenix terminal power supply input |

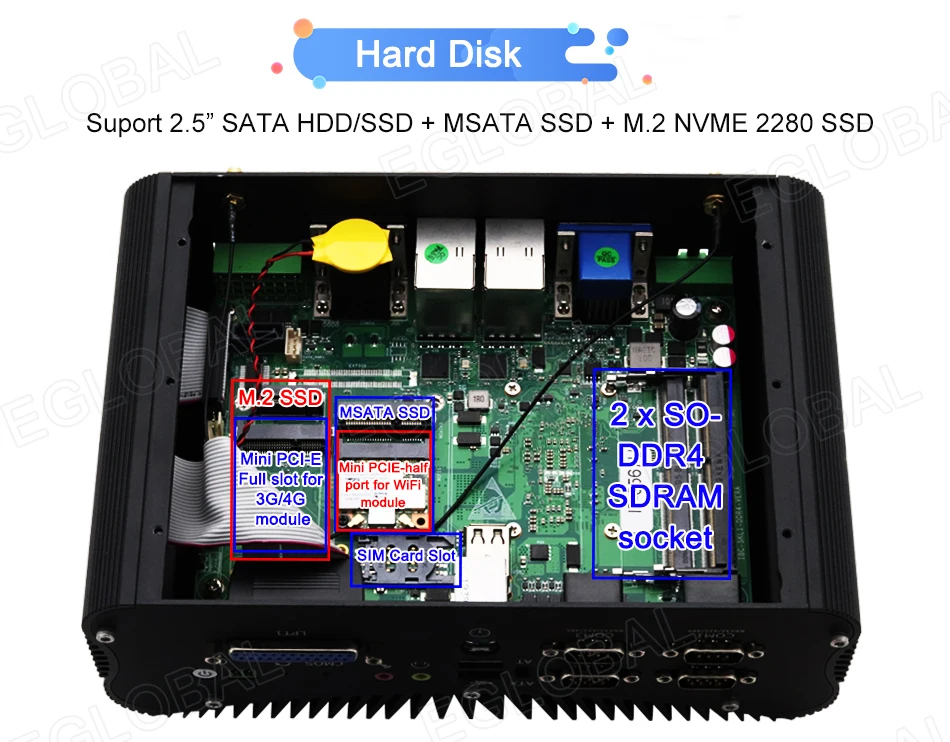

| Storage |
|
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1 x M.2 slot for NVME 2280 SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Wi-Fi |
|

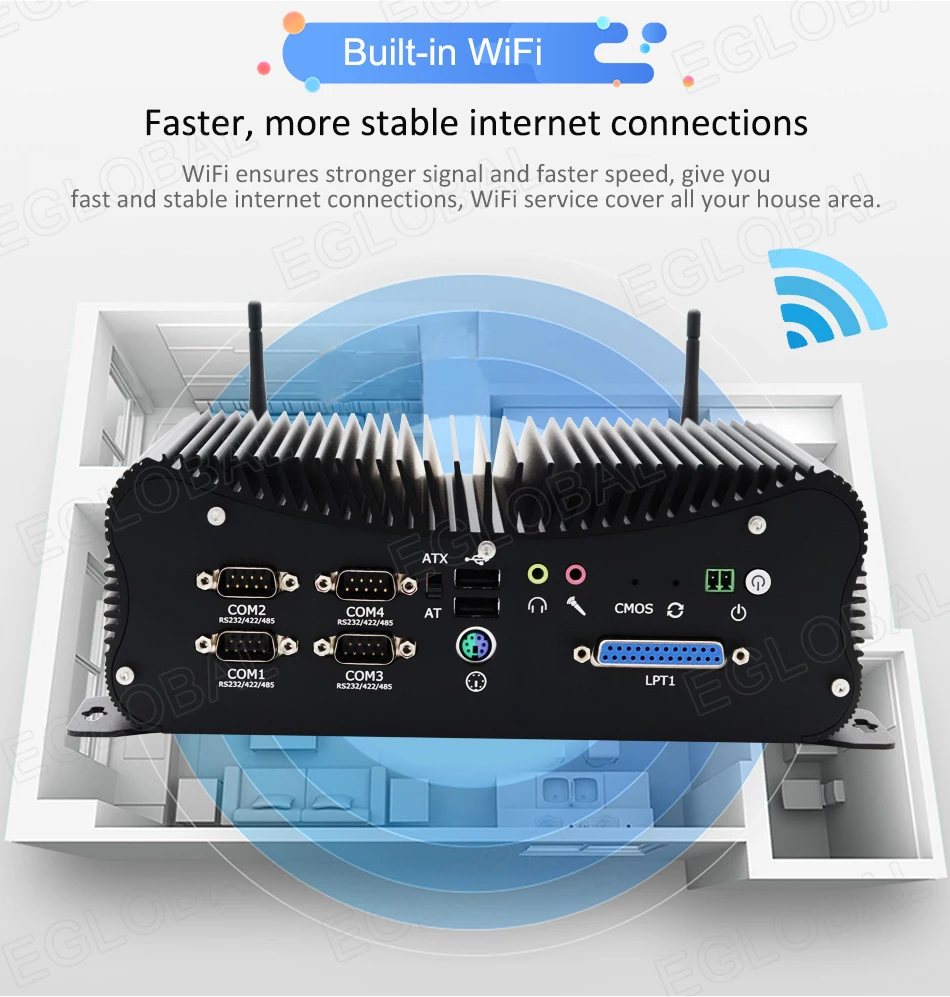

| Module | 1 x mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-full port for 3G/4G/Wi-Fi/Bluetooth module 1 x Extended IO, support LPC, USB, PCIE |
| Antenna | 2 x inner RF cables and 2 x external antennas |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +9V~+36V, recommend 12V/5A |
| Operating Temperature | -20/+60Centigrade |
| Storage Temperature | -30/+70 Centigrade |
| Storage Humidity | 10%~90%@30 Centigrade (non-condensing) |
| Product Dimension & Details | |
| Size | 249*150*86mm |
| Weight | NW 2.2KG, GW 3.5KG |
| Shell | Black color aluminum alloy(any customized color for bulk order) |

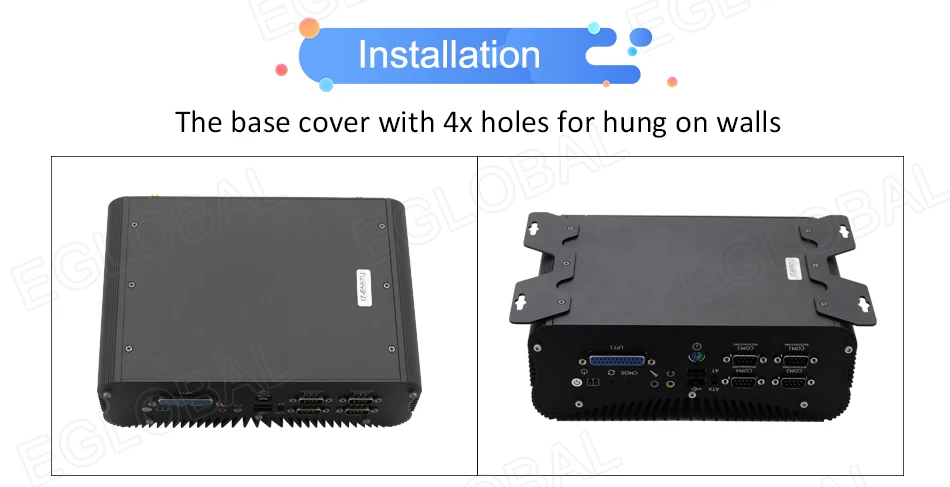

| Mounting | 4 mounting holes on case |
| Cooling Mode | Fanless |

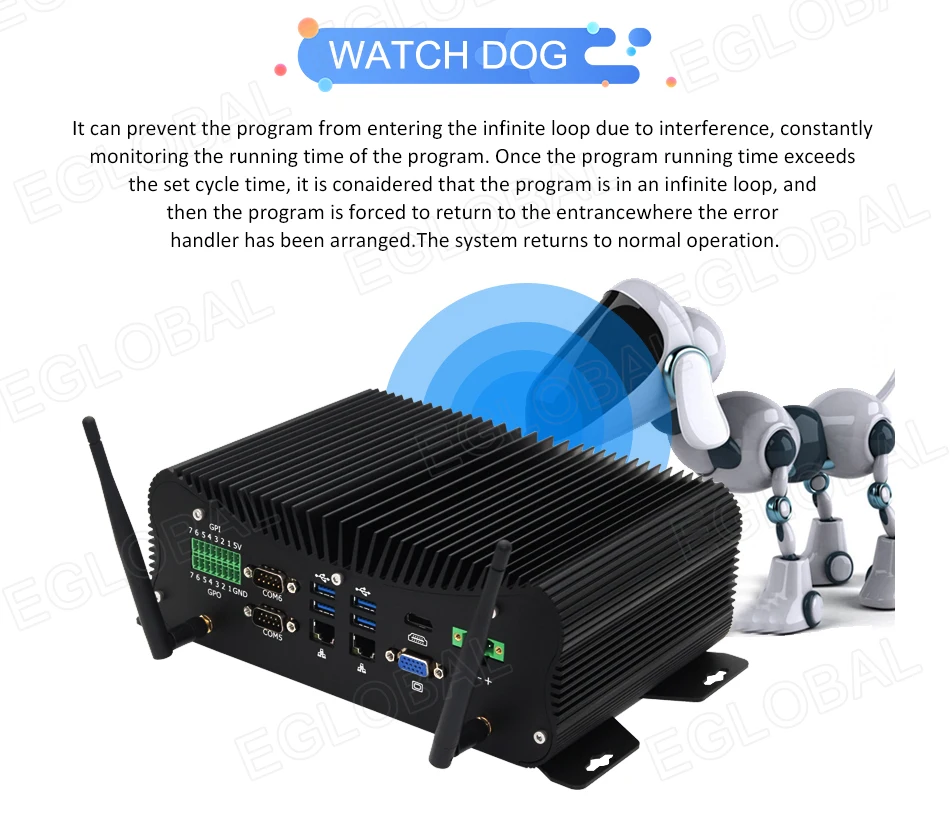

| Functions | Watchdog, One key reset, AWAL, RTC, WOL(ATX mode) |

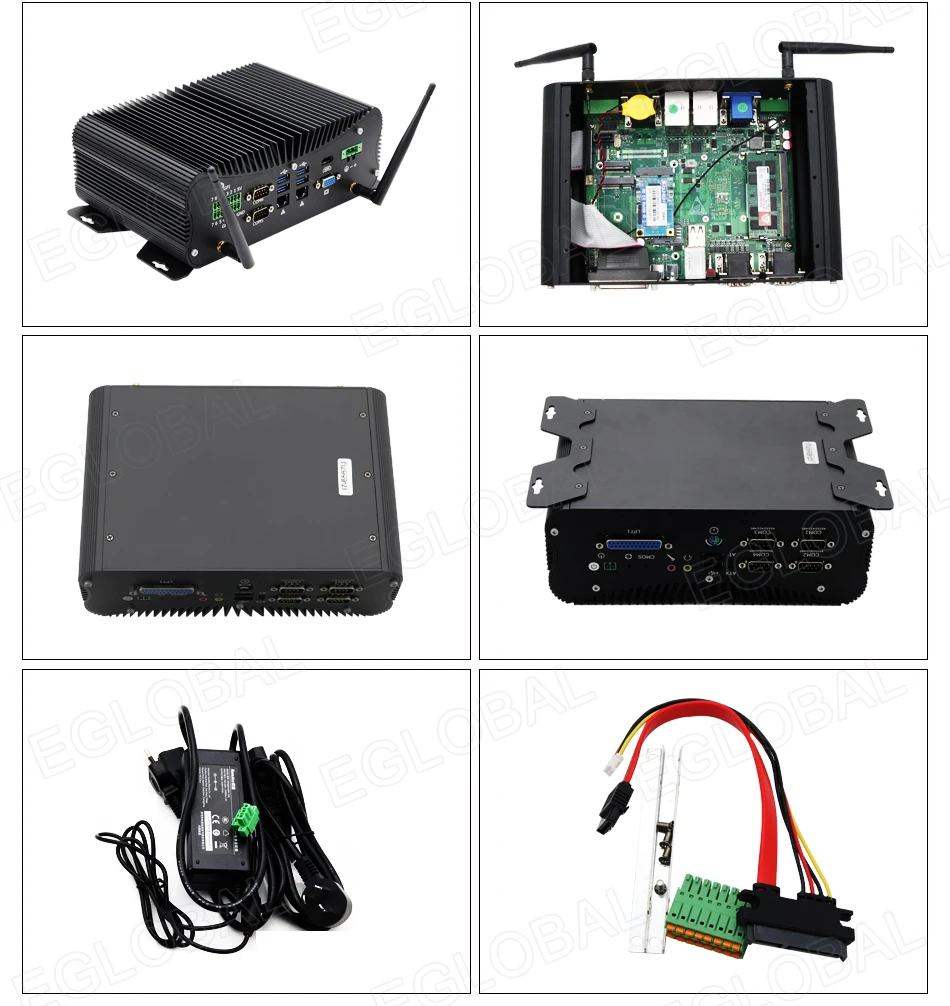

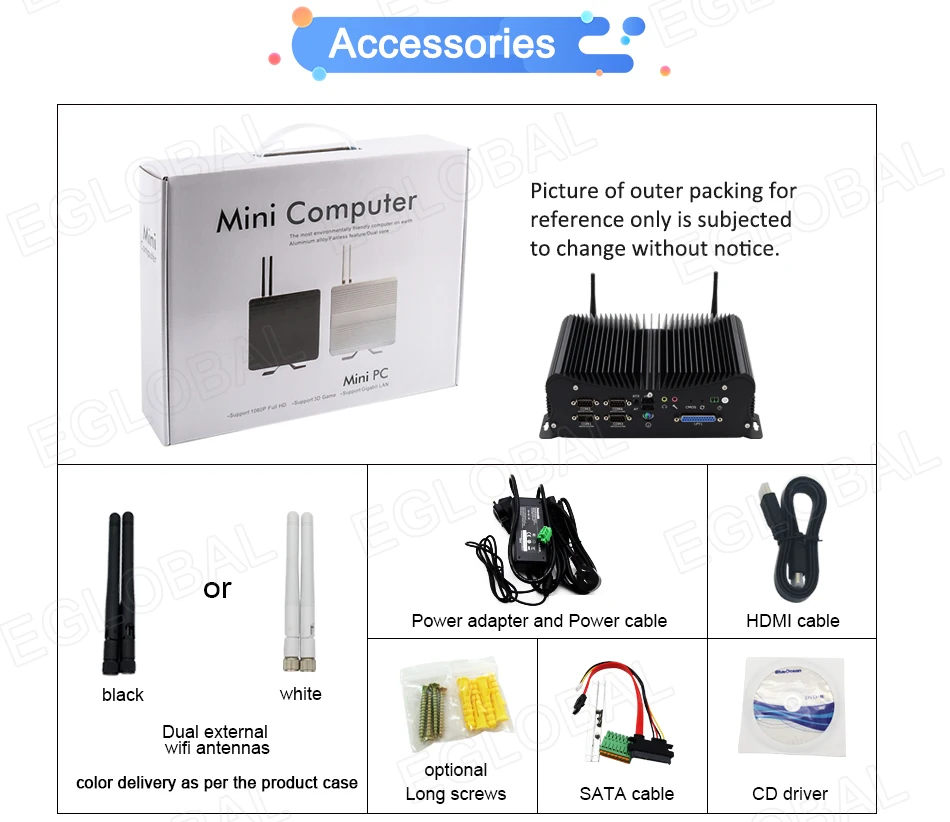

| Package Content |
|

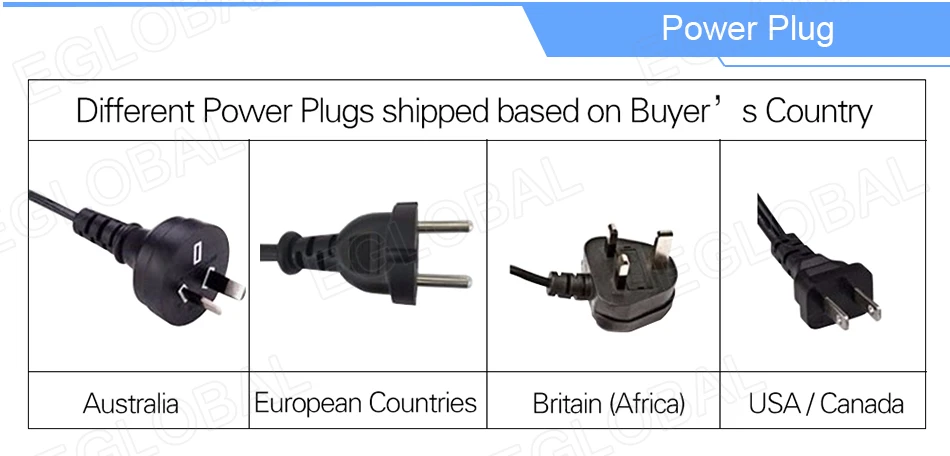

| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
| Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
DO NOT buy "no ram no storage" bundle if you are not Computer Expert, PC had best to use Samsung, SKhynix, Micron etc original brand accessories, We DO NOT compensate for buyer's own ram and hard drive.
