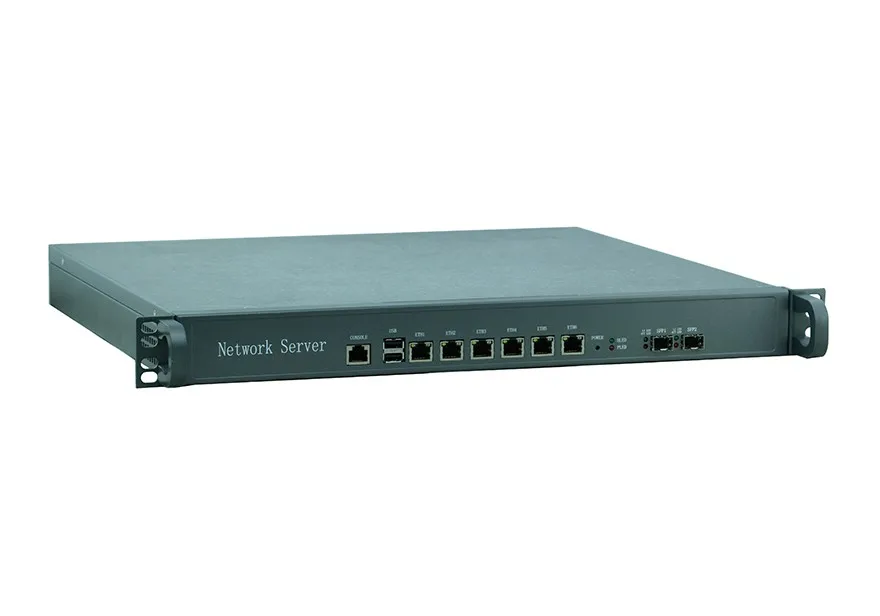

1U 6 Gigabit ethernet 2 SFP port support Intel LGA1155 i5 3470 3.2GHZ processor network router Firewall computer run pfsense
 |
| 1U 6 Gigabit ethernet 2 SFP port support Intel LGA1155 i5 3470 3.2GHZ processor network router Firewall computer run pfsense |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -8% |
| Product id | 32880286183 |
| Vendor | YZLONG TECHLOGY CO.,LTD |
| Category | Computer & Office - Mini PC |
Description :
Intel® Core™ i5-3470 Processor
(6M Cache, up to 3.60 GHz)
Ivy Bridge
Intel HD 2500 Graphics
| Model NO. | 1U380SF_H67SL_O |
| CPU | Support LGA1155 Intel Core™ i5-3470 3.2GHZ |
| Chipset | Using Intel® B75 Express Chipset |
| Memory | Dual-channel SO DDR3 1333/1066 memory slot, Max. up to 16GB |
| Display port | 1* DB15 VGA port |
| Network Function | Integrated 6* Intel 82583V 10/100/1000Mbps Ethernet |
| 2*Intel 82580 1000Mbps SFP+ Optical fiber | |
| Supporting Wake-on-LAN and PXE function | |
| Wireless Network | Providing 1* Mini-PCIE slot, support WIFI/3G module |
| Storage | Providing a 3.5/2.5inch SATA disk location |
| Support RAID 0,1,5,10 | |
| 1* MSATA slot, support SSD 6Gbps | |
| 1* CF card slot | |

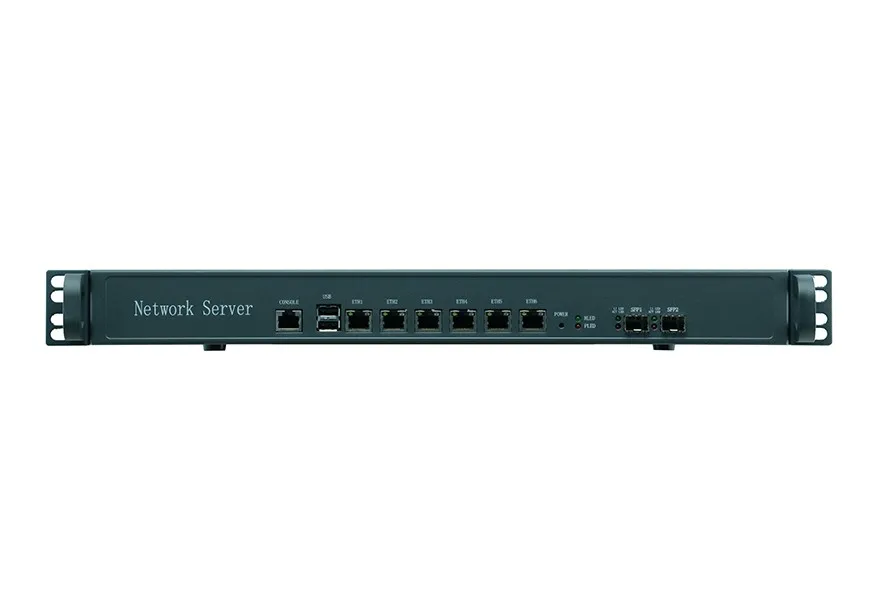

| Panel Port
| 1* COM(CISCO Standard Interface) |
| 2* USB 2.0 port | |
| 6* LAN port | |
| 2* Fiber socket | |
| 1* POWER Switch | |
| 1* POWER_LED, HDD_LED Indicator | |
| 1* VGA port (Rear panel) | |
| Cooling system | 1* CPUFNA, 2* SYSFAN |
| Operating Temp. | -0°C~50°C |
| Storage Temp. | -20°C~70°C |
| Humidity | 5%-95% (relative humidity; non-condensing) |
| Anti vibration | 5~300Hz/random operating |
| Power | ATX Power supply |
| Installation | 1U chassis frame |
| Material and Process | Surface sandblasting oxidation process(Silver gray) |
| Size | 430mm(L)* 380mm(W)* 46.2mm(H) |
back I/O:
Console
USB*2
Lan*6+2*SFP 82580DB
VGA
With Fan
Factory direct sale, We ensure the best price , best quality! Welcome OEM ODM! Chassis can be customized, motherboard , front panel PVC LOGO , software can be OEM customized.
Equipment can be installed by RouterOS latest official stable version v5.25 Genuine clone can upgrade into L6 authorized official 6.x, you can reinstall. Can choose the front PVC panel without any logo, Intel B75 chip , 6 * 1000M intel pci-e network port , 1-2G/DDR3 , 4GB-8GB industrial SSD, ROS L6 authorized 6.x can upgrade.
Configured
CPU:I5-3470 3.2GHZ
RAM:2G/4G/8G
DISK CAPACITY:16G/32G/64G/500G
OS:NO
Parameters
Intel Core I5 3470
The main parameters
Model
Intel core I5 3470
Chip factory
Intel
Interface Type
LGA 1155
Core Type
Ivy Bridge
Production
22 nm
Cores
Quad-core
Threads
Quad thread
Frequency
3.2GHz
Three cache
6M
Function parameters
Shows the core model
Intel HD Graphics 2500 Core Graphics
Support memory frequency
DDR3 1333/1600MHz
Working Power
77W
Other parameters
Properties Keyword
64-bit processor, Quad-core processor
Detailed configuration
B75 82583V
NIC : intel PCI-E 1000M 6 * 82583V+2*SFP 82580DB
Motherboard : intel B75 chip supports a full range of 1155 -pin CPU including XEON E3 series
Power : Genuine best quality supply rated power 250 watts maximum power of 300 watts ( not small HTPC power which can ensure I7 series CPU power)
Software: Support ROS/RouterOS, Mikrotik,PFSense,Panabit,Wayos with intelliegent flowcrl,Monowall,Radius_Manager, BYTEVALUE, netzone webcache, hi-spider, ikuai8, and so on
Built- SSD hard drive bracket, you can directly install the SSD
The new chassis, new blue plate
RJ45 standard COM port , compatible with cisco standard , built-in standard SATA interface , minipci-e interface can be installed SSD, scalable wifi wireless card. With VGA easy debugging (optional without VGA interface ) , front 2 USB interfaces , No need disassemble the chassis, and can reinstall the system ( providing tutorials) , optional 2.5-inch hard drive, Can contact us for different configuration requested by you.
Standard 1U size : 430mm(L)*380mm(W)*46.2mm(H)
About the transportation:
1.DHL,UPS,Fedex,TNT or EMS is available for shipping.
We are shipping to worldwide except some countries which due to custom issue: Brazil, Turkey, Russia and far area and we can not accept for additional charge for far area fees.
2.Import duties, taxes and charges are not included in the item price or shipping charges.These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to placing.
and the goods as other item name ,or specify and value for custom, please inform us when making order.
3.we accept Drop shipping, the buyer can't see any information about us when they received package,
we are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
